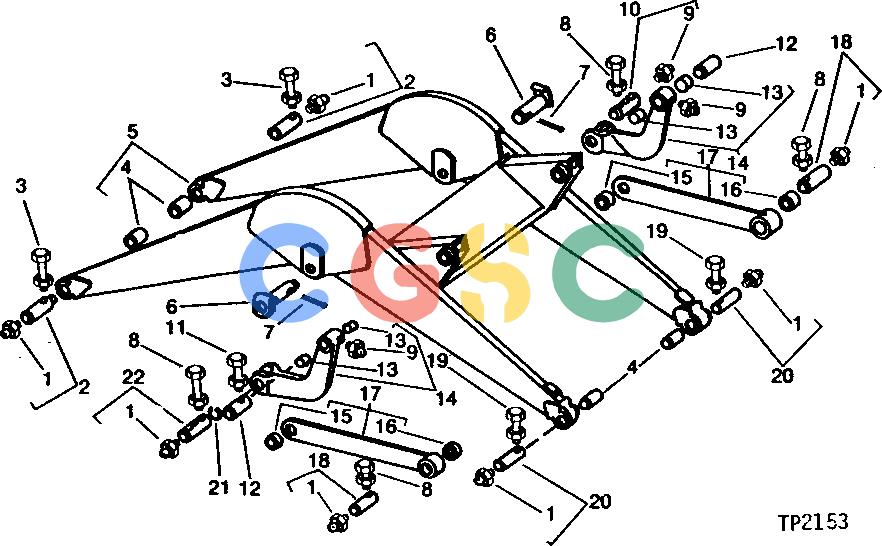

约翰迪尔零件查询401C - BACKHOE, LOADER LOADER BOOM [02C22]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 547 次

Pos.	Part No	Qty	Parts name	Comments
1.	JD7759	[7]	Lubrication Fitting	1/8", STRAIGHT
2.	AU11100	[2]	Pin Fastener
3.	19H2855	[2]	Cap Screw	3/8" X 3-1/4"
3.	T11234	[2]	Lock Nut	3/8"
4.	U12817	[4]	Bushing
5.	BU40112	[1]	Loader Boom	INCLUDES BUSHINGS
6.	AU11658	[2]	Pin	UPPER BOOM CYLINDER
7.	11H223	[2]	Cotter Pin	3/8" X 2"
8.	19H2023	[4]	Cap Screw	3/8" X 3-1/4"
8.	T11234	[4]	Lock Nut	3/8"
9.	JD7797	[3]	Lubrication Fitting	1/4", STRAIGHT
10.	AU11661	[1]	Pin	LEVER TO BUCKET LINK, L.H.
11.	19H2023	[2]	Cap Screw	3/8" X 3-1/4"
12.	U13484	[2]	Pin Fastener	LEVER TO BOOM
13.	U13486	[4]	Bushing
14.	AU11650	[2]	Lever	INCLUDES BUSHINGS AND GREASE FITTING
15.	U11121	[2]	Bushing
16.	Y1951CU	[2]	Bushing
17.	AU11651	[2]	Lever	INCLUDES BUSHINGS
18.	AU11099	[2]	Pin Fastener	LINK TO BUCKET
19.	19H3520	[2]	Cap Screw	1/2" X 3-1/4"
19.	BP12214	[2]	Lock Nut	(SUB FOR U12622)
20.	AU11942	[2]	Pin Fastener
21.	U16068	[1]	Snap Ring
22.	AU40455	[1]	Pin Fastener	LEVER TO BUCKET LINK, R.H.
