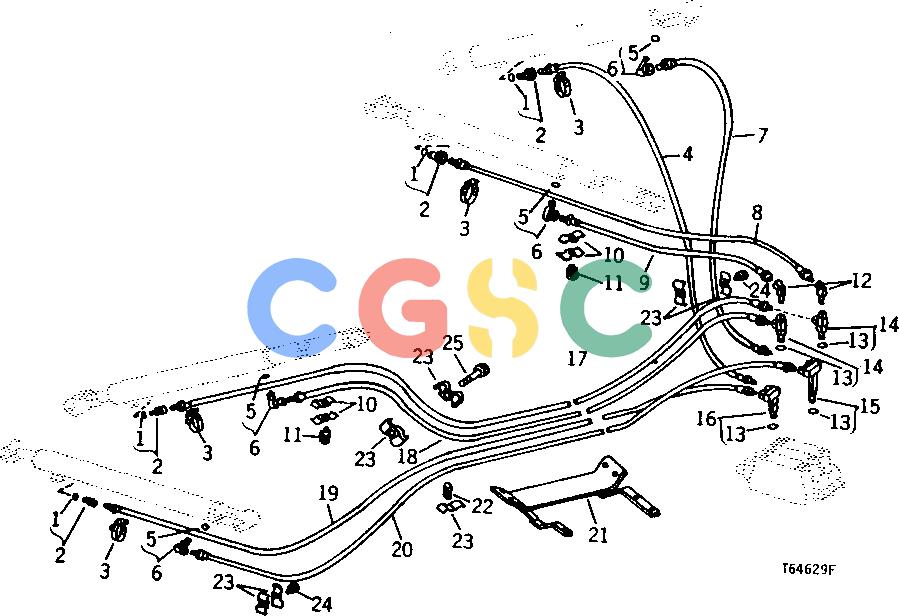

约翰迪尔零件查询401C - BACKHOE, LOADER LOADER OIL LINES AND FITTINGS - BOOM AND BUCKET CIRCUIT [02D07]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 260 次

Pos.	Part No	Qty	Parts name	Comments
1.	R26375	[4]	O-Ring	(SUB FOR U10778)
2.	AU11569	[4]	Adapter	STRAIGHT
3.	AR21841	[4]	Clamp
4.	AU40736	[1]	Hydraulic Hose - Fabricate	1270 MM LONG (3/8" X 50"), R.H. BOOM CYLINDER DROP
5.	R26375	[4]	O-Ring
6.	AN31756	[4]	Elbow Fitting
7.	AU40735	[1]	Hydraulic Hose - Fabricate	940 MM LONG (3/8" X 37"), BOOM RAISE, R.H.
8.	AU40738	[1]	Hydraulic Hose - Fabricate	1880 MM LONG (3/8" X 74"), BUCKET ROLLBACK, R.H.
9.	AU40737	[1]	Hydraulic Hose - Fabricate	1372 MM LONG (3/8" X 54") BUCKET DUMP, R.H.
10.	U13055	[8]	Clamp
11.	19H2633	[4]	Cap Screw	3/8" X 1-1/2"
11.	12H304	[4]	Lock Washer	3/8"
11.	14H812	[4]	Nut	3/8"
12.	JD174	[2]	Elbow Fitting
13.	R26906	[4]	O-Ring
14.	AU11583	[2]	Fitting
15.	AU11582	[1]	Adapter
16.	AU11580	[1]	Adapter
17.	AU40741	[1]	Hydraulic Hose - Fabricate	4216 MM LONG (3/8" X 166") BUCKET ROLLBACK, L.H.
18.	AU40740	[1]	Hydraulic Hose - Fabricate	3632 MM LONG (3/8" X 143") BUCKET DUMP, L.H.
19.	TY3005	[1]	Hydraulic Hose	3048 MM LONG (3/8" X 120") BOOM DROP, L.H. (SUB FOR AU12896)
20.	TY3004	[1]	Hydraulic Hose	2743 MM LONG (3/8" X 108") BOOM RAISE, L.H. (SUB FOR AU40739)
21.	........	[1]	Guide	( AU40742 USE IF AVAILABLE)
22.	19H3065	[10]	Cap Screw	3/8" X 2"
22.	12H304	[10]	Lock Washer	3/8"
22.	14H812	[10]	Nut	3/8"
23.	U13055	[14]	Clamp
24.	19H2633	[3]	Cap Screw	3/8" X 1-1/2"
24.	12H304	[3]	Lock Washer	3/8"
24.	14H812	[3]	Nut	3/8"
25.	19H3239	[1]	Cap Screw	3/8" X 1-1/4"
