约翰迪尔零件查询401C - BACKHOE, LOADER LOADER BUCKET CYLINDER [02D10]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 564 次

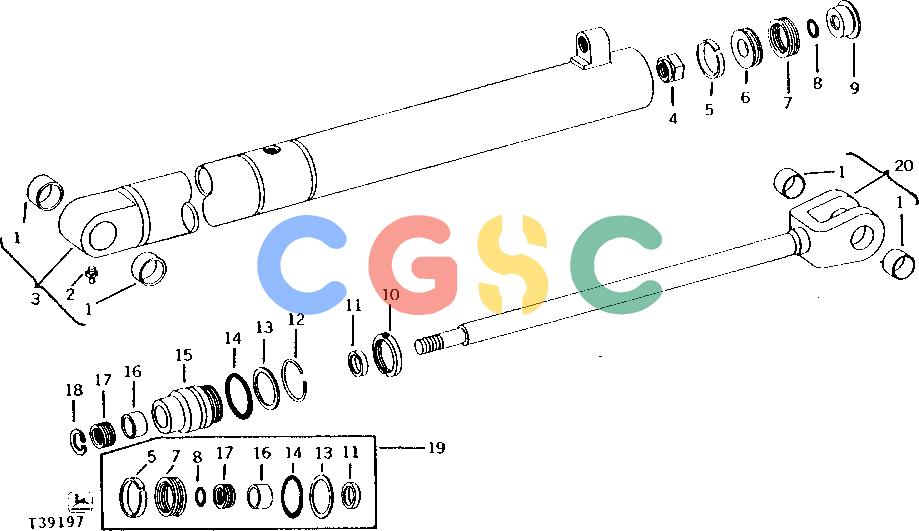

Pos.	Part No	Qty	Parts name	Comments
1.	U13064	[4]	Bushing
2.	JD7797	[1]	Lubrication Fitting	1/4"
3.	AU40459	[1]	Hydraulic Cylinder Barrel	(SUB AT58109) (ALSO ORDER (2) AR21841)
3.	AT58109	[1]	Extension
4.	P45231	[1]	Lock Nut
5.	U17335	[1]	Wear Ring	(A)
6.	U17340	[1]	Piston	(A)
7.	T54815	[1]	Packing	(A) (SUB FOR U12965, THIS APPLICATION) (SUB FOR R72821)
8.	R495R	[1]	O-Ring	(A)
9.	U17339	[1]	Piston	(A)
10.	U10290	[1]	Nut
11.	L1937C	[1]	Seal
12.	C11739	[1]	Snap Ring
13.	R81194	[1]	Back-Up Ring	(SUB FOR U13461, THIS APPLICATION)
14.	F1870R	[1]	O-Ring
15.	U42644	[1]	Hydr. Cylinder Rod Guide	(ALSO ORDER U41824)
16.	U41824	[1]	Wear Ring
17.	R76808	[1]	Packing	(SUB FOR T37124)
18.	N107859	[1]	Snap Ring	(SUB FOR J17817)
19.	AR105453	[1]	Hydraulic Cylinder Kit	(SUB FOR AT35935 AND AR96499)
20.	AU40463	[1]	Rod
...	AU40458	[1]	Cylinder	(SUB AT58108) (ALSO ORDER (2) AR21841)
...	AT58108	[1]	Cylinder
...	AR99793	[1]	Hydraulic Cylinder Kit	(PISTON REPAIR) (SUB FOR AU41806)
