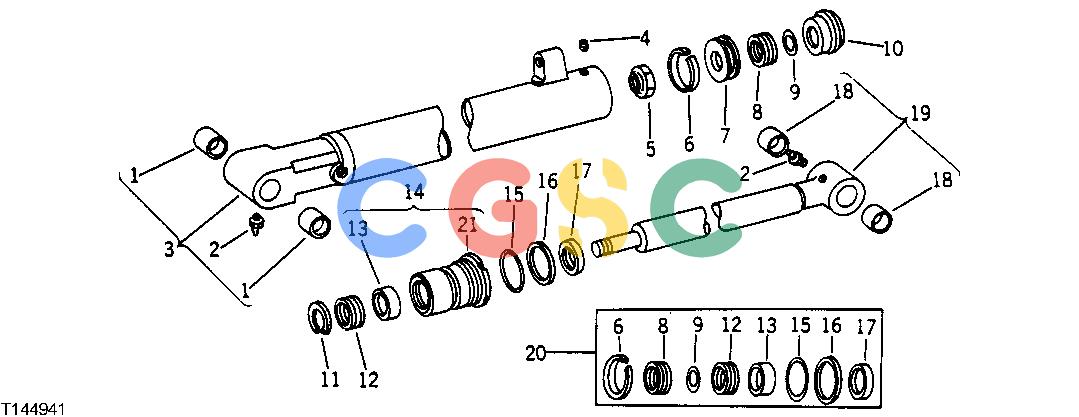

约翰迪尔零件查询401C - BACKHOE, LOADER LOADER BOOM CYLINDER [02D11]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
750 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
U10294
|
[2] |
Bushing
|
|
| 2. |
JD7759
|
[2] |
Lubrication Fitting
|
|
| 3. |
AU41972
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 3. |
AT58841
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 4. |
22H1077
|
[1] |
Set Screw
|
|
| 5. |
P45231
|
[1] |
Lock Nut
|
|
| 6. |
U17336
|
[1] |
Wear Ring
|
|
| 7. |
U17343
|
[1] |
Piston
|
|
| 8. |
T54810
|
[1] |
Packing
|
|
| 9. |
R495R
|
[1] |
O-Ring
|
|
| 10. |
U42915
|
[1] |
Piston
|
|
| 11. |
U14128
|
[1] |
Snap Ring
|
|
| 12. |
R76802
|
[1] |
Seal
|
|
| 13. |
U41823
|
[1] |
Wear Ring
|
|
| 14. |
AU42198
|
[1] |
Guide
|
|
| 15. |
U12198
|
[1] |
O-Ring
|
|
| 16. |
R81195
|
[1] |
Back-Up Ring
|
|
| 17. |
U16406
|
[1] |
Seal
|
|
| 18. |
U10292
|
[2] |
Bushing
|
|
| 19. |
AU41970
|
[1] |
Rod
|
|
| 20. |
RE19220
|
[1] |
Hydraulic Cylinder Kit
|
|
| 21. |
R80910
|
[1] |
Guide
|
|
| ... |
AU41973
|
[2] |
Cylinder
|
|
| ... |
AT58840
|
[2] |
Hydraulic Cylinder
|
|
