约翰迪尔零件查询401C - BACKHOE, LOADER AUXILIARY VALVE FOR DROTT 4-IN-1 BUCKET [02D12]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 677 次

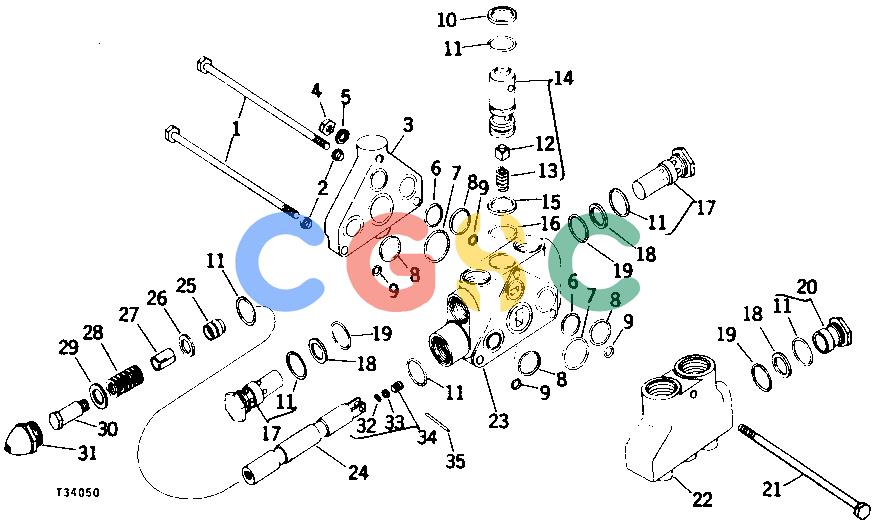

Pos.	Part No	Qty	Parts name	Comments
1.	U40802	[2]	Cap Screw
2.	U13946	[2]	Washer	3/8"
3.	U40604	[1]	Plate
4.	14H807	[1]	Nut	7/16"
5.	12H293	[1]	Lock Washer	7/16"
6.	U15192	[2]	O-Ring	0.06 MM X 22.3 MM (1/16" X 7/8")
7.	U15415	[4]	O-Ring	0.06 MM X 34.9 MM (1/16" X 1-3/8")
8.	U11326	[4]	O-Ring	0.06 MM X 28.6 MM (1/16" X 1-1/8")
9.	P51212	[4]	O-Ring	0.06 MM X 11.1 MM (1/16"X 7/16")
10.	U40729	[1]	Back-Up Ring
11.	32240	[5]	O-Ring	3/32" X 7/8"
12.	U16016	[1]	Poppet
13.	U16015	[1]	Spring
14.	AU13748	[1]	Check Valve
15.	U40728	[1]	Back-Up Ring
16.	R27928	[1]	O-Ring	0.06 MM X 25.5 MM (1/16" X 1-1/16")
17.	AU40751	[2]	Pressure Relief Valve	(2500 PSI) (17.24 MPA) (FOR PARTS SEE PAGE 100-13)
18.	U40727	[3]	Back-Up Ring
19.	P47908	[3]	O-Ring	2.4 MM X 23.8 MM (3/32" X 15/16")
20.	U11427	[1]	Plug
21.	........	[1]	Bolt	.438 DIA 005.125 LENGTH UNF.-3A SERIES
22.	U15107	[1]	Port Plate
23.	........	[1]	Housing	(SUB AU40520)
24.	........	[1]	Spool	(SUB AU40520)
25.	........	[1]		( U13947 NO LONGER AVAILABLE)
26.	U11345	[1]	Washer
27.	U11333	[1]	Bushing
28.	U11336	[1]	Spring
29.	N31767	[1]	Washer
30.	U11428	[1]	Bolt
31.	U11335	[1]	Cap
32.	R34802	[1]	O-Ring
33.	U41516	[1]	Ring
34.	AU40992	[1]	Plug
35.	........	[1]	Spring Pin	( 34H379 NO LONGER AVAILABLE)
...	AU40520	[1]	Valve	FOUR-WAY BORED
...	AU40999	[1]	Valve
