约翰迪尔零件查询401C - BACKHOE, LOADER BACKHOE MAIN FRAME AND STABILIZERS (9250 BACKHOE) [02D20]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 914 次

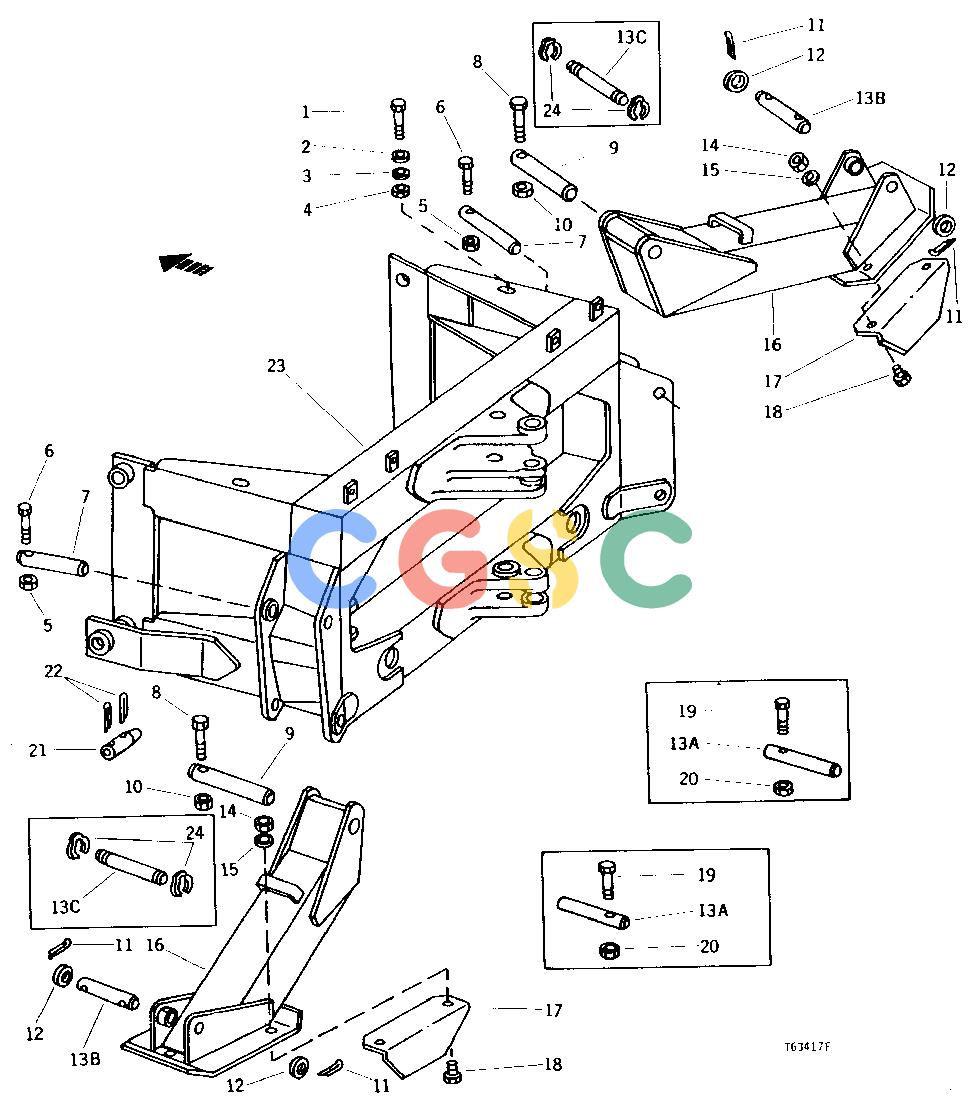

Pos.	Part No	Qty	Parts name	Comments
1.	19H3239	[2]	Cap Screw	3/8" X 1-1/4"
2.	12H304	[2]	Lock Washer	3/8"
3.	24H1305	[2]	Washer	13/32" X 13/16" X 0.065"
4.	14H812	[2]	Nut	3/8"
5.	T11234	[2]	Lock Nut	3/8"
6.	19H2855	[2]	Cap Screw	3/8" X 3-1/4"
7.	U40360	[2]	Pin	UPPER
8.	19H3520	[2]	Cap Screw	1/2" X 3-1/4"
9.	U40359	[2]	Pin
10.	U12622	[2]	Lock Nut	1/2"
11.	11H223	[4]	Cotter Pin	3/8" X 2"
12.	24H1498	[4]	Washer	1-9/32" X 2-1/8" X 0.120"
13A.	U40363	[2]	Pin	LOWER, (SUB T43383, (2) 11H223 AND (2) 24H1498)
13B.	T43383	[2]	Pin Fastener
13C.	T59461	[2]	Pin Fastener	(SUB T43383, (2) 11H223 AND (2) 24H1498)
14.	14H1039	[4]	Nut	5/8"
15.	12H294	[4]	Lock Washer	5/8"
16.	AU40390	[2]	Stabilizer
17.	T81868	[2]	Angle	(SUB FOR U10940)
18.	19H1708	[4]	Cap Screw	5/8" X 1-3/4"
19.	19H3031	[2]	Cap Screw	3/8" X 2-1/2"
20.	T11234	[2]	Lock Nut	3/8"
21.	U41526	[2]	Pin	TO LOADER BARS
22.	11H221	[2]	Cotter Pin	3/8" X 2-1/2"
23.	........	[1]	Main Frame	( AU42092 USE IF AVAILABLE)
24.	T59447	[4]	Snap Ring
