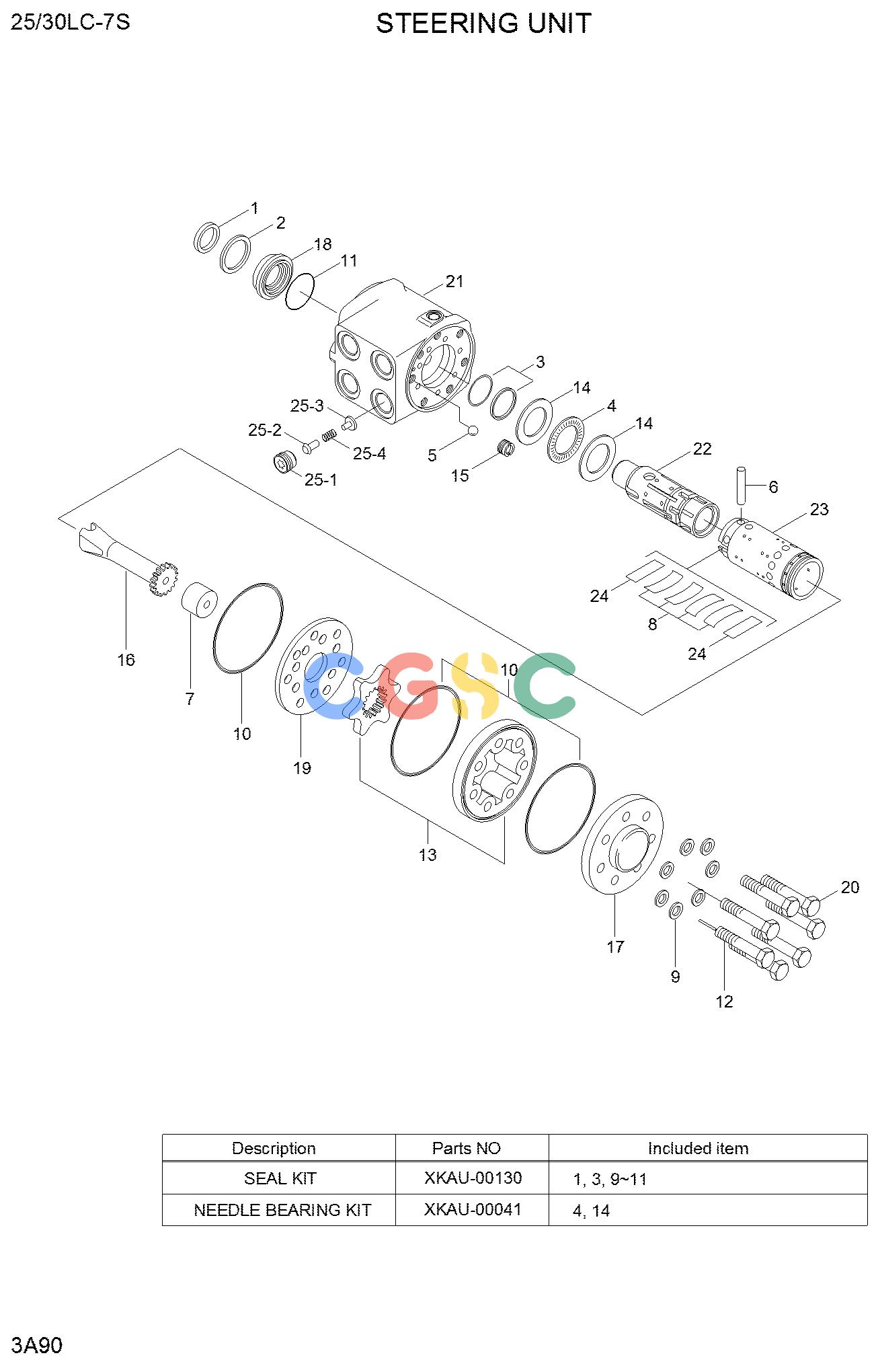

现代零件查询25/30LC-7A STEERING UNITEPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
1030 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31HA-04000
|
[1] |
STEERING UNIT
|
|
| . |
31HA-04001
|
[1] |
STEERING UNIT
|
|
| . |
31HA-04002
|
[1] |
STEERING UNIT(LS)
|
|
| . |
31HA-04000
|
[1] |
STEERING UNIT
|
|
| . |
31HA-04001
|
[1] |
STEERING UNIT
|
|
| . |
31HA-04002
|
[1] |
STEERING UNIT(LS)
|
|
| K1. |
@
|
[1] |
SEAL-DUST
|
|
| 2. |
@
|
[1] |
SEAL-RETAINING
|
|
| NK3. |
405235
|
[1] |
SEAL-CAP
|
|
| NK3. |
405235L
|
[1] |
Deleted...
|
|
| NK3. |
405235
|
[1] |
SEAL-CAP
|
|
| NK3. |
405235L
|
[1] |
Deleted...
|
|
| S4. |
@
|
[1] |
BEARING-THRUST
|
|
| 5. |
@
|
[1] |
BALL
|
|
| 6. |
@
|
[1] |
PIN
|
|
| 7. |
@
|
[1] |
SPACER
|
|
| 8. |
@
|
[4] |
SPRING-CENTERING
|
|
| K9. |
@
|
[7] |
WASHER
|
|
| K10. |
@
|
[3] |
O-RING
|
|
| K11. |
@
|
[1] |
O-RING
|
|
| 12. |
@
|
[1] |
ROLLED SCREW
|
|
| N13. |
211413L
|
[1] |
GEROTOR SET
|
|
| N13. |
211413L-L
|
[1] |
GEROTOR SET
|
|
| N13. |
211413L
|
[1] |
GEROTOR SET
|
|
| N13. |
211413L-L
|
[1] |
GEROTOR SET
|
|
| S14. |
@
|
[2] |
RACE-BEARING
|
|
| 15. |
@
|
[1] |
SCREW-BORE
|
|
| 16. |
@
|
[1] |
DRIVE
|
|
| 17. |
@
|
[1] |
CAP-END
|
|
| 18. |
@
|
[1] |
BUSHING-GLAND
|
|
| 19. |
@
|
[1] |
PLATE
|
|
| 20. |
@
|
[6] |
CAP SCREW
|
|
| 21. |
@
|
[1] |
HOUSING
|
|
| 22. |
@
|
[1] |
SPOOL
|
|
| N23. |
S055002
|
[1] |
SLEEVE
|
|
| N23. |
S062002
|
[1] |
SLEEVE
|
|
| N23. |
S055002
|
[1] |
SLEEVE
|
|
| N23. |
S062002
|
[1] |
SLEEVE
|
|
| 24. |
@
|
[2] |
SPRING-PLATE
|
|
| 25. |
@
|
[1] |
P-PORT CHECK VALVE
|
|
| 25-1. |
@
|
[1] |
PLUG
|
|
| 25-2. |
@
|
[1] |
POPPET
|
|
| 25-3. |
@
|
[1] |
SPRING SEAT
|
|
| 25-4. |
@
|
[1] |
SPRING
|
|
| K. |
XKAU-00130
|
[1] |
SEAL KIT
|
|
| S. |
XKAU-00041
|
[1] |
NEEDLE BEARING KIT
|
|
