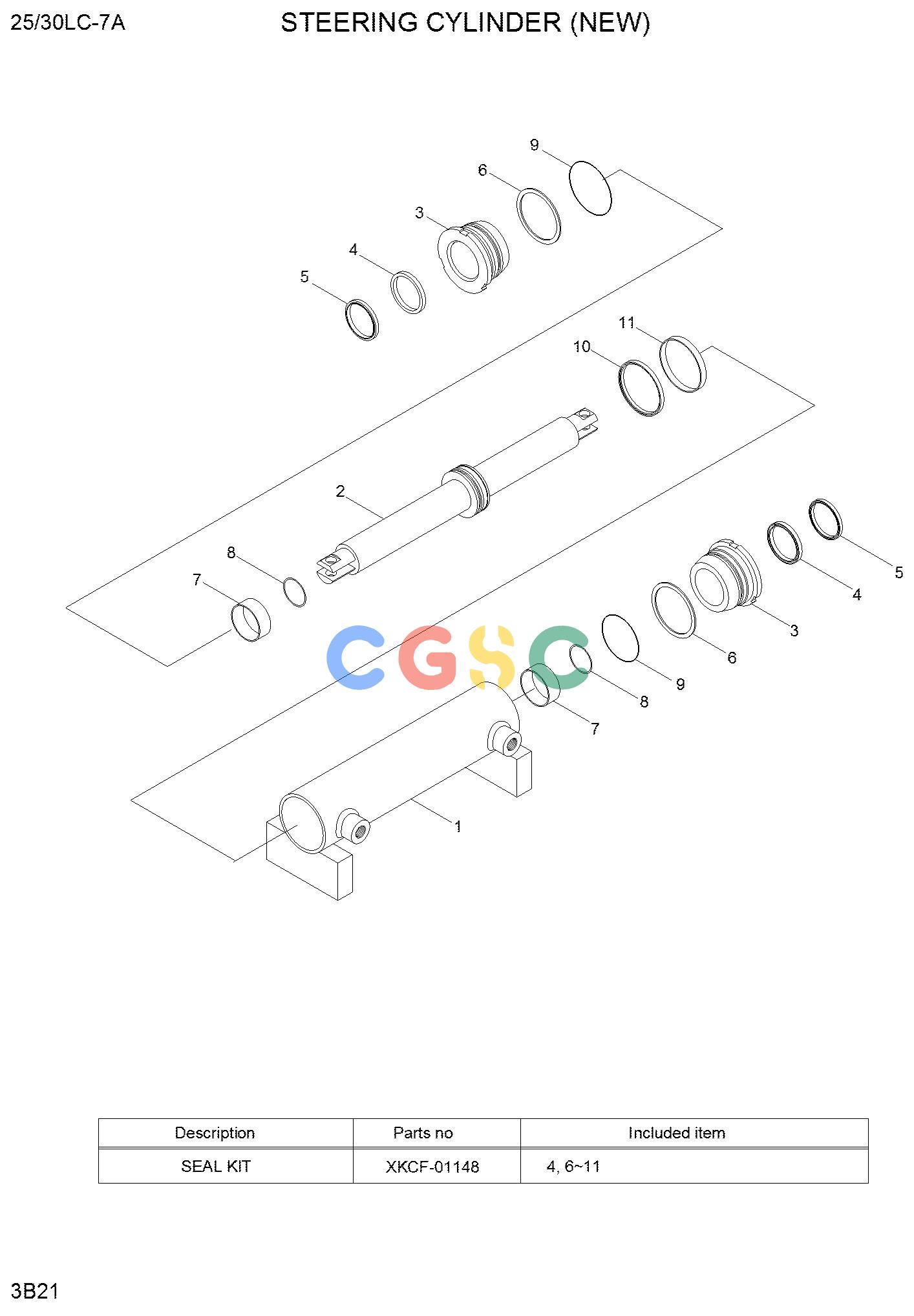

现代零件查询25/30LC-7A STEERING CYLINDER (NEW)EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
908 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
XKCF-00639
|
[1] |
STEERING CYLINDER
|
|
| . |
XKCF-00639
|
[1] |
STEERING CYLINDER
|
|
| 1. |
XKCF-01140
|
[1] |
TUBE ASSY
|
|
| 2. |
XKCF-01141
|
[1] |
ROD ASS'Y
|
|
| 3. |
XKCF-01142
|
[2] |
GLAND
|
|
| K4. |
XKCF-01143
|
[2] |
DUST WIPER
|
|
| 5. |
XKCC-00289
|
[2] |
RETAINER RING
|
|
| K6. |
XKCF-01144
|
[2] |
SEAL-RO
|
|
| K7. |
XKCF-01145
|
[2] |
BEARING-DRY
|
|
| K8. |
XKCC-00177
|
[2] |
O-RING
|
|
| K9. |
XKCC-00179
|
[2] |
O-RING
|
|
| K10. |
XKCF-01146
|
[1] |
SEAL-PISTON
|
|
| K11. |
XKCF-01147
|
[1] |
WEAR RING
|
|
| K. |
XKCF-01148
|
[1] |
SEAL KIT
|
|
