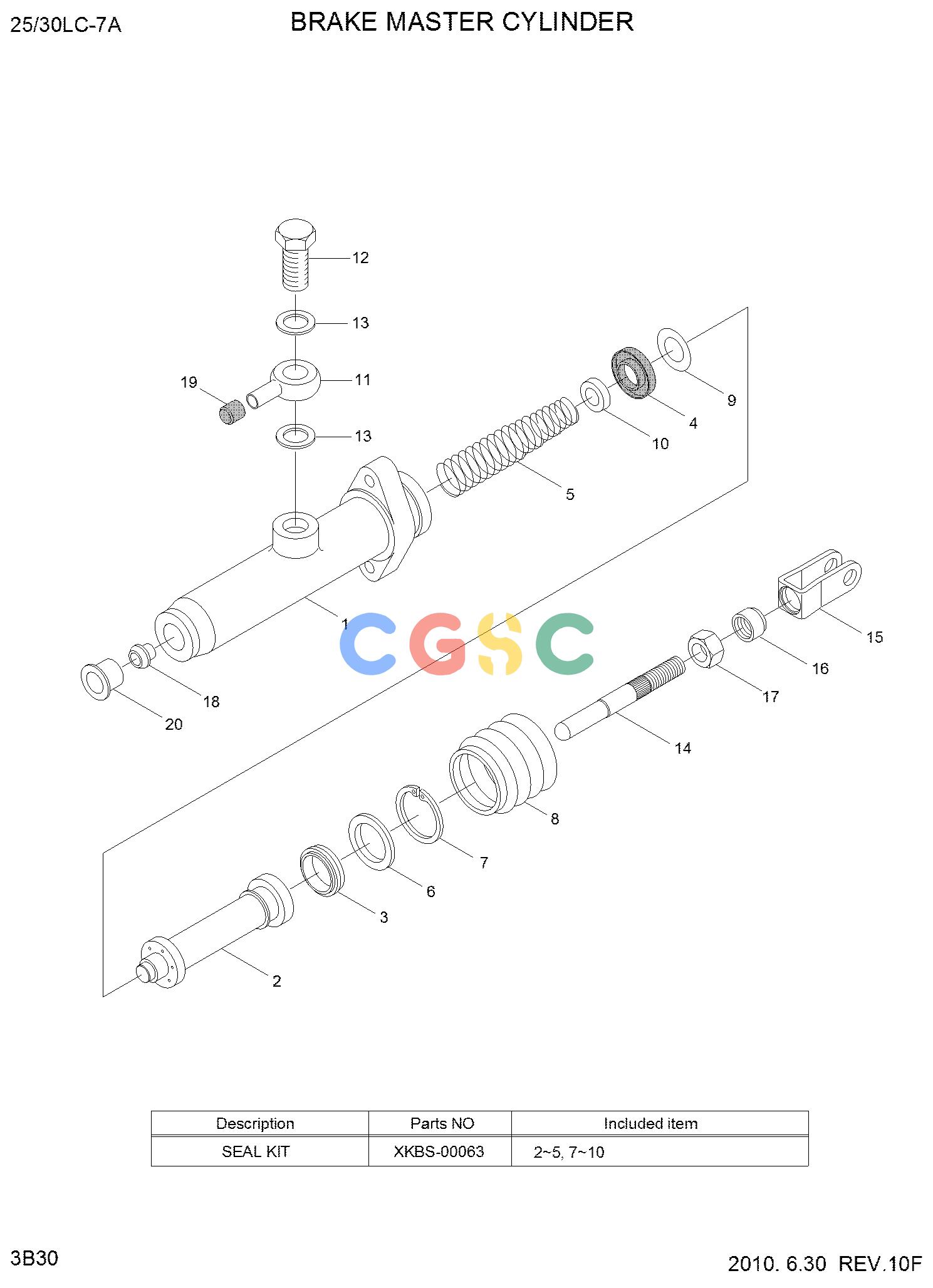

现代零件查询25/30LC-7A BRAKE MASTER CYLEPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
1033 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
81FG-40400
|
[1] |
BRAKE MASTER CYLINDER
|
|
| . |
81FG-40400
|
[1] |
BRAKE MASTER CYLINDER
|
|
| N1. |
XKBS-00048
|
[1] |
BODY
|
|
| K2. |
XKBS-00049
|
[1] |
PISTON
|
|
| K3. |
XKBS-00050
|
[1] |
CUP-SECONDARY
|
|
| K4. |
XKBS-00051
|
[1] |
CUP-PRIMARY
|
|
| K5. |
XKBS-00052
|
[1] |
SPRING
|
|
| N6. |
XKBS-00053
|
[1] |
PLATE
|
|
| K7. |
XKBS-00054
|
[1] |
RING-SNAP
|
|
| NK8. |
XKBS-00055
|
[1] |
BOOT
|
|
| NK9. |
XKBS-00056
|
[1] |
SPACER
|
|
| K10. |
XKBS-00057
|
[1] |
SEAT-SPRING
|
|
| N11. |
XKBS-00034
|
[1] |
UNION
|
|
| N12. |
XKBS-00035
|
[1] |
BOLT-UNION
|
|
| N13. |
XKBS-00036
|
[1] |
WASHER
|
|
| N14. |
XKBS-00058
|
[1] |
ROD
|
|
| 15. |
XKBS-00059
|
[1] |
HEAD
|
|
| 16. |
XKBS-00060
|
[1] |
PIN-HEAD
|
|
| 17. |
XKBS-00061
|
[2] |
NUT
|
|
| 18. |
XKBS-00062
|
[1] |
SEAT
|
|
| N19. |
XKBS-00022
|
[1] |
CAP
|
|
| N20. |
XKBS-00023
|
[1] |
CAP
|
|
| K. |
XKBS-00063
|
[1] |
SEAL KIT
|
|
