| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |

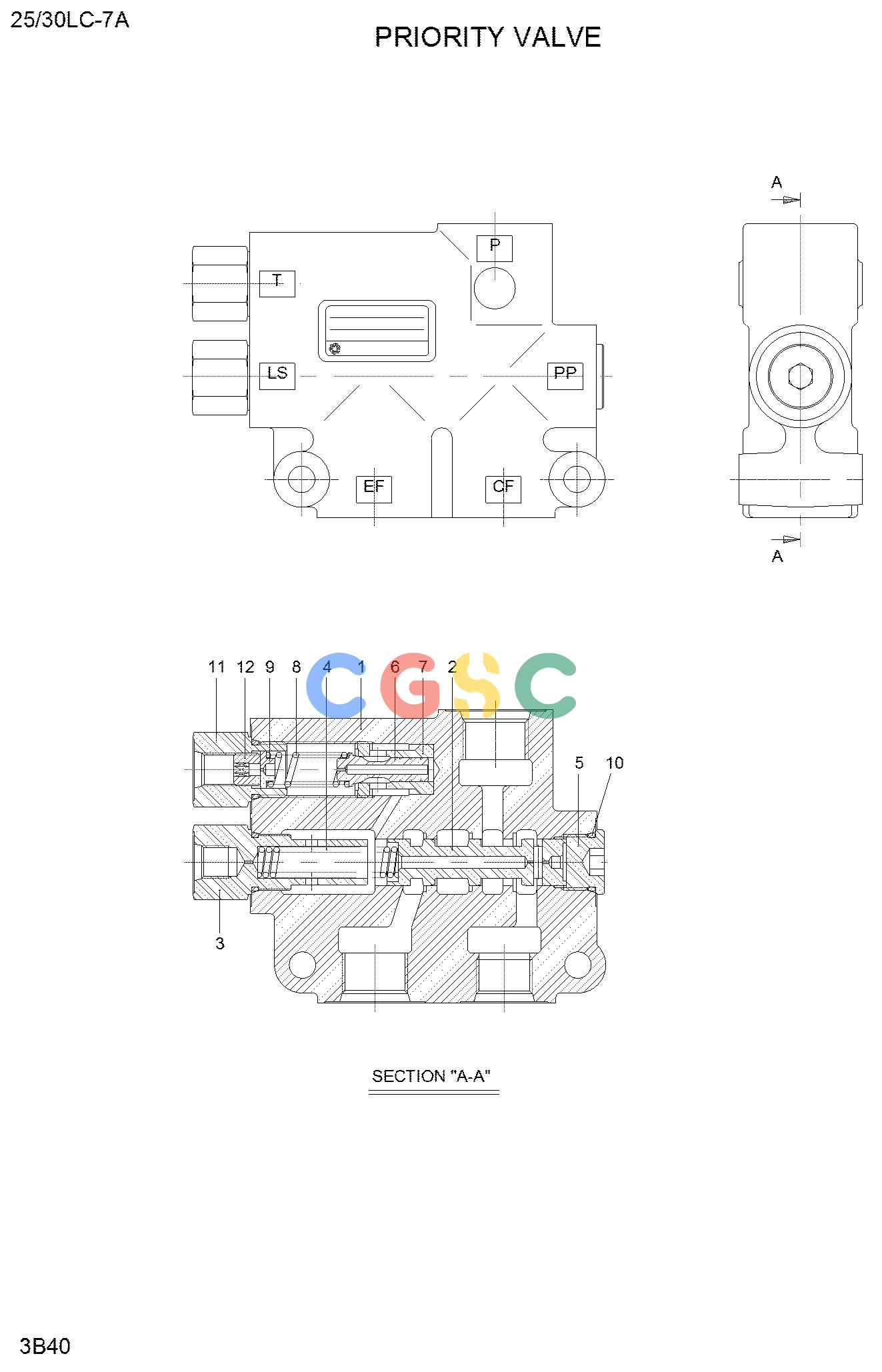

31HH-03000
|
[1] |
PRIORITY VALVE
|
|
| . |
31HH-03000
|
[1] |
PRIORITY VALVE
|
|
| N1. |
XKAU-00177
|
[1] |
BODY
|
|
| N2. |
XKAU-00178
|
[1] |
SPOOL
|
|
| N3. |
XKAU-00179
|
[1] |
END PLUG
|
|
| N4. |
XKAU-00180
|
[1] |
SPRING
|
|
| N5. |
XKAU-00074
|
[1] |
PLUG-END
|
|
| N6. |
XKAU-00181
|
[1] |
SPOOL
|
|
| N7. |
XKAU-00086
|
[1] |
BUSHING
|
|
| N8. |
XKAU-00182
|
[1] |
SPRING
|
|
| N9. |
XKAU-00183
|
[1] |
ORIFICE
|
|
| 10. |
XKAU-00026
|
[3] |
O-RING
|
|
| 11. |
XKAU-00184
|
[1] |
PLUG-END
|
|
| N12. |
XKAU-00185
|
[1] |
CONTROL SCREW
|
|
