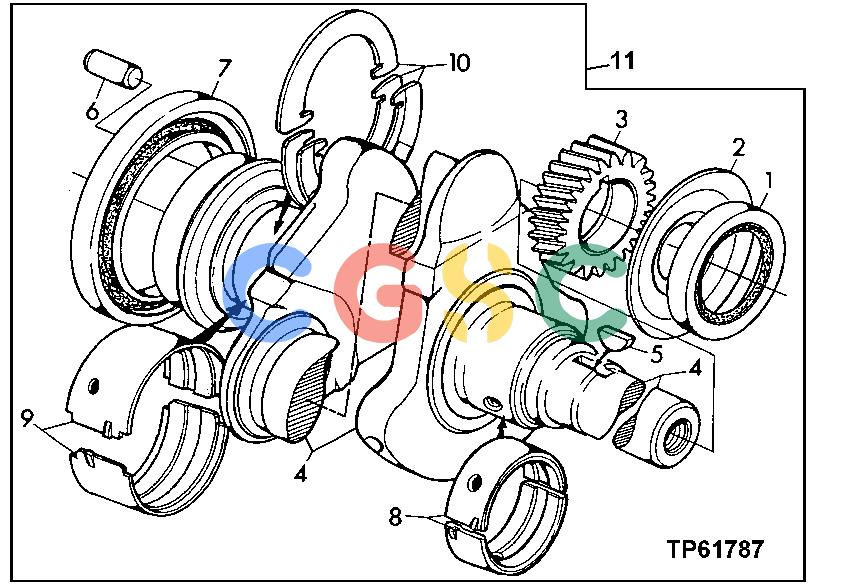

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AR67942 | [1] | Seal | |
| 2. | T20046 | [1] | Oil Slinger | |
| 3. | T20094 | [1] | Helical Gear | |
| 4. | ........ | [1] | Crankshaft | (MARKED R100791) |
| 5. | 26H72 | [1] | Shaft Key | 1/8" X 5/8" |
| 6. | R48685 | [1] | Dowel Pin | |
| 7. | RE44574 | [1] | Seal | |
| 8. | RE27348 | [1] | Bearing Kit | |
| 9. | AT21140 | [4] | Bearing | |
| 10. | RE13571 | [4] | Kit | |
| 11. | RE48748 | [1] | Crankshaft | KIT FOR SHORT NOSE |
