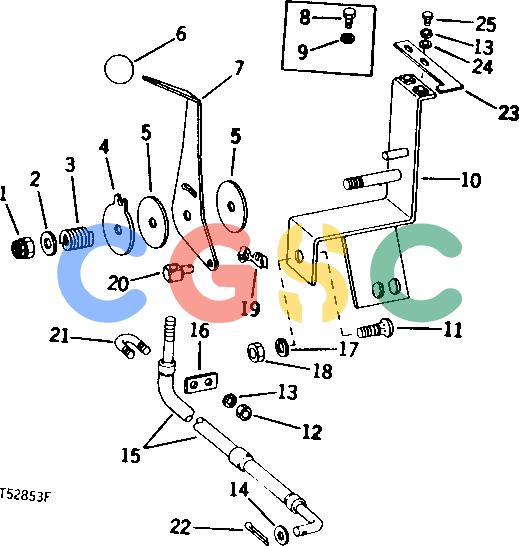

约翰迪尔零件查询410 - BACKHOE, LOADER SPEED CONTROL LEVER AND CABLE [01C19]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
395 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T11234
|
[1] |
Lock Nut
|
|
| 2. |
24H1304
|
[1] |
Washer
|
|
| 3. |
R31271
|
[1] |
Compression Spring
|
|
| 4. |
R33976
|
[1] |
Plate
|
|
| 5. |
R39985
|
[2] |
Washer
|
|
| 6. |
R40948
|
[1] |
Knob
|
|
| 7. |
T34190
|
[1] |
Lever
|
|
| 7. |
T48181
|
[1] |
Lever
|
|
| 8. |
19H2479
|
[2] |
Cap Screw
|
|
| 9. |
12H297
|
[2] |
Lock Washer
|
|
| 10. |
AT33242
|
[1] |
Bracket
|
|
| 11. |
03H1765
|
[1] |
Bolt
|
|
| 12. |
14H786
|
[2] |
Nut
|
|
| 13. |
12H302
|
[4] |
Lock Washer
|
|
| 14. |
24H1286
|
[1] |
Washer
|
|
| 15. |
AT33243
|
[1] |
Cable
|
|
| 16. |
T15021
|
[1] |
Strap
|
|
| 17. |
12H304
|
[1] |
Lock Washer
|
|
| 18. |
14H812
|
[1] |
Nut
|
|
| 19. |
R26501
|
[1] |
Clip
|
|
| 20. |
T35887
|
[1] |
Swivel
|
|
| 21. |
T13988
|
[1] |
U-Bolt
|
|
| 22. |
11M7077
|
[1] |
Cotter Pin
|
|
| 23. |
T48182
|
[1] |
Stop
|
|
| 24. |
24H1287
|
[2] |
Washer
|
|
| 25. |
19H1948
|
[2] |
Cap Screw
|
|
