约翰迪尔零件查询410 - BACKHOE, LOADER FUEL INJECTION NOZZLE ASSEMBLY (ENGINE SERIAL NO. 575165- ) [01D24]EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询410 - BACKHOE, LOADER FUEL INJECTION NOZZLE ASSEMBLY (ENGINE SERIAL NO. 575165- ) [01D24]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 379 次

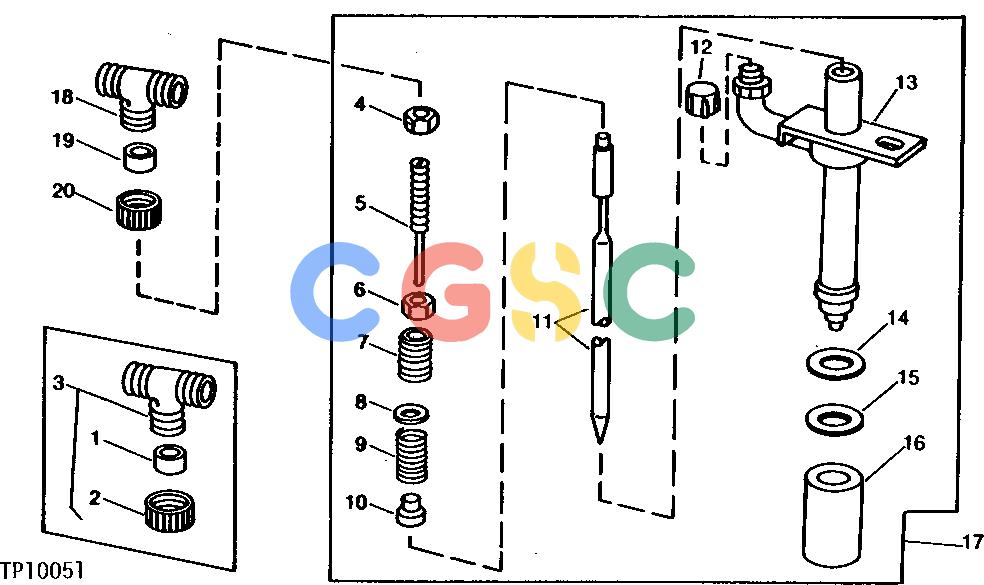

Pos.	Part No	Qty	Parts name	Comments
1.	T29539	[1]	Washer	(SUB R79605)
2.	T29540	[1]	Fitting	(SUB R79604)
3.	AR85618	[1]	Cap	(SUB R79604, R79605 AND R79606)
4.	........	[1]	Nut	( R47733 NO LONGER AVAILABLE)
5.	........	[1]	Screw	( R69443 NO LONGER AVAILABLE)
6.	........	[1]	Nut	( R46675 NO LONGER AVAILABLE)
7.	........	[1]	Screw	( R62984 NO LONGER AVAILABLE)
8.	........	[1]	Shim	( R62981 NO LONGER AVAILABLE)
9.	........	[1]	Spring	( R69442 NO LONGER AVAILABLE)
10.	........	[1]	Valve Seat	( R62982 NO LONGER AVAILABLE)
11.	........	[1]	Valve	(SUB AR89564)
12.	........	[1]	Cap (Hat)	( T31174 NO LONGER AVAILABLE) (USE FOR SERVICING NOZZLE)
13.	R67779	[1]	Clamp
14.	R34764	[1]	Washer	(K1) (SUB RE13887, THIS APPLICATION) (SUB RE32011)
14.	R60746	[1]	Washer	(K)
15.	R48000	[1]	Seal
16.	T24472	[1]	Cap
17.	AR89564	[1]	Injection Nozzle	(ROOSA-MASTER NO. 22202)
17.	SE500822	[1]	Nozzle	(CONTAINS (4) REMANUFACTURED NOZZLES)
17.	SE501099	[AR]	Nozzle	(SINGLE PACK) (REMANUFACTURED FOR AR89564)
18.	R79606	[1]	Tee Fitting
19.	R79605	[1]	Washer
20.	R79604	[1]	Tube Nut
