约翰迪尔零件查询410 - BACKHOE, LOADER FUEL INJECTION SYSTEM (ENGINE SERIAL NO. -505340) [01E01]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 461 次

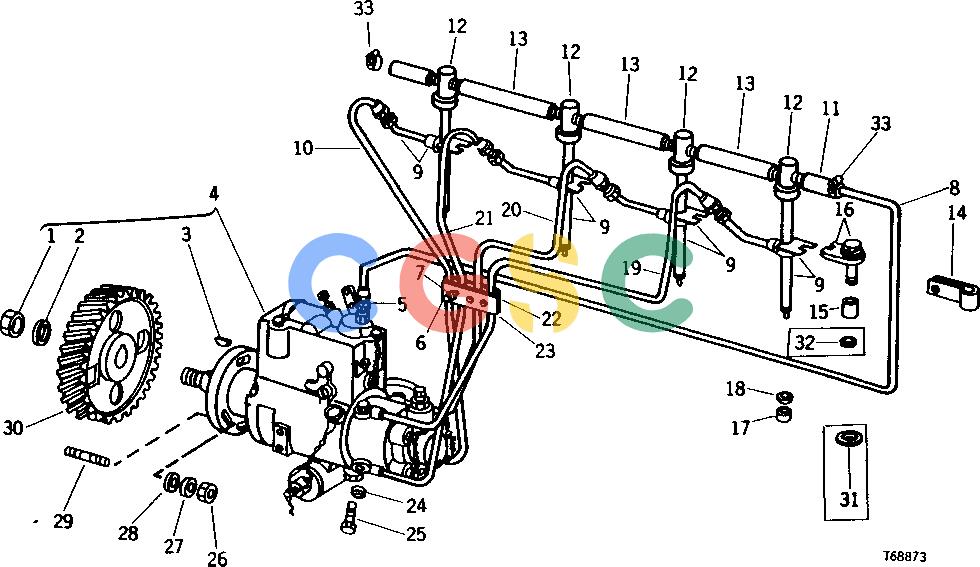

Pos.	Part No	Qty	Parts name	Comments
1.	R48599	[1]	Nut
2.	R132874	[1]	Washer	(SUB FOR R48600)
3.	26H10	[1]	Shaft Key	5/32" X 5/8"
4.	AR51113	[1]	Fuel Injection Pump	(ROOSA-MASTER NO. JDB431AL2410 OR JDB431MD2800)
4.	SE500560	[1]	Fuel Injection Pump	(REMANUFACTURED)
5.	R35352	[1]	Fitting
6.	21H1317	[3]	Screw	0.190" X 5/8", (USE WITH T23462 AND T23463)
6.	AR76704	[3]	Screw
7.	12H246	[3]	Lock Washer	0.190", (USE WITH T23462 AND T23463)
8.	AT27620	[1]	Fuel Line
9.	AR49877	[4]	Injection Nozzle	(SUB AR89564)
9.	AR56290	[4]	Injection Nozzle	(SUB AR89564)
9.	AR73673	[4]	Injection Nozzle	(SUB AR89564)
9.	AR89564	[4]	Injection Nozzle	(SUB FOR AR88239)
9.	SE500822	[1]	Nozzle	(CONTAINS (4) REMANUFACTURED NOZZLES)
9.	SE501099	[AR]	Nozzle	(SINGLE PACK) (REMANUFACTURED FOR AR89564)
10.	AT18173	[1]	Fuel Line	NO. 1
11.	........	[2]	Hose	(MAKE FROM R68281 1 524 MM (5 FT.) HOSE) (SUB FOR AT32064)
12.	AT27622	[4]	Cap
13.	........	[3]	Hose	(MAKE FROM R68281 1 524 MM (5 FT.) HOSE) (SUB FOR AT32064)
14.	T29969	[1]	Clamp	(SUB FOR R47281)
15.	R34761	[4]	Spacer	(K1) (SUB (4) RE13887, THIS APPLICATION) (SUB RE32011)
15.	R60745	[4]	Spacer	(K) (USE AFTER RE13887 HAS BEEN INSTALLED)
16.	R34760	[4]	Clamp
17.	R48000	[4]	Seal	LOWER
18.	R34764	[4]	Washer	(K1) UPPER, (USE WITH AR56290 AND AR89564) (SUB (4) RE13887, THIS APPLICATION) (SUB RE32011)
18.	R60746	[4]	Washer	(K) UPPER, (USE WITH AR73673 AND AR88239) (USE AFTER RE13887 HAS BEEN INSTALLED)
19.	AT18176	[1]	Fuel Line	NO. 4
20.	AT18175	[1]	Fuel Line	NO. 3
21.	AT18174	[1]	Fuel Line	NO. 2
22.	T23463	[1]	Strap	(SUB R59300, R61146, (2) R59299 AND (3) AR76704)
22.	R59299	[1]	Clamp
22.	R61146	[1]	Strap
23.	T23462	[1]	Clamp	(SUB R59300, R61146, (2) R59299 AND (3) AR76704)
23.	R59299	[1]	Clamp
23.	R59300	[1]	Strap
24.	T20055	[8]	Washer
25.	R26726	[4]	Hollow Screw
26.	14H812	[2]	Nut	3/8"
27.	12H304	[2]	Lock Washer	3/8"
28.	24M7096	[2]	Washer	0.413" X 0.709" X 0.063"
29.	T20052	[2]	Stud
30.	R84663	[1]	Gear	(48 TEETH) (SUB FOR T20165)
31.	24H1685	[4]	Washer	11/32" X 47/64" X 0.083"
31.	24H1685	[4]	Washer	11/32" X 47/64" X 0.083"
32.	T32252	[4]	Washer
32.	T32252	[4]	Washer
33.	TY22462	[2]	Clamp	(SUB FOR AR48236)
