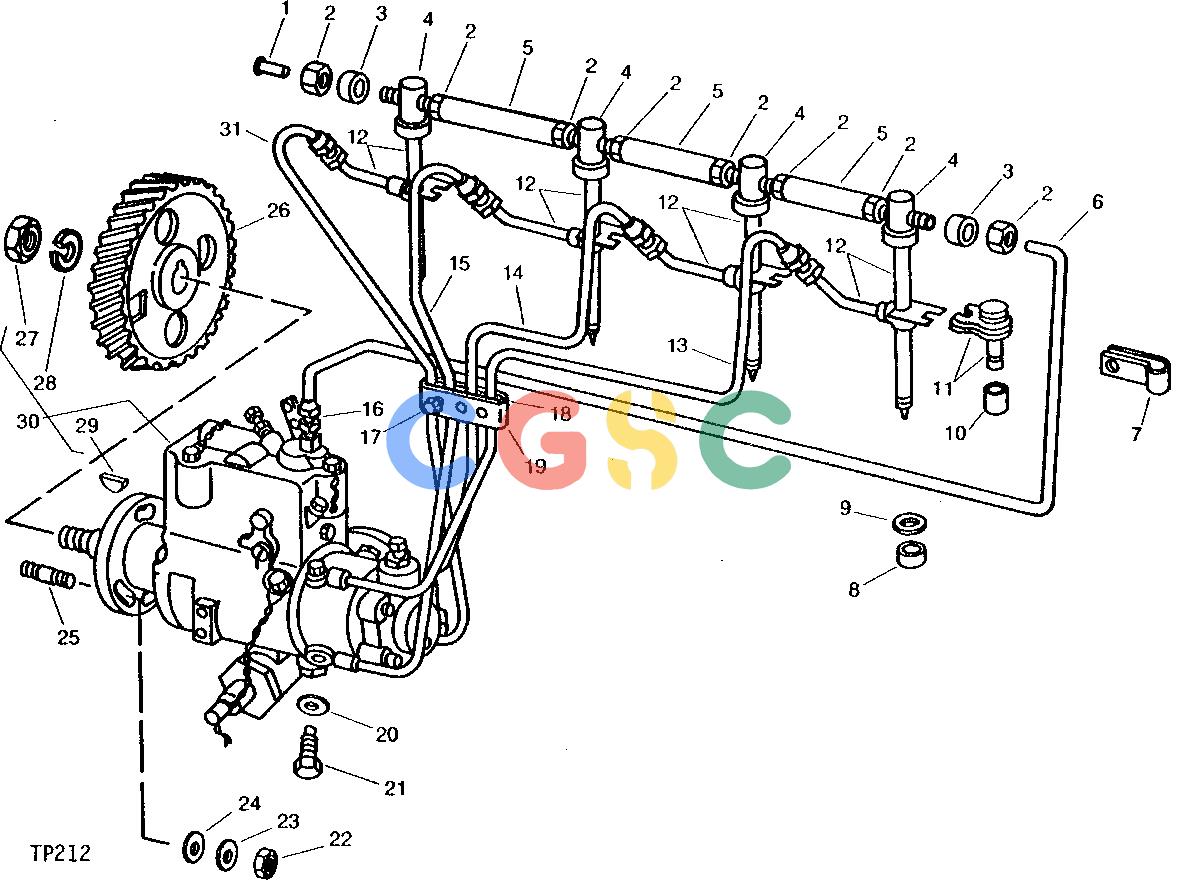

Pos.	Part No	Qty	Parts name	Comments
1.	16H658	[1]	Rivet	1/4" X 5/8"
2.	R51937	[8]	Tube Nut
3.	R51936	[8]	Sealing Washer
4.	AR85618	[4]	Cap	(SUB R79604, R79605 AND R79606)
5.	R66090	[3]	Tube
6.	RE29274	[1]	Fuel Line	(SUB FOR AR89844)
7.	T29969	[1]	Clamp
8.	R48000	[4]	Seal	LOWER
9.	R60746	[4]	Washer	(K) UPPER, (USE WITH AR88239) (USE AFTER RE13887 HAS BEEN INSTALLED)
9.	R34764	[4]	Washer	(K1) UPPER, (USE WITH AR89564) (SUB (4) RE13887, THIS APPLICATION) (SUB RE32011)
10.	R34761	[4]	Spacer	(K1) (SUB (4) RE13887, THIS APPLICATION) (SUB RE32011)
10.	R60745	[4]	Spacer	(K)
11.	R34760	[4]	Clamp
12.	AR88239	[4]	Injection Nozzle	(SUB AR89564)
12.	AR89564	[4]	Injection Nozzle
13.	AT18176	[1]	Fuel Line	NO. 4
14.	AT18175	[1]	Fuel Line	NO. 3
15.	AT18174	[1]	Fuel Line	NO. 2
16.	R35352	[1]	Fitting
17.	AR76704	[3]	Screw
18.	R59299	[1]	Clamp
18.	R61146	[1]	Strap
19.	R59299	[1]	Clamp
19.	R59300	[1]	Strap
20.	T20055	[8]	Washer
21.	R26726	[4]	Hollow Screw
22.	14H812	[2]	Nut	3/8"
23.	12H304	[2]	Lock Washer	3/8"
24.	24M7096	[2]	Washer	0.413" X 0.709" X 0.063"
25.	T20052	[2]	Stud
26.	R84663	[1]	Gear	(48 TEETH) (SUB FOR T20165)
27.	R48599	[1]	Nut
28.	R132874	[1]	Washer	(SUB FOR R48600)
29.	26H10	[1]	Shaft Key	5/32" X 5/8"
30.	AR51113	[1]	Fuel Injection Pump	(ROOSA-MASTER NO. JDB431AL2410 OR JDB431MD2800)
31.	AT18173	[1]	Fuel Line	NO. 1
