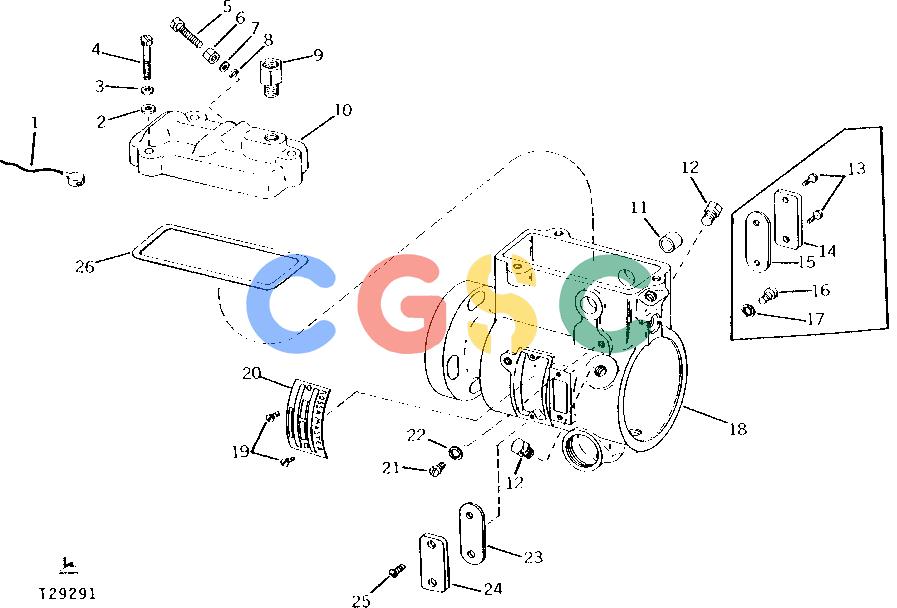

约翰迪尔零件查询410 - BACKHOE, LOADER FUEL INJECTION PUMP HOUSING AND DRIVE (ROOSA-MASTER NO. JDB431AL2410) [01E06]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
395 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T11877
|
[4] |
Wire
|
|
| 2. |
T15715
|
[3] |
Washer
|
|
| 3. |
12H295
|
[3] |
Lock Washer
|
|
| 4. |
T15721
|
[1] |
Screw
|
|
| 4. |
R71851
|
[2] |
Screw
|
|
| 5. |
T17953
|
[1] |
Cap Screw
|
|
| 6. |
T11921
|
[1] |
Nut
|
|
| 7. |
T17947
|
[1] |
Washer
|
|
| 8. |
R34812
|
[1] |
O-Ring
|
|
| 9. |
R36535
|
[1] |
Check Valve
|
|
| 10. |
R37139
|
[1] |
Cover
|
|
| 11. |
R48493
|
[1] |
Bushing
|
|
| 12. |
R30714
|
[2] |
Bolt
|
|
| 13. |
T11884
|
[2] |
Screw
|
|
| 14. |
T11882
|
[1] |
Cover
|
|
| 15. |
T11883
|
[1] |
Gasket
|
|
| 16. |
T11930
|
[1] |
Screw
|
|
| 17. |
T11878
|
[1] |
Washer
|
|
| 18. |
AR67675
|
[1] |
Housing
|
|
| 19. |
T11876
|
[2] |
Screw
|
|
| 20. |
T11875
|
[1] |
Identification Plate
|
|
| 21. |
T11930
|
[1] |
Screw
|
|
| 22. |
T11878
|
[1] |
Washer
|
|
| 23. |
T11883
|
[1] |
Gasket
|
|
| 24. |
T11882
|
[1] |
Cover
|
|
| 25. |
T11884
|
[2] |
Screw
|
|
| 26. |
T11918
|
[1] |
Gasket
|
|
| ... |
AR34612
|
[1] |
Gasket Kit
|
|
