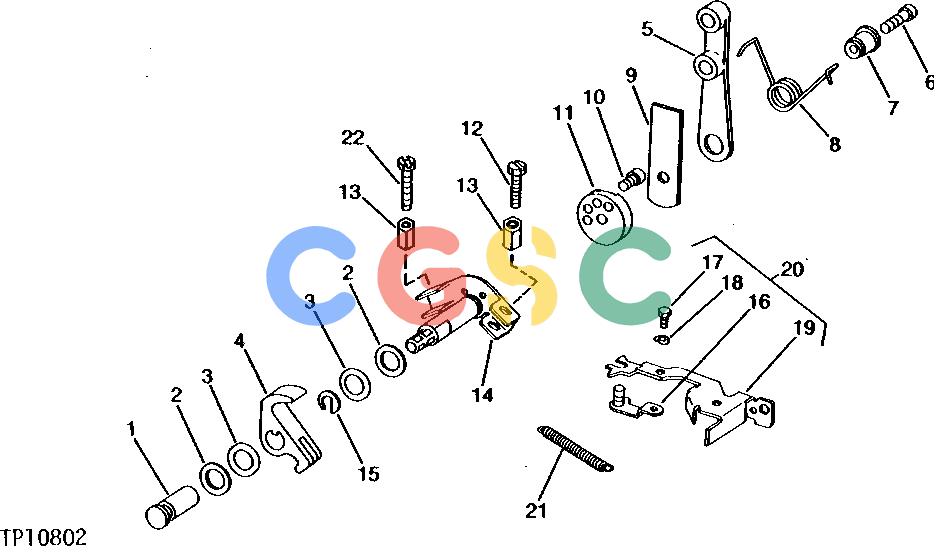

约翰迪尔零件查询410 - BACKHOE, LOADER FUEL INJECTION PUMP LINKAGE (ROOSA-MASTER NO. JDB431AL2410 OR JDB431MD2800) [01E10]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
783 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R59079
|
[1] |
Shaft
|
|
| 2. |
T15720
|
[2] |
Washer
|
|
| 3. |
R76578
|
[2] |
O-Ring
|
|
| 4. |
T11927
|
[1] |
Lever
|
|
| 5. |
T19858
|
[1] |
Lever
|
|
| 6. |
R70513
|
[1] |
Screw
|
|
| 7. |
T17950
|
[1] |
Retainer
|
|
| 8. |
T17949
|
[1] |
Spring
|
|
| 9. |
T19860
|
[1] |
Strap
|
|
| 10. |
T11917
|
[1] |
Screw
|
|
| 11. |
T19861
|
[1] |
Spacer
|
|
| 12. |
R48514
|
[1] |
Screw
|
|
| 13. |
T19862
|
[2] |
Nut
|
|
| 14. |
R36542
|
[1] |
Shaft
|
|
| 15. |
T11929
|
[1] |
Clip
|
|
| 16. |
AR28602
|
[1] |
Link
|
|
| 17. |
R30718
|
[1] |
Screw
|
|
| 18. |
R30719
|
[1] |
Lock Washer
|
|
| 19. |
T15699
|
[1] |
Hook
|
|
| 20. |
AT11520
|
[1] |
Hook
|
|
| 21. |
T11911
|
[1] |
Spring
|
|
| 22. |
R30722
|
[1] |
Bolt
|
|
| ... |
AR34612
|
[1] |
Gasket Kit
|
|
