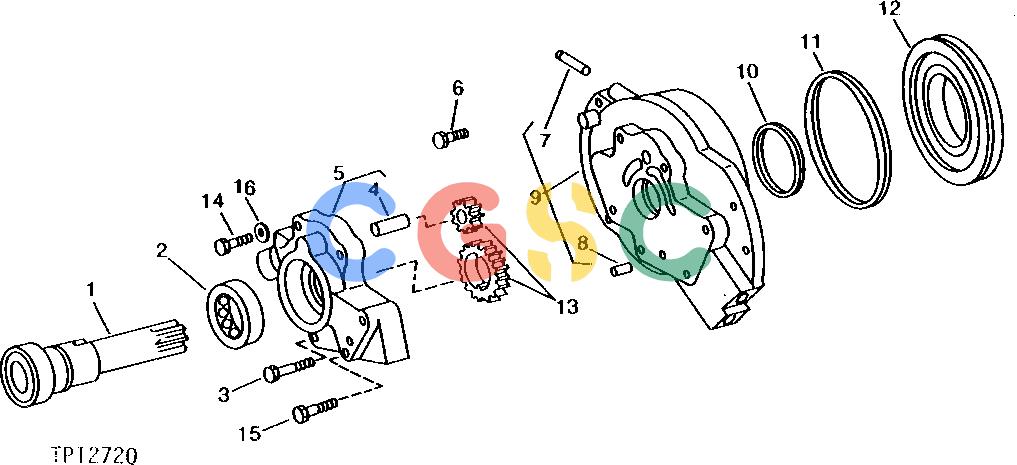

约翰迪尔零件查询410 - BACKHOE, LOADER REVERSER BRAKE HOUSING AND PISTON [01F02]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
994 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T35864
|
[1] |
Shaft
|
|
| 2. |
JD8720
|
[1] |
Cylindrical Roller Bearing
|
|
| 3. |
R40808
|
[2] |
Cap Screw
|
|
| 4. |
R39327
|
[1] |
Dowel Pin
|
|
| 5. |
RE13915
|
[1] |
Oil Pump
|
|
| 6. |
19H3483
|
[7] |
Cap Screw
|
|
| 7. |
R39166
|
[1] |
Pin
|
|
| 8. |
R30587
|
[3] |
Dowel Pin
|
|
| 9. |
AR39183
|
[1] |
Housing
|
|
| 10. |
R39117
|
[1] |
Washer
|
|
| 11. |
R33059
|
[1] |
Sealing Washer
|
|
| 12. |
R39189
|
[1] |
Piston
|
|
| 13. |
AR39180
|
[1] |
Gear
|
|
| 14. |
R39332
|
[5] |
Cap Screw
|
|
| 14. |
R39332
|
[4] |
Cap Screw
|
|
| 15. |
R53495
|
[1] |
Cap Screw
|
|
| 16. |
R42729
|
[2] |
Washer
|
|
