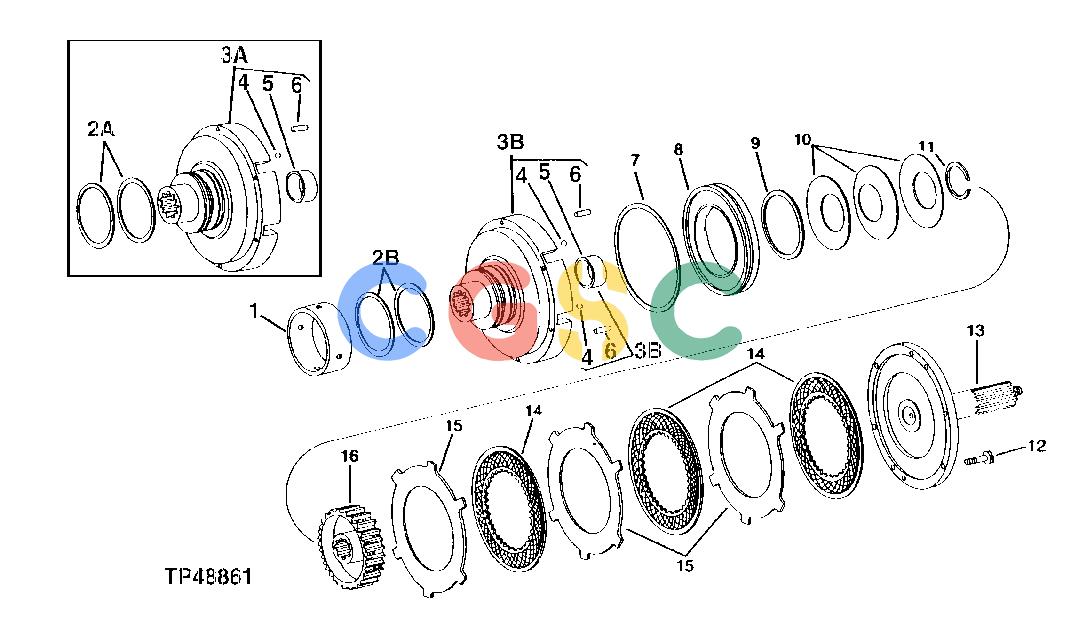

约翰迪尔零件查询410 - BACKHOE, LOADER CLUTCH DRUM AND DISKS [01F01]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
1018 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T27693
|
[1] |
Sleeve
|
|
| 2A. |
R39322
|
[2] |
Ring
|
|
| 2B. |
R119327
|
[2] |
Ring
|
|
| 3A. |
........
|
[1] |
Drum
|
|
| 3B. |
RE61163
|
[1] |
Drum
|
|
| 4. |
H836R
|
[2] |
Ball
|
|
| 5. |
R39114
|
[1] |
Bushing
|
|
| 6. |
R30587
|
[2] |
Dowel Pin
|
|
| 7. |
R39116
|
[1] |
Washer
|
|
| 8. |
R39115
|
[1] |
Piston
|
|
| 9. |
R39117
|
[1] |
Washer
|
|
| 10. |
R39082
|
[3] |
Disk Spring
|
|
| 11. |
R39081
|
[1] |
Snap Ring
|
|
| 12. |
19H2117
|
[6] |
Cap Screw
|
|
| 13. |
R39084
|
[1] |
Shaft
|
|
| 13. |
R55017
|
[1] |
Shaft
|
|
| 14. |
R31404
|
[3] |
Disk With Inner Spline
|
|
| 14. |
RE27995
|
[3] |
Clutch Disk
|
|
| 15. |
R57345
|
[3] |
Clutch Plate
|
|
| 15. |
R39325
|
[3] |
Clutch Plate
|
|
| 16. |
R39118
|
[1] |
Hub
|
|
