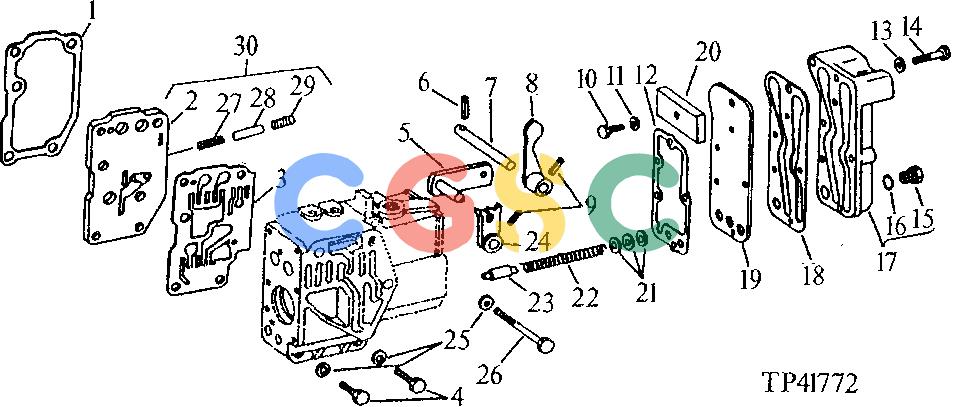

Pos.	Part No	Qty	Parts name	Comments
1.	T27771	[1]	Gasket
2.	........	[1]	Clutch Plate	( T27772 - NO LONGER AVAILABLE) (SUB RE50941 AND R107207)
3.	T49105	[1]	Gasket	(SUB FOR T25139)
3.	R99385	[1]	Gasket	(SUB FOR T40170)
3.	R107207	[1]	Gasket	(USE WITH RE50941)
4.	19H3267	[2]	Cap Screw	3/8" X 1-5/8"
5.	AR39064	[1]	Shaft
6.	25H522	[1]	Groove Pin	3/16" X 7/8"
7.	R39152	[1]	Pin Fastener
8.	AR39040	[1]	Arm
9.	34H282	[2]	Spring Pin	3/16" X 1"
9.	25H522	[2]	Groove Pin	3/16" X 7/8"
10.	19H3483	[1]	Cap Screw	3/8" X 1-1/8"
11.	12H304	[1]	Lock Washer	3/8"
12.	R98923	[1]	Gasket	(SUB FOR R39163)
13.	24H1286	[5]	Washer	9/32" X 1/2" X 1/16"
14.	19H2935	[5]	Screw	1/4" X 1-1/2"
15.	R27218	[1]	Fitting Plug
16.	R26448	[1]	O-Ring
17.	........	[1]	Cover	(WHEN AR39138 IS NO LONGER AVAILABLE SUB R39160, R26448 AND R27218)
17.	R39160	[1]	Valve Cover	(DOES NOT INCLUDE PLUG OR O-RING)
18.	R98922	[1]	Gasket	(SUB FOR R39161)
19.	R39162	[1]	Plate
20.	R39248	[1]	Strap
21.	R33521	[AR]	Shim	.76 MM (.030") (DO NOT USE R56351, THIS APPLICATION)
21.	B1085R	[AR]	Washer
21.	T33473	[AR]	Shim	.41 MM (.016")
22.	R39132	[1]	Spring
23.	R39294	[1]	Pin Fastener
24.	R39151	[1]	Lever	INNER
24.	R83001	[1]	Arm	(SUB FOR T39521)
25.	24M7096	[3]	Washer	0.413" X 0.709" X 0.063"
26.	19H1912	[1]	Cap Screw	3/8" X 3-1/2"
27.	R106727	[1]	Spring
28.	R27053	[1]	Needle Roller
29.	15H560	[1]	Pipe Plug
30.	RE50941	[1]	Plate	(SUB FOR T27772, ALSO ORDER R107207)
