约翰迪尔零件查询410 - BACKHOE, LOADER REVERSER OIL LINES [01F11]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 536 次

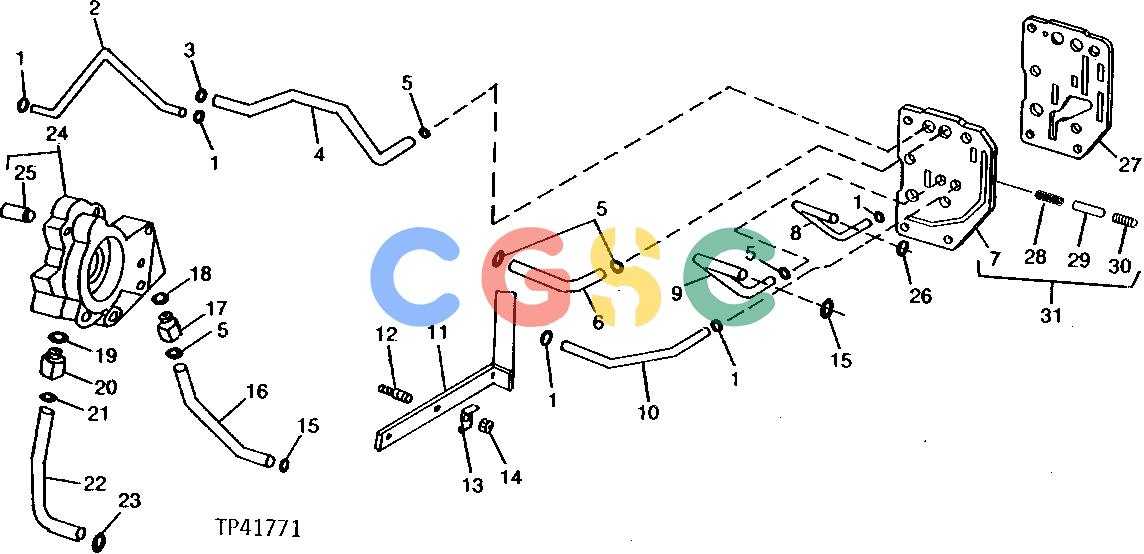

Pos.	Part No	Qty	Parts name	Comments
1.	A3917R	[5]	O-Ring
2.	T22583	[1]	Oil Tube	FRONT CLUTCH LUBRICATION
3.	R27166	[1]	O-Ring
4.	T22582	[1]	Oil Tube	FRONT CLUTCH PRESSURE
5.	R375R	[5]	O-Ring
6.	T22579	[1]	Tube	REVERSE CLUTCH PRESSURE
7.	........	[1]	Clutch Plate	( T27772 - NO LONGER AVAILABLE) (SUB RE50941 AND R107207)
8.	T22933	[1]	Oil Tube	TRANSMISSION LUBE
9.	T22932	[1]	Oil Tube	FILTER
10.	T22580	[1]	Oil Tube	REAR CLUTCH LUBRICATION
11.	AT22335	[1]	Retainer
12.	C2175R	[2]	Stud
13.	R30958	[2]	Lock Plate
14.	14H812	[2]	Nut	3/8"
15.	T22851	[1]	Washer
15.	T68412	[1]	Washer	(USE WITH AT65216 CLUTCH HOUSING)
16.	T25419	[1]	Oil Tube	PUMP OUTLET
17.	T22862	[1]	Adapter Fitting
18.	R26906	[1]	O-Ring
19.	U12547	[1]	O-Ring	(SUB FOR F3171R)
20.	T30754	[1]	Adapter Fitting
21.	T13119	[1]	O-Ring
22.	T25418	[1]	Oil Tube	PUMP INLET
23.	R26149	[1]	Packing
24.	RE13915	[1]	Oil Pump	(MARKED R78835) (SUB FOR AR39182) (MARKED R39326) (ALSO ORDER R53495)
25.	R39327	[1]	Dowel Pin
26.	A4847R	[1]	Washer
27.	R107207	[1]	Gasket	(USE WITH RE50941)
28.	R106727	[1]	Spring
29.	R27053	[1]	Needle Roller
30.	15H560	[1]	Pipe Plug
31.	RE50941	[1]	Plate	(SUB FOR T27772, ALSO ORDER R107207)
