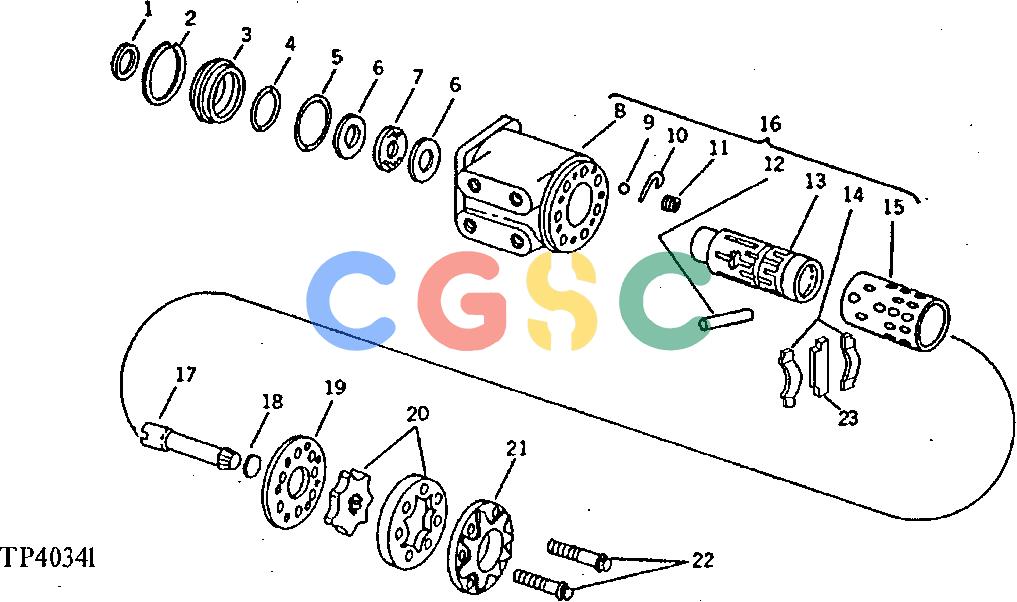

约翰迪尔零件查询410 - BACKHOE, LOADER POWER STEERING VALVE (SERIAL NO. 235786-292510) [01G14]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 703 次

Pos.	Part No	Qty	Parts name	Comments
1.	C15104	[1]	Seal
2.	........	[1]	Snap Ring	(MODEL 001) ( T41837 NO LONGER AVAILABLE FOR SERVICE)
2.	T54324	[1]	Snap Ring	(MODEL 003)
3.	........	[1]	Bushing	(MODEL 001) ( T41835 NO LONGER AVAILABLE FOR SERVICE)
3.	T54323	[1]	Isolator	(MODEL 003)
4.	C15107	[1]	O-Ring
5.	B3690R	[1]	O-Ring
6.	T41836	[2]	Thrust Bearing Race
7.	JD8856	[1]	Needle Bearing
8.	........	[1]	Housing	(SUB AT61101)
9.	400R	[1]	Ball
10.	T41840	[1]	Clip
11.	T41839	[1]	Insert
12.	M4124T	[1]	Dowel Pin
13.	........	[1]	Valve	(SUB AT61101)
14.	........	[6]	Spring	(K1) ( T37261 - NO LONGER AVAILABLE) (SUB AT151668)
15.	........	[1]	Sleeve	(SUB AT61101)
16.	AT40836	[1]	Control	(ALSO ORDER T64310 AND T70321)
17.	T37253	[1]	Drive
18.	T39175	[1]	Washer
19.	........	[1]	Plate	( C10659, NO LONGER AVAILABLE) (SUB FOR T41834) (SUB AT42134)
20.	AT37895	[1]	Gear
21.	T41833	[1]	Cap
22.	E58090	[7]	Screw	(SUB FOR T39174)
23.	T77345	[2]	Spacer	(K1)
...	AT42134	[1]	Motor	(SUB AT101661)
