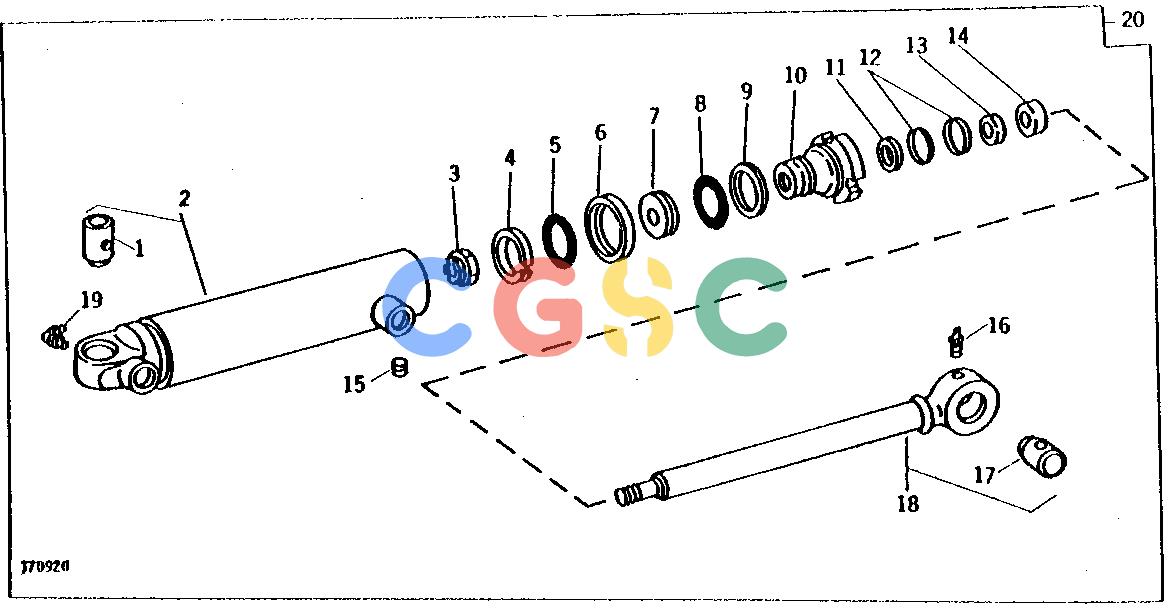

约翰迪尔零件查询410 - BACKHOE, LOADER POWER STEERING CYLINDER (SERIAL NO. 343923- ) [01G19]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
341 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T48206
|
[1] |
Bushing
|
|
| 2. |
AR90732
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 3. |
T25879
|
[1] |
Nut
|
|
| 4. |
R30200
|
[1] |
O-Ring
|
|
| 5. |
E17411
|
[1] |
Washer
|
|
| 6. |
R69498
|
[1] |
Wear Ring
|
|
| 7. |
R69499
|
[1] |
Piston
|
|
| 8. |
P50631
|
[1] |
O-Ring
|
|
| 9. |
R81190
|
[1] |
Back-Up Ring
|
|
| 10. |
R80908
|
[1] |
Guide
|
|
| 11. |
R47154
|
[1] |
O-Ring
|
|
| 12. |
U45847
|
[2] |
Back-Up Ring
|
|
| 13. |
U44950
|
[1] |
Seal
|
|
| 14. |
U41970
|
[1] |
Seal
|
|
| 15. |
22H1077
|
[1] |
Set Screw
|
|
| 16. |
JD7797
|
[1] |
Lubrication Fitting
|
|
| 17. |
T48203
|
[1] |
Bushing
|
|
| 18. |
AR90734
|
[1] |
Hydraulic Cylinder Rod
|
|
| 19. |
JD7806
|
[1] |
Lubrication Fitting
|
|
| 20. |
AR89713
|
[1] |
Hydraulic Cylinder
|
|
