约翰迪尔零件查询410 - BACKHOE, LOADER NON-SERIALIZED HYDRAULIC PUMP 66 CM3 (4 IN.3) (SERIAL NO. -383250) [01H04]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 1009 次

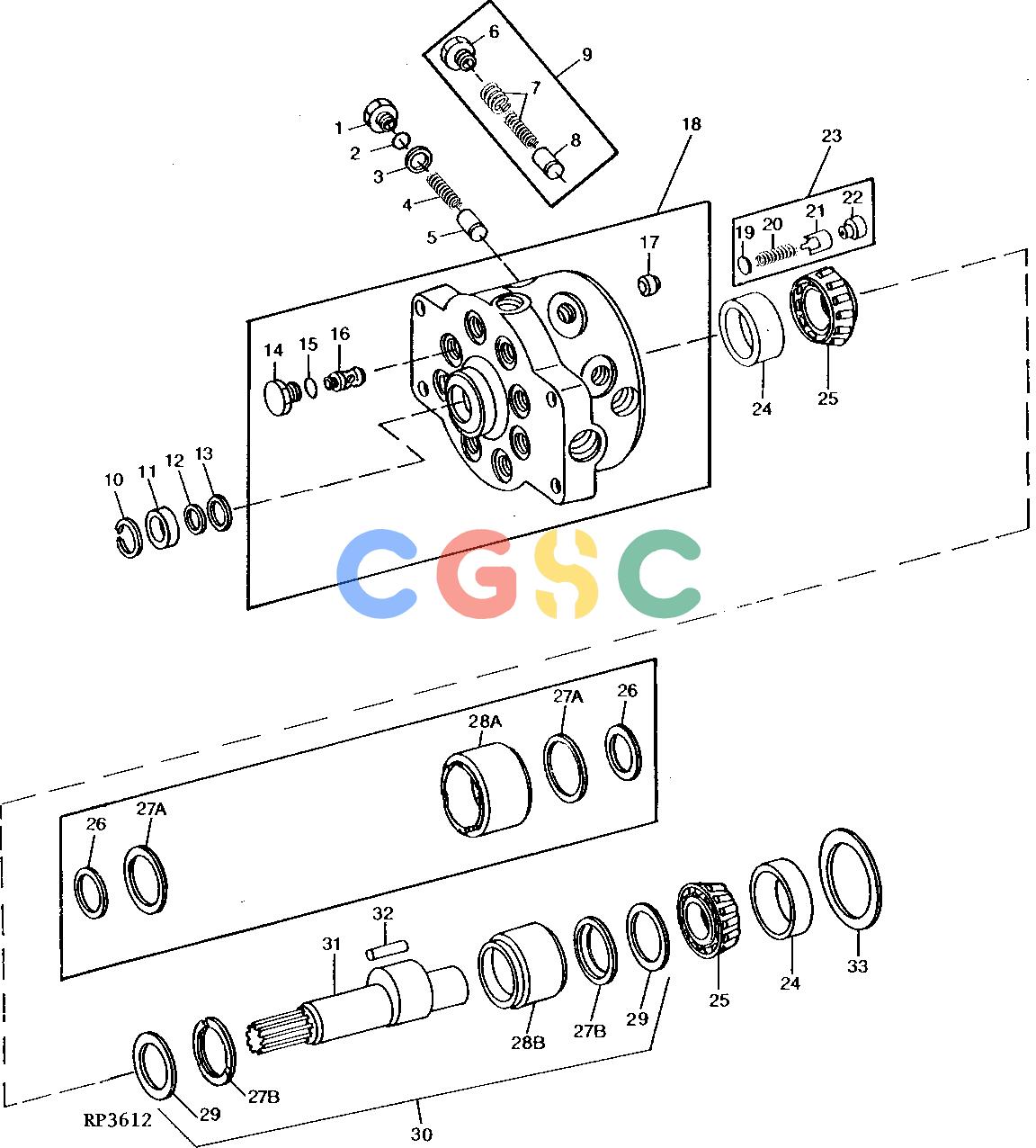

Pos.	Part No	Qty	Parts name	Comments
1.	R75642	[8]	Drain Plug	(SUB FOR R44745)
2.	U12547	[8]	O-Ring	(SUB FOR (8) F3171R)
2.	R56751	[8]	O-Ring
3.	AR101237	[1]	Shield	(SET OF 8) (SUB FOR R56750)
4.	AR55330	[1]	Spring	(SET OF 8) (SUB FOR AR47516)
5.	R51827	[8]	Piston	(SUB RE11814)
6.	R70648	[8]	Drain Plug
7.	AR96408	[1]	Spring	(SET OF 16)
8.	R70976	[8]	Piston
9.	RE11814	[1]	Kit
10.	R26137	[1]	Snap Ring
11.	RE28790	[1]	Seal	(SUB FOR AR40398 OR AR52224)
12.	R56753	[1]	Shim
13.	R39729	[1]	O-Ring
14.	R78293	[8]	Fitting	(SUB FOR R44823)
15.	R27149	[8]	O-Ring
16.	AR53301	[8]	Valve	(INLET)
17.	R105583	[8]	Valve Seat Insert
18.	AR51070	[1]	Housing	(MARKED R48103) (SUB AR101288) (ALSO ORDER P47908)
19.	R49297	[8]	Disk	(SUB FOR R39074)
20.	R39228	[8]	Spring
21.	R48738	[8]	Guide	(SUB FOR R39174)
22.	R83508	[8]	Stop	(SUB FOR R39175, R49298 OR R72886)
23.	RE23382	[8]	Valve	(OUTLET) (SUB FOR AR52785 OR AR96613)
24.	JD8223	[2]	Bearing Cup
25.	JD8192	[2]	Bearing Cone
26.	R45423	[2]	Washer	(SUB RE12038) (ALSO ORDER RE11814)
27A.	R72429	[2]	Washer	(BRONZE) (SUB RE12038) (ALSO ORDER RE11814) (SUB FOR R45424)
27B.	R72507	[2]	Thrust Washer
28A.	R44744	[1]	Bearing Race	(SUB RE12038) (ALSO ORDER RE11814)
28B.	R80558	[1]	Bearing Race	(SUB FOR R72509)
29.	R77903	[2]	Washer	(SUB FOR R45425)
30.	RE12038	[1]	Kit	(ALSO ORDER RE11814) (SUB FOR AR95470)
31.	R44743	[1]	Shaft	(A) (SUB R79156 AND (2) R79151)
32.	R116712	[25]	Needle Roller	(SUB FOR R77904 OR R45422)
33.	R27478	[AR]	Shim	0.15MM (0.006")
33.	R27479	[AR]	Shim	0.25MM (0.010")
...	AR99845	[1]	Hydraulic Pump	(SUB AR101288) (ALSO ORDER P47908) (SUB FOR AR52952)
