约翰迪尔零件查询410 - BACKHOE, LOADER NON-SERIALIZED HYDRAULIC PUMP STROKE CONTROL VALVE 66 CM3 (4 IN.3) (SERIAL NO. -383250) [01H06]EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询410 - BACKHOE, LOADER NON-SERIALIZED HYDRAULIC PUMP STROKE CONTROL VALVE 66 CM3 (4 IN.3) (SERIAL NO. -383250) [01H06]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 357 次

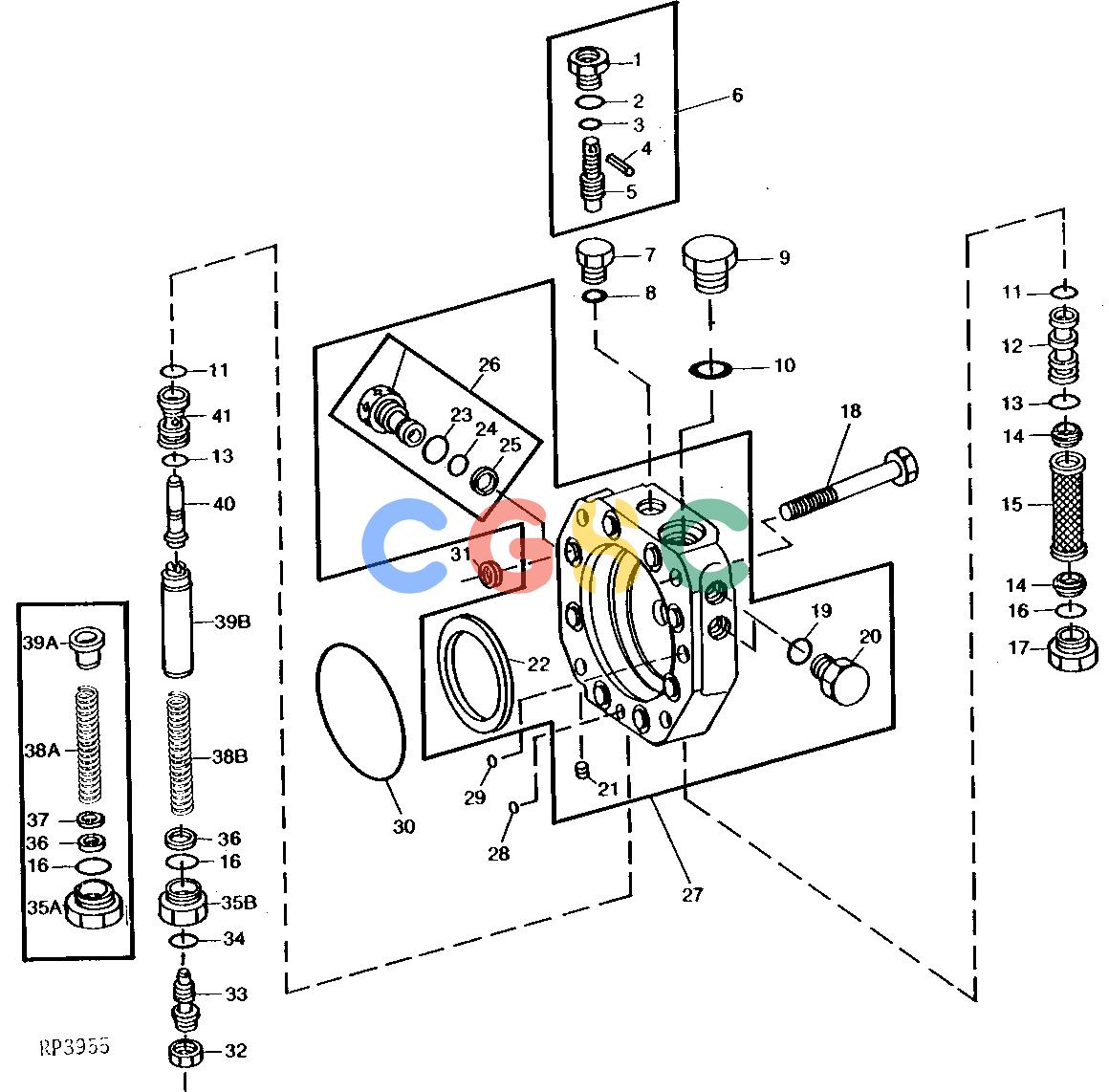

Pos.	Part No	Qty	Parts name	Comments
1.	R27475	[1]	Fitting
2.	R26448	[1]	O-Ring
3.	A4365R	[1]	O-Ring
4.	34H254	[1]	Spring Pin	1/8" X 1-1/2"
5.	R27171	[1]	Screw
6.	AR33249	[1]	Screw	(MANUAL DESTROKE)
7.	R27218	[1]	Fitting Plug	(LESS MANUAL DESTROKE)
8.	R26448	[1]	O-Ring	(LESS MANUAL DESTROKE)
9.	R27474	[1]	Drain Plug
10.	R26906	[1]	O-Ring
11.	R27564	[2]	O-Ring
12.	R70335	[1]	Sleeve	(SUB FOR R53693)
13.	R27166	[2]	O-Ring
14.	R27174	[2]	Packing
15.	R27173	[1]	Filter Element
16.	U12547	[2]	O-Ring	(SUB FOR (2) F3171R)
17.	R27175	[1]	Drain Plug
18.	19H3520	[4]	Cap Screw	1/2" X 3-1/4"
19.	R26287	[2]	O-Ring
20.	R27216	[2]	Drain Plug
21.	15H560	[1]	Pipe Plug	1/16"
22.	R49072	[1]	Washer	(NOT USED IN ALL APPLICATIONS)
23.	R26375	[1]	O-Ring
24.	T40308	[1]	O-Ring
25.	T57374	[1]	Back-Up Ring
26.	AR90378	[1]	Plug	(SUB FOR AR52495)
27.	AR38714	[1]	Housing	(MARKED R49071) (SUB FOR AR52494 OR RE13611)
28.	R56755	[1]	Washer	(SUB FOR A4847R)
29.	R56756	[1]	O-Ring	(SUB FOR A3917R) (SUB R63548)
30.	R56757	[1]	O-Ring	(SUB FOR R26621)
31.	R107239	[8]	Packing	(SUB FOR R56754 OR (8) R69279)
32.	14H1021	[1]	Nut	7/16"
33.	AR52254	[1]	Set Screw
34.	R28782	[1]	O-Ring
35A.	R55907	[1]	Fitting	(SUB R28781, R31781 AND R71321)
35B.	R28781	[1]	Fitting
36.	R42260	[1]	Washer
37.	R48808	[1]	Washer	(SUB R28781, R31781 AND R71321)
38A.	R55908	[1]	Spring	(SUB R28781, R31781 AND R71321)
38B.	R31781	[1]	Spring
39A.	R71563	[1]	Guide	(SUB R28781, R31781 AND R71321) (SUB FOR R55909)
39B.	R71321	[1]	Guide	(SUB FOR R32344)
40.	R70559	[1]	Control Valve	(SUB RE10712, R27166 AND R41057) (SUB FOR R27472 OR R65194)
41.	R69262	[1]	Sleeve	(SUB RE10712, R27166 AND R41057) (SUB FOR R27471, R58499 OR R65192)
...	AR99845	[1]	Hydraulic Pump	(ALSO ORDER P47908) (SUB FOR AR52952) (SUB AR101288)
