约翰迪尔零件查询410 - BACKHOE, LOADER SERIALIZED REPLACEMENT HYDRAULIC PUMP STROKE CONTROL VALVE 65 CM3 (4 IN.3) (SERIAL NO. 383251- EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询410 - BACKHOE, LOADER SERIALIZED REPLACEMENT HYDRAULIC PUMP STROKE CONTROL VALVE 65 CM3 (4 IN.3) (SERIAL NO. 383251- EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 478 次

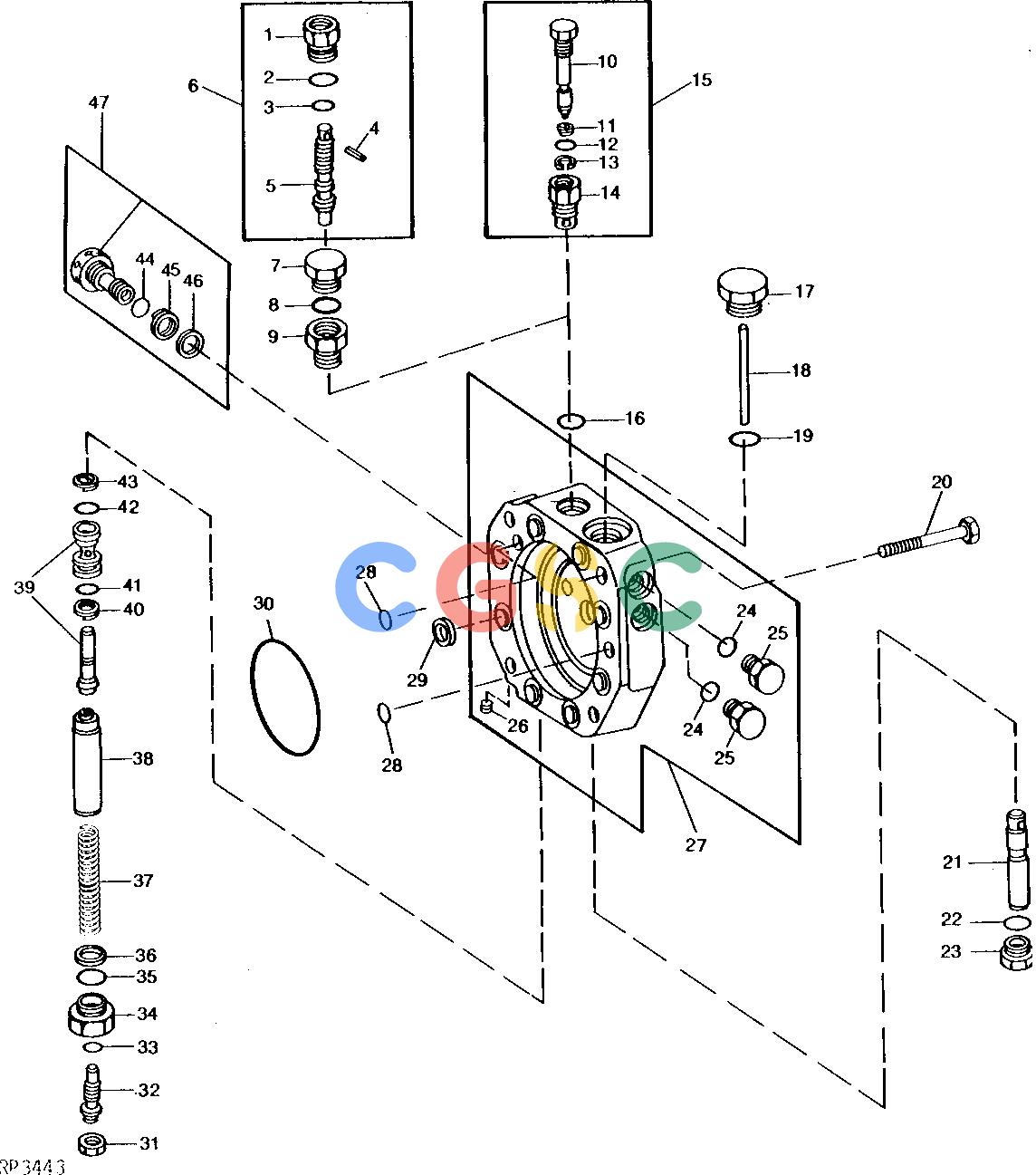

Pos.	Part No	Qty	Parts name	Comments
1.	R27475	[1]	Fitting
2.	R26448	[1]	O-Ring
3.	A4365R	[1]	O-Ring
4.	34H254	[1]	Spring Pin	1/8" X 1-1/2"
5.	R75879	[1]	Screw
6.	AR96625	[1]	Field Installation Kit	(A) (MANUAL DESTROKE) (SUB RE13271)
7.	R27218	[1]	Fitting Plug	(LESS MANUAL DESTROKE)
8.	R26448	[1]	O-Ring	(LESS MANUAL DESTROKE)
9.	R70617	[1]	Pipe Plug
10.	R79266	[1]	Screw
11.	R36358	[1]	Back-Up Ring
12.	R34802	[1]	O-Ring
13.	R79268	[1]	Snap Ring
14.	R79267	[1]	Plug
15.	RE13271	[1]	Screw	(A) (MANUAL DESTROKE)
16.	R26906	[1]	O-Ring
17.	R75642	[1]	Drain Plug
18.	R75564	[1]	Pin
19.	R56751	[1]	O-Ring
20.	19H3520	[4]	Cap Screw	1/2" X 3-1/4"
21.	R74225	[1]	Sleeve
22.	R26375	[1]	O-Ring
23.	R73736	[1]	Fitting Plug
24.	R26448	[2]	O-Ring
25.	R75376	[2]	Drain Plug
26.	15H560	[1]	Pipe Plug	1/16"
27.	AR101632	[1]	Housing	(MARKED R77712)
28.	R56755	[2]	Washer
29.	R107239	[8]	Packing	(SUB FOR (8) R69279)
30.	R56757	[1]	O-Ring
31.	14H1021	[1]	Nut	7/16"
32.	AR52254	[1]	Set Screw
33.	R28782	[1]	O-Ring
34.	R28781	[1]	Fitting
35.	U12547	[1]	O-Ring	(SUB FOR F3171R)
36.	R42260	[1]	Washer
37.	R31781	[1]	Spring
38.	R71321	[1]	Guide
39.	RE10712	[1]	Control Valve
40.	R41057	[1]	Back-Up Ring
41.	R27166	[1]	O-Ring
42.	R27564	[1]	O-Ring
43.	R75938	[1]	Thrust Washer
44.	R26375	[1]	O-Ring
45.	T40308	[1]	O-Ring
46.	T57374	[1]	Back-Up Ring
47.	AR90378	[1]	Plug	(LESS ELECTRIC DESTROKE SOLENOID)
...	AR101288	[1]	Hydraulic Pump	(MODEL JD1)
