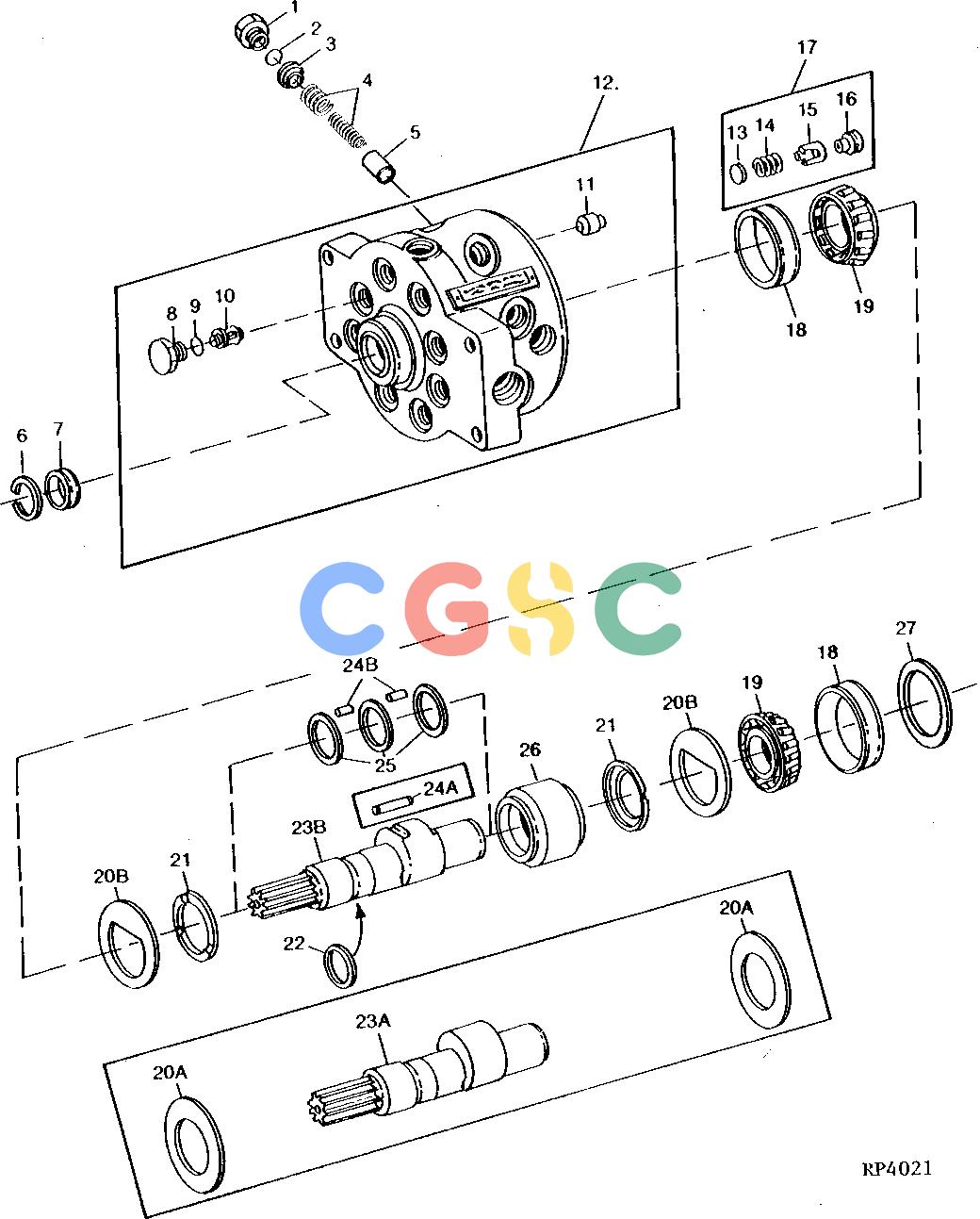

Pos.	Part No	Qty	Parts name	Comments
1.	R70648	[8]	Drain Plug
2.	R56751	[8]	O-Ring
3.	AR101237	[1]	Shield	(SET OF 8)
4.	AR96408	[1]	Spring	(SET OF 16)
5.	R70976	[8]	Piston
6.	R26137	[1]	Snap Ring
7.	RE28790	[1]	Seal	(SUB FOR AR52224)
8.	R78293	[8]	Fitting
9.	R27149	[8]	O-Ring
10.	AR53301	[8]	Valve	(INLET)
11.	R105583	[8]	Valve Seat Insert
12.	RE11811	[1]	Housing	(MODEL TE1) (MARKED R74914)
13.	R49297	[8]	Disk
14.	R39228	[8]	Spring
15.	R48738	[8]	Guide
16.	R83508	[8]	Stop	(SUB FOR R72886)
17.	RE23382	[8]	Valve	(OUTLET) (SUB FOR AR96613)
18.	JD8223	[2]	Bearing Cup
19.	JD8192	[2]	Bearing Cone
20A.	R77903	[2]	Washer	(SUB FOR R45425)
20B.	R79151	[2]	Lock Washer	(USE WITH R79154)
21.	R72507	[2]	Thrust Washer
22.	R77611	[1]	Sealing Washer	(SEALING) (SUB FOR R68252 OR RE11777)
23A.	R71599	[1]	Shaft	(SUB R79154) (ALSO ORDER (2) R79151)
23B.	R79154	[1]	Shaft
24A.	R45422	[25]	Needle Roller	(SUB (50) R116713 AND (3) R85557)
24B.	R85558	[50]	Needle Roller	(SUB R116713)
25.	R85557	[3]	Washer
26.	R80558	[1]	Bearing Race	(SUB FOR R72509)
27.	R27478	[AR]	Shim	0.15MM (.006")
27.	R27479	[AR]	Shim	0.25MM (.010")
...	AR101288	[1]	Hydraulic Pump
