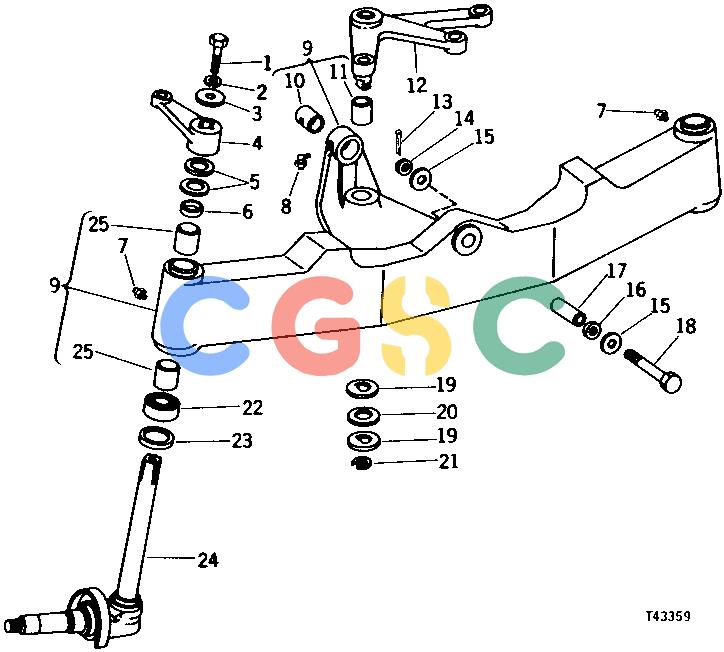

约翰迪尔零件查询410 - BACKHOE, LOADER FRONT AXLE, SPINDLE AND KNUCKLE ASSEMBLY (SERIAL NO. -235785) [01I06]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
340 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19H1439
|
[2] |
Cap Screw
|
|
| 2. |
12H294
|
[2] |
Lock Washer
|
|
| 3. |
R20135
|
[2] |
Washer
|
|
| 4. |
T31751
|
[1] |
Lever
|
|
| 4. |
T31752
|
[1] |
Lever
|
|
| 5. |
R31251
|
[AR] |
Washer
|
|
| 6. |
T31750
|
[2] |
Washer
|
|
| 7. |
T162396
|
[2] |
Lubrication Fitting
|
|
| 8. |
JD7799
|
[1] |
Lubrication Fitting
|
|
| 9. |
AT30800
|
[1] |
Front Axle
|
|
| 10. |
T23170
|
[1] |
Bushing
|
|
| 11. |
T23118
|
[2] |
Bushing
|
|
| 12. |
AT32476
|
[1] |
Crank
|
|
| 13. |
11M7030
|
[1] |
Cotter Pin
|
|
| 14. |
14H534
|
[1] |
Nut
|
|
| 15. |
T25922
|
[2] |
Washer
|
|
| 15. |
T151797
|
[2] |
Washer
|
|
| 16. |
T25921
|
[AR] |
Shim
|
|
| 17. |
T21669
|
[1] |
Bushing
|
|
| 18. |
T25840
|
[1] |
Cap Screw
|
|
| 19. |
T23229
|
[2] |
Washer
|
|
| 20. |
T23228
|
[AR] |
Shim
|
|
| 21. |
F534R
|
[1] |
Snap Ring
|
|
| 22. |
JD8412
|
[2] |
Thrust Bearing
|
|
| 23. |
T31749
|
[2] |
Washer
|
|
| 24. |
AT30796
|
[2] |
Knuckle
|
|
| 25. |
R52188
|
[4] |
Bushing
|
|
