约翰迪尔零件查询410 - BACKHOE, LOADER BRAKE VALVE AND OIL LINES (SERIAL NO. -146709) [01I12]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 461 次

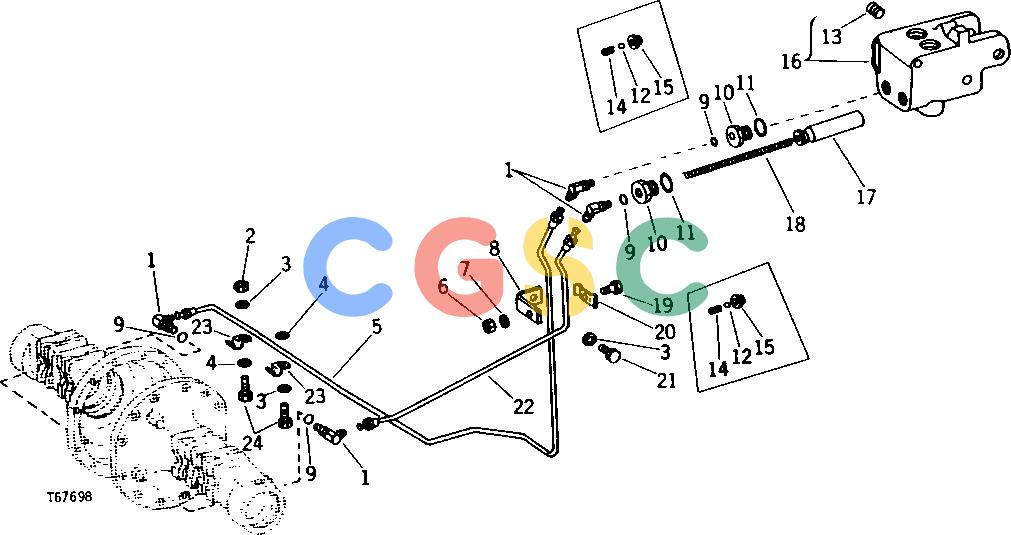

Pos.	Part No	Qty	Parts name	Comments
1.	AT32335	[4]	Elbow Fitting	(SUB FOR AR26746)
2.	14H812	[1]	Nut	3/8"
3.	12H304	[3]	Lock Washer	3/8"
4.	24M7101	[2]	Washer	11 X 34 X 3 MM
5.	AT32722	[1]	Oil Line	(SUB AT41227) (SUB FOR AT39633)
6.	14H786	[1]	Nut	1/4"
7.	12H302	[1]	Lock Washer	1/4"
8.	T33548	[1]	Bracket	(SUB T38500)
9.	R26287	[4]	O-Ring
10.	T21813	[2]	Seat
11.	U12547	[2]	O-Ring	(SUB FOR (2) F3171R)
12.	400R	[2]	Ball	1/4"
13.	15H560	[1]	Pipe Plug	1/16"
14.	T21814	[2]	Compression Spring
15.	T21815	[2]	Retainer
16.	AT22968	[1]	Housing	(MARKED U41509) (SUB AR53493)
16.	AR53493	[1]	Housing	(MARKED R49664)
17.	........	[2]	Piston	(A) R73933 NO LONGER AVAILABLE, (SUB FOR T22100, THIS APPLICATION) (SUB AT184434)
18.	T21817	[2]	Spring
19.	19H1948	[1]	Cap Screw	1/4" X 3/4"
20.	........	[1]	Clamp	( P47492, NO LONGER AVAILABLE)
21.	19H2676	[1]	Cap Screw	3/8" X 1"
22.	AT32723	[1]	Brake Line	(SUB AT41224)
23.	R27528	[2]	Clamp
24.	19H1648	[2]	Cap Screw	3/8" X 3/4"
