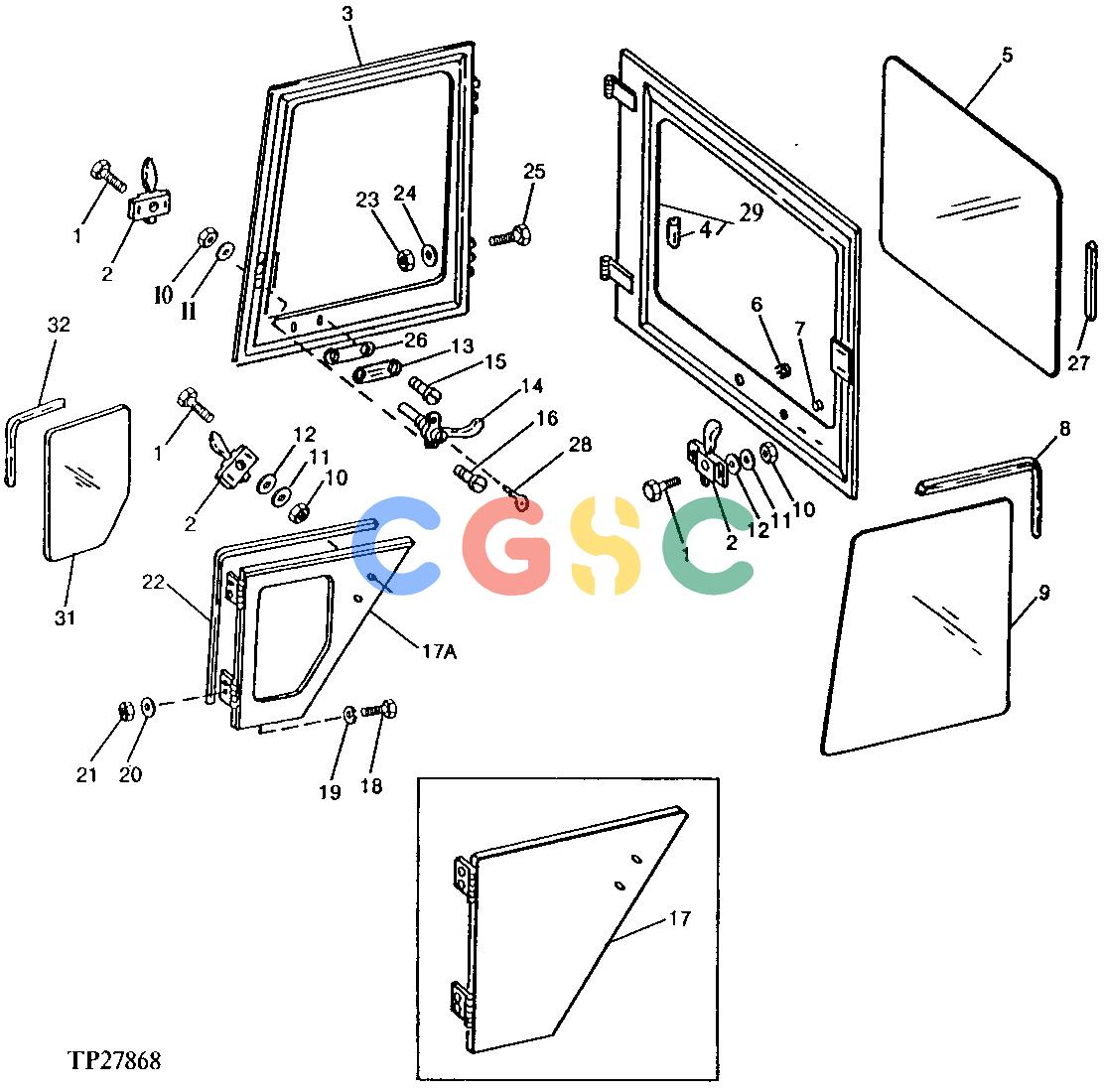

Pos.	Part No	Qty	Parts name	Comments
1.	21H1317	[10]	Screw	0.190" X 5/8"
2.	U43015	[3]	Latch	(L.H DOOR)(MARKED R) (SUB FOR AT36374)
2.	U43014	[2]	Latch	(R.H. DOOR)(MARKED L)
3.	AT36372	[1]	Door	UPPER FRONT, L.H.
3.	AT36930	[1]	Door	UPPER FRONT, R.H.
4.	T75782	[1]	Isolator	(CUT-TO-LENGTH) (SUB FOR T51766) REAR
5.	T37622	[1]	Windowpane
6.	M2047T	[1]	Plug	(WITHOUT REAR WINDSHIELD WIPER)
7.	R27983	[1]	Plug	(WITHOUT REAR WINDSHIELD WIPER)
8.	........	[2]	Isolator	(MAKE FROM T71383) (SUB FOR U43032)
9.	T37618	[1]	Windowpane	L.H.
9.	T38247	[1]	Windowpane	R.H.
10.	14H778	[10]	Nut	(A) 0.190"
10.	14H778	[6]	Nut	(A) 0.190"
11.	12H246	[10]	Lock Washer	(A) 0.190"
11.	12H246	[6]	Lock Washer	(A) 0.190"
12.	24H1283	[10]	Washer	7/32" X 1/2" X 0.049"
13.	T37932	[2]	Latch	(SUB AT57848 RETAINER ARM AND LATCH KIT)
14.	R46269	[2]	Handle	(A)
14.	AT54925	[1]	Handle	(A) (ALSO ORDER AT195302 STARTER SWITCH KEY AND FOUR U45916 LOCK NUTS)
15.	21H1026	[4]	Screw	1/4" X 3/4"
16.	21H1193	[4]	Screw	0.190" X 5/8"
17.	AT36371	[1]	Door	L.H. (SUB AT73336) (ALSO ORDER T75380 AND T71383)
17.	AT36927	[1]	Door	L.H. (SUB AT73336) (ALSO ORDER T75380 AND T71383)
17.	AT36931	[1]	Door	R.H. (SUB AT73337) (ALSO ORDER T75380 AND T71383) (NOT ILLUSTRATED)
17A.	AT73336	[1]	Door	L.H.
17A.	AT73337	[1]	Door	R.H. (NOT ILLUSTRATED)
18.	19H1919	[4]	Cap Screw	1/4" X 5/8"
19.	24H1286	[8]	Washer	9/32" X 1/2" X 1/16"
20.	12H302	[8]	Lock Washer	1/4"
21.	14H786	[8]	Nut	1/4"
22.	U43011	[1]	Weatherstrip
23.	14H812	[4]	Nut	3/8"
24.	12H304	[4]	Lock Washer	3/8"
25.	19H3239	[4]	Cap Screw	3/8" X 1-1/4"
26.	T37933	[2]	Pad	(SUB AT57848 RETAINER ARM AND LATCH KIT)
27.	AT36367	[1]	Weatherstrip
28.	T50805	[1]	Key	(A)
28.	AT195302	[1]	Key	(A) (SUB FOR AR51481 AND AT145929)
29.	AT36375	[1]	Frame	REAR
29.	........	[1]	Window	REAR ( AT36928 USE IF AVAILABLE)
30.	U45916	[4]	Lock Nut	(A)
31.	T75380	[2]	Windowpane
32.	........	[2]	Isolator	WINDOW (MAKE FROM T71383)
...	AT42733	[1]	Cab	(INCLUDES ALL PARTS ON THIS PAGE AND PAGES 30-9, 60-11, 65-5, 65-5A, AND ALL PARTS IDENTIFIED BY (A) ON PAGE 60-12 AND AT49552 RIGHT SEALING STRIP, AND AT49553 LEFT SEALING STRIP) (SUB FOR AT35586)
