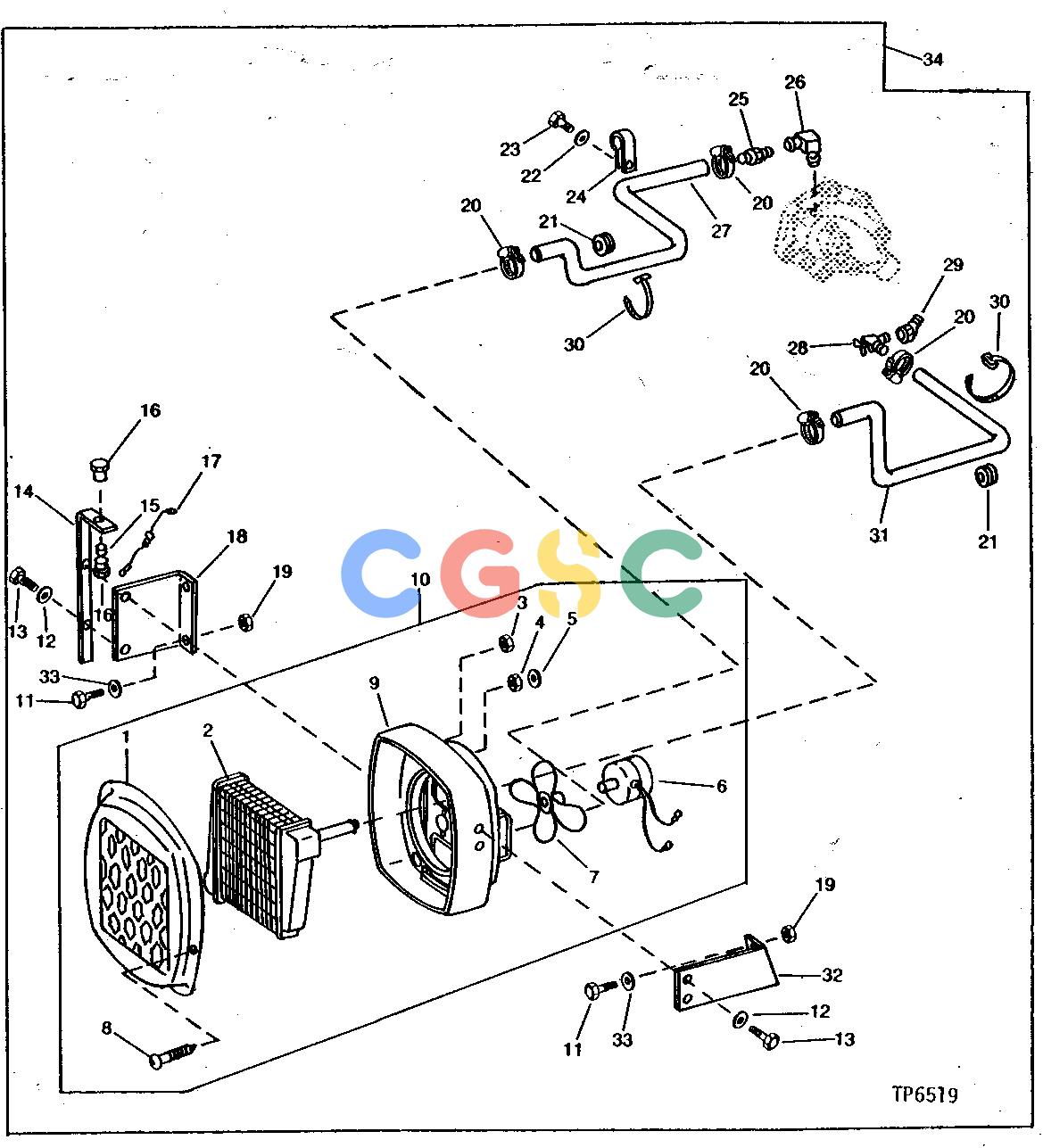

约翰迪尔零件查询410 - BACKHOE, LOADER CAB HEATER AND HOSES (SERIAL NO. 388073- ) [02C01]EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询410 - BACKHOE, LOADER CAB HEATER AND HOSES (SERIAL NO. 388073- ) [02C01]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 1006 次

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Grille	( AU43860 NO LONGER AVAILABLE)
2.	AT140290	[1]	Heater	(SUB FOR AT37166)
3.	14H608	[2]	Nut	0.216"
4.	14H605	[2]	Nut	0.164"
5.	24H1283	[2]	Washer	7/32" X 1/2" X 0.049"
6.	T55563	[1]	Electric Motor	(ALSO ORDER AT112810) (SUB FOR AU43858)
7.	AT114617	[1]	Fan Blade	(SUB FOR AT39989, AT114617 AND AT112810)
7.	AT112810	[1]	Fan	(USE WITH T55563)
8.	U46516	[2]	Screw
9.	........	[1]	Case	( AT63073 NO LONGER AVAILABLE)
10.	AT140290	[1]	Heater	(SUB FOR AT63076 OR AT114647)
11.	19H2284	[4]	Cap Screw	3/8" X 7/8"
12.	12H302	[4]	Lock Washer	1/4"
13.	19H1919	[4]	Cap Screw	1/4" X 5/8"
14.	T75285	[1]	Angle
15.	AA4927R	[1]	Bulb
16.	AU42189	[1]	Switch
17.	AT73113	[1]	Fuse Holder
18.	T75286	[1]	Bracket
19.	14H812	[4]	Nut	3/8"
20.	AR21837	[4]	Clamp
21.	H23197	[2]	Grommet
22.	12H317	[1]	Lock Washer	9/16"
23.	19H3649	[1]	Cap Screw	9/16" X 1"
24.	........	[1]	Clip	( R29131 NO LONGER AVAILABLE)
25.	R41985	[1]	Fitting
26.	T37041	[1]	Elbow Fitting
27.	T75284	[1]	Hose
28.	AT35831	[1]	Drain Valve
29.	T37027	[1]	Fitting	45°
30.	H77698	[2]	Tie Band	(SUB FOR T44946)
31.	T75284	[1]	Hose
32.	T75287	[1]	Bracket
33.	24H1305	[4]	Washer	13/32" X 13/16" X 0.065"
34.	AT73383	[1]	Heater
