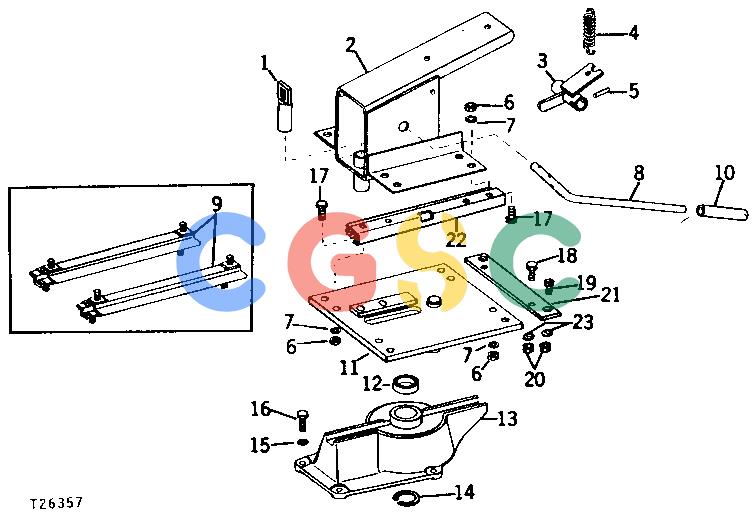

约翰迪尔零件查询410 - BACKHOE, LOADER SEAT LOWER SUPPORT AND SWIVEL [02C11]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 578 次

Pos.	Part No	Qty	Parts name	Comments
1.	AT34458	[1]	Pin Fastener
2.	AT32961	[1]	Support	(SUB AT36734, (2) AT36733 AND (8) T38065)
2.	AT36734	[1]	Support	LOWER
2.	AT57457	[1]	Support	LOWER
3.	AT32963	[1]	Lever
4.	T15508	[1]	Spring
5.	34H298	[1]	Spring Pin	7/32" X 1-1/8"
6.	14H650	[8]	Nut	5/16"
7.	12H303	[8]	Lock Washer	5/16"
8.	T34409	[1]	Pin Fastener
9.	AT32959	[1]	Adjuster	(SUB (2) AT36733, (2) T38066, (4) 21H1068, (8) 14H785, (8) 12H303, (4) 19H2705 AND (4) T38065)
10.	T33882	[1]	Grip
11.	AT32962	[1]	Plate
11.	AT57456	[1]	Plate
12.	JD8406	[1]	Bearing
13.	T33868	[1]	Base
14.	T14648	[1]	Snap Ring
15.	12H304	[4]	Lock Washer	3/8"
16.	19H2633	[4]	Cap Screw	3/8" X 1-1/2"
17.	T38065	[8]	Screw
18.	19H1905	[4]	Cap Screw	5/16" X 1", (USED WITH T38066)
19.	21H1068	[4]	Screw	5/16" X 5/8", (USED WITH T38066)
20.	14H785	[8]	Nut	5/16", (USED WITH T38066)
21.	T38066	[2]	Adapter Fitting	(USED WHEN AT36733 HAS BEEN INSTALLED FOR AT32959)
22.	AT36733	[2]	Adjuster
23.	12H303	[4]	Lock Washer	5/16", (USED WITH T38066)
