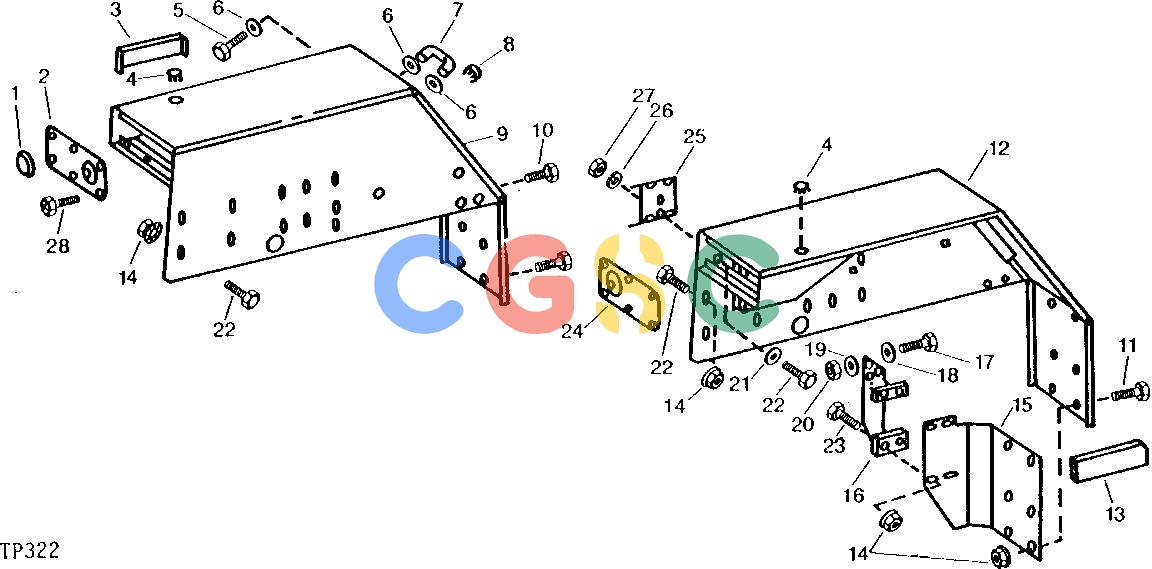

Pos.	Part No	Qty	Parts name	Comments
1.	T33745	[2]	Reflector
2.	T33854	[1]	Plate	(WITHOUT REVERSE WARNING ALARM)
2.	AT56980	[1]	Plate	(WITH REVERSE WARNING ALARM)
3.	T51218	[1]	Isolator	LEFT
4.	H84660	[2]	Plug	(SUB FOR P48093) (WITH CANOPY)
5.	19H1648	[2]	Cap Screw	3/8" X 3/4", (WITHOUT CAB)
6.	24H1305	[4]	Washer	13/32" X 13/16" X 0.065", (WITHOUT CAB)
7.	R31618	[1]	Handle	(WITHOUT CAB)
8.	R42451	[4]	Plug	(WITH CAB)
9.	AT44776	[1]	Fender	(SUB FOR AT32967)
10.	19H3239	[4]	Cap Screw	3/8" X 1-1/4"
11.	19H2676	[8]	Cap Screw	3/8" X 1"
12.	AT44775	[1]	Fender	(SUB FOR AT32966)
13.	T51219	[1]	Isolator	RIGHT
14.	N10215	[24]	Lock Nut
15.	T33859	[1]	Support	R.H.
15.	T33860	[1]	Support	L.H. (NOT ILLUSTRATED)
16.	AT32968	[2]	Brace
17.	19H2735	[4]	Cap Screw	1/2" X 2", (CUSHION MOUNT PLATFORM)
17.	19H2993	[4]	Cap Screw	1/2" X 1-1/2", (RIGID MOUNT PLATFORM)
18.	24H1625	[4]	Washer	17/32" X 1" X 0.120", (RIGID MOUNT PLATFORM)
19.	12H301	[4]	Lock Washer	1/2"
20.	14H1040	[4]	Nut	1/2", (SUB FOR 14H809)
21.	24H1652	[2]	Washer	13/32" X 11/16" X 7/64"
22.	19H2676	[14]	Cap Screw	3/8" X 1", (CUSHION MOUNT PLATFORM)
22.	19H2284	[12]	Cap Screw	3/8" X 7/8", RIGID MOUNT PLATFORM
22.	19H3239	[12]	Cap Screw	3/8" X 1-1/4", (PROTECTIVE FRAME TO FENDERS)
23.	19H988	[4]	Cap Screw	3/8" X 1-1/4"
24.	T33854	[1]	Plate	REAR
25.	T122182	[1]	Bracket	(SUB FOR U41503)
26.	12H304	[1]	Lock Washer	3/8"
27.	14H812	[1]	Nut	3/8"
28.	R52760	[12]	Screw
