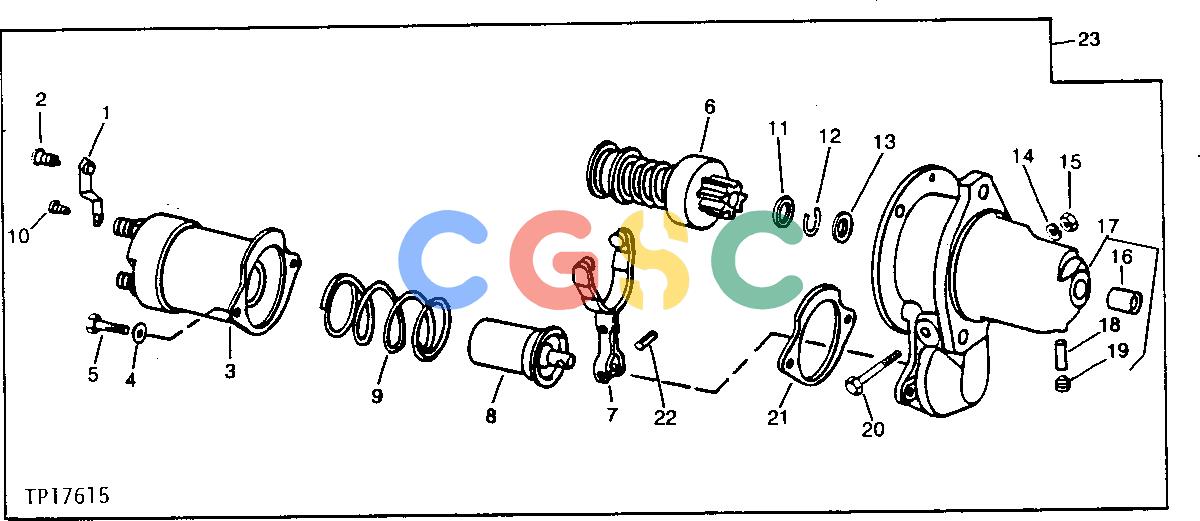

约翰迪尔零件查询410 - BACKHOE, LOADER REPLACEMENT STARTING MOTOR DRIVE AND SWITCH ASSEMBLY [02E19]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
391 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R57025
|
[1] |
Bracket
|
|
| 2. |
37H91
|
[1] |
Screw
|
|
| 3. |
AM39968
|
[1] |
Solenoid
|
|
| 4. |
12H302
|
[2] |
Lock Washer
|
|
| 5. |
21H1142
|
[2] |
Screw
|
|
| 6. |
AR54923
|
[1] |
Starter Motor Drive
|
|
| 7. |
T18113
|
[1] |
Shifter
|
|
| 8. |
AM39970
|
[1] |
Plunger
|
|
| 9. |
R81176
|
[1] |
Compression Spring
|
|
| 10. |
T15564
|
[1] |
Screw
|
|
| 11. |
R11116
|
[1] |
Spacer
|
|
| 12. |
R11117
|
[1] |
Snap Ring
|
|
| 13. |
T24539
|
[1] |
Washer
|
|
| 14. |
12H303
|
[1] |
Lock Washer
|
|
| 15. |
14H611
|
[1] |
Nut
|
|
| 16. |
R57029
|
[1] |
Bushing
|
|
| 17. |
RE19193
|
[1] |
Housing
|
|
| 18. |
R81175
|
[1] |
Wick
|
|
| 19. |
R81174
|
[1] |
Cap
|
|
| 20. |
T11672
|
[1] |
Cap Screw
|
|
| 21. |
T17058
|
[1] |
Gasket
|
|
| 22. |
34H279
|
[1] |
Spring Pin
|
|
| 23. |
........
|
[1] |
Drive
|
|
