约翰迪尔零件查询410 - BACKHOE, LOADER DISTRIBUTOR, COIL, SPARK PLUGS AND CABLES [02E24]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 673 次

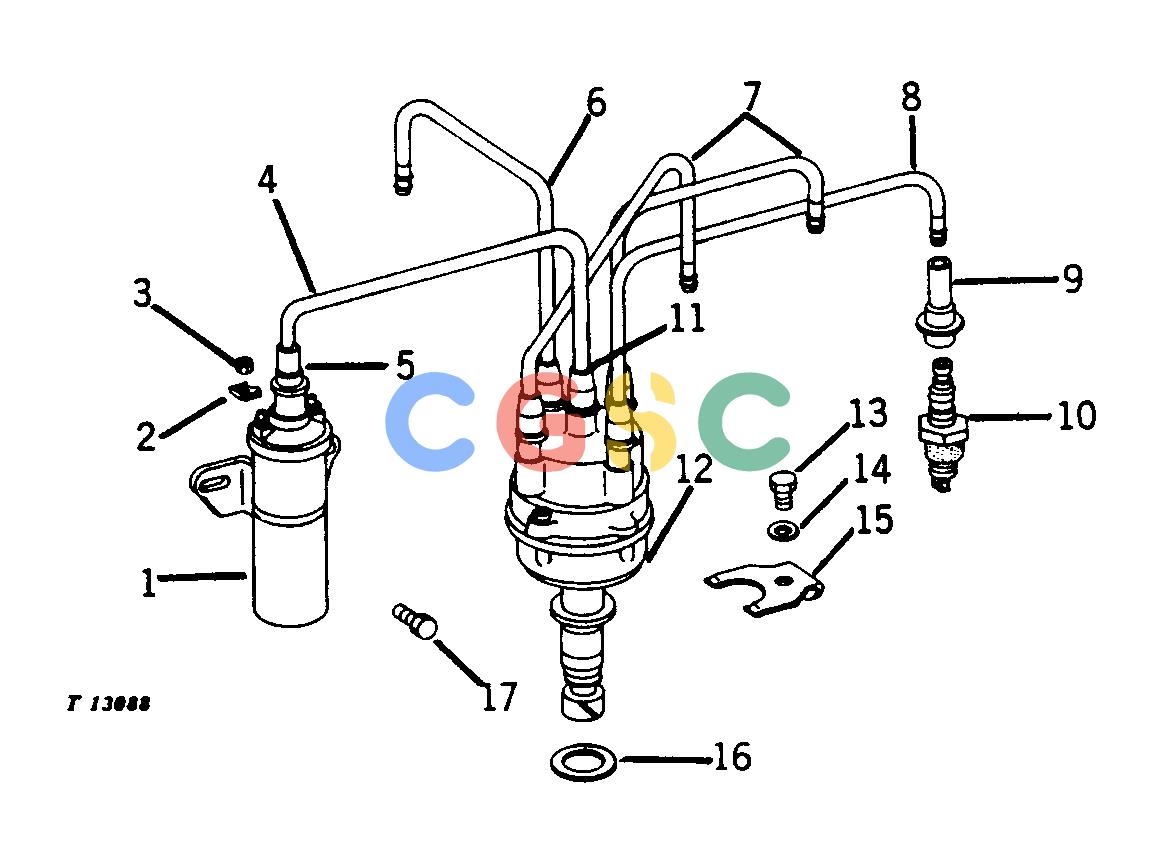

Pos.	Part No	Qty	Parts name	Comments
1.	AT14385	[1]	Electrical Coil	(PRESTOLITE NO. 200627)
2.	12H246	[2]	Lock Washer	0.190", (SUB FOR T18836)
3.	14H631	[2]	Nut	0.190"
4.	........	[1]	Wire	229 MM (9") (MAKE FROM ONE R32006, TWO R32012, ONE A4159R AND ONE A3539R)
5.	A4159R	[1]	Boot
6.	........	[1]	Wiring Lead	203 MM (8") (MAKE FROM ONE R32006, ONE R32012, ONE R32013, ONE A3539R AND ONE T20115) (CYLINDER NO. 3)
7.	........	[1]	Wiring Lead	292 MM (11-1/2") (MAKE FROM ONE R32006, ONE R32012, ONE R32013, ONE A3539R AND ONE T20115) (CYLINDERS NO. 2 AND NO. 4)
8.	........	[1]	Wiring Lead	340 MM (13") (MAKE FROM ONE R32006, ONE R32012, ONE R32013, ONE A3539R AND ONE T20115) (CYLINDER NO. 1)
9.	T20115	[4]	Boot
10.	AT21177	[4]	Spark Plug	(CHAMPION NO. N-6) (HEAVY-DUTY SERVICE)
10.	AT21343	[4]	Spark Plug	(CHAMPION NO. N-11Y) (MEDIUM-DUTY SERVICE)
10.	TY6066	[4]	Spark Plug	(PRESTOLITE NO. 14G-3) (HEAVY-DUTY SERVICE) (SUB FOR AT21658)
11.	A3539R	[1]	Elec. Connector Accessory
12.	AT21351	[1]	Ignition Distributor	(PRESTOLITE NOS. IBT-4101S AND IBT-4101U)
13.	19H2705	[1]	Cap Screw	5/16" X 1"
14.	12H303	[1]	Lock Washer	5/16"
15.	T20113	[1]	Clamp
16.	T20112	[1]	Gasket
17.	19H2020	[2]	Cap Screw	5/16" X 1/2"
