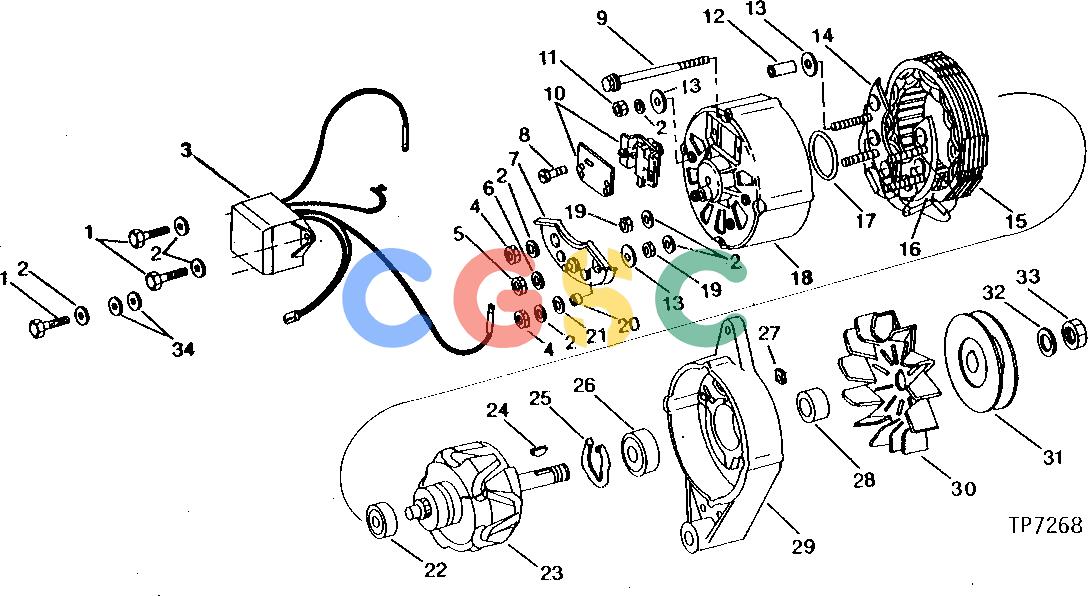

Pos.	Part No	Qty	Parts name	Comments
1.	R44008	[3]	Screw
2.	12H295	[9]	Lock Washer	0.190"
3.	AR78298	[1]	Voltage Regulator	(MOTOROLA NO. 8RF2014C) (SUB FOR AR38459 AND AR52927)
4.	14H778	[2]	Nut	0.190"
5.	14H786	[1]	Nut	1/4"
6.	12H297	[1]	Lock Washer	1/4"
7.	R39800	[1]	Diode
8.	37H47	[2]	Screw	NO. 8 X 1/2"
9.	R15045	[4]	Screw
10.	R15026	[1]	Brush
11.	14H778	[2]	Nut	0.190"
12.	R15035	[2]	Sleeve
13.	R15036	[5]	Washer
14.	R15023	[1]	Diode	POSITIVE
15.	R39802	[1]	Stator
16.	R15024	[1]	Diode	NEGATIVE
17.	R15030	[1]	O-Ring
18.	R38374	[1]	Housing	REAR
19.	14H778	[2]	Nut	0.190"
20.	R39803	[1]	Washer
21.	R39804	[1]	Washer
22.	AT23189	[1]	Ball Bearing
23.	R39801	[1]	Rotor
24.	26H9	[1]	Shaft Key	1/8" X 5/8"
25.	R15029	[1]	Retainer	FRONT
26.	JD9449	[1]	Ball Bearing	(SUB FOR AT23188)
27.	T23610	[4]	Nut
28.	R15038	[1]	Spacer
29.	R15033	[1]	Housing
30.	R15027	[1]	Fan
31.	T24474	[1]	Pulley
32.	12H294	[1]	Lock Washer	5/8"
33.	14H866	[1]	Nut	5/8"
34.	24H1283	[2]	Washer	7/32" X 1/2" X .048"
...	AR40420	[1]	Alternator	55 AMP, LESS PULLEY AND REGULATOR
