约翰迪尔零件查询410 - BACKHOE, LOADER 7/8-CUBIC YARD DROTT 4-IN-1 BUCKET [02F20]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 249 次

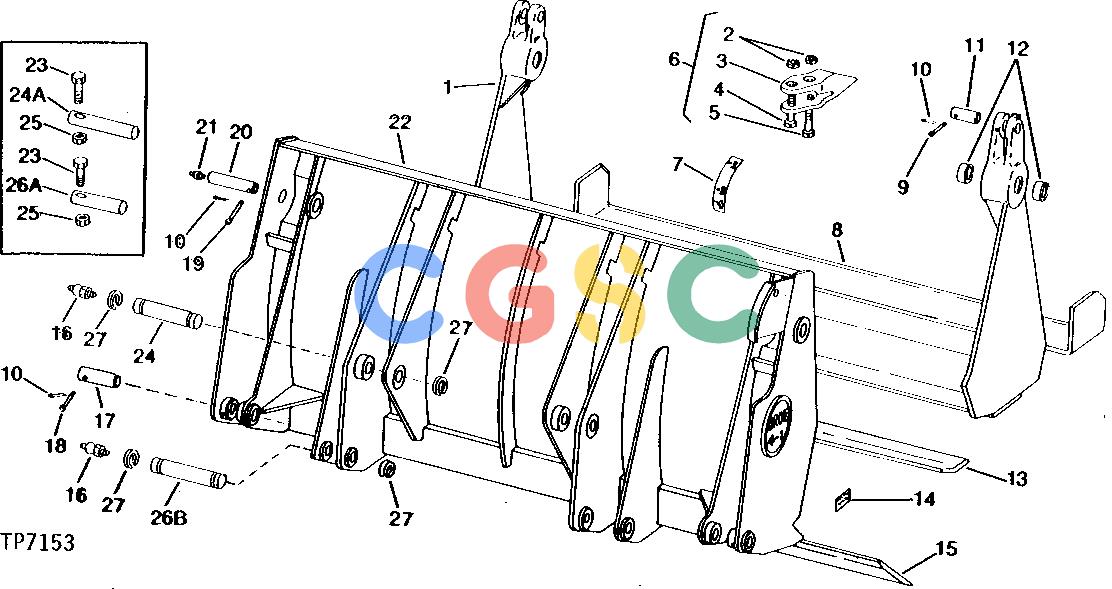

Pos.	Part No	Qty	Parts name	Comments
1.	S57144	[1]	Jaw	(A)
2.	S4224	[14]	Nut	(A) 1/2"
3.	S26446	[7]	Tooth	(A)
4.	S15674	[7]	Bolt	(A) 1/2" X 2"
5.	S15675	[7]	Bolt	(A) 1/2" X 2-1/4"
6.	S26445	[7]	Tooth	(A)
7.	S74236	[1]	Decals	(A)
8.	S209655	[1]	Cutting Edge	(A)
9.	S10784	[2]	Pin Fastener	(A) 3/8" X 3-1/16"
10.	S4627	[6]	Cotter Pin	(A) 1/8" X 2"
11.	S204122	[2]	Pin Fastener	(A)
12.	S23904	[4]	Bushing	(A)
13.	S79630	[1]	Cutting Edge	(A)
14.	S45226	[2]	Decals	(A)
15.	S79594	[1]	Cutting Edge	(A)
16.	T162396	[4]	Lubrication Fitting	1/8", STRAIGHT, (SUB FOR JD7759 OR JD7798)
17.	S67267	[2]	Pin Fastener	(A)
18.	S10778	[2]	Pin Fastener	(A) 3/8" X 2-3/4"
19.	S10786	[2]	Pin Fastener	(A) 3/8" X 3-1/2"
20.	S204178	[2]	Pin Fastener	(A)
21.	S12031	[1]	Fitting	(A)
22.	S601067	[1]	Blade	(A)
23.	19H2458	[4]	Cap Screw	3/8" X 3"
24A.	T34097	[2]	Pin
24B.	T40638	[2]	Pin
25.	T11234	[4]	Lock Nut
26A.	T31905	[2]	Pin
26B.	AT86429	[2]	Pin Fastener	(WITH GREASE FITTING) (SUB FOR T40637)
27.	U16068	[8]	Snap Ring
