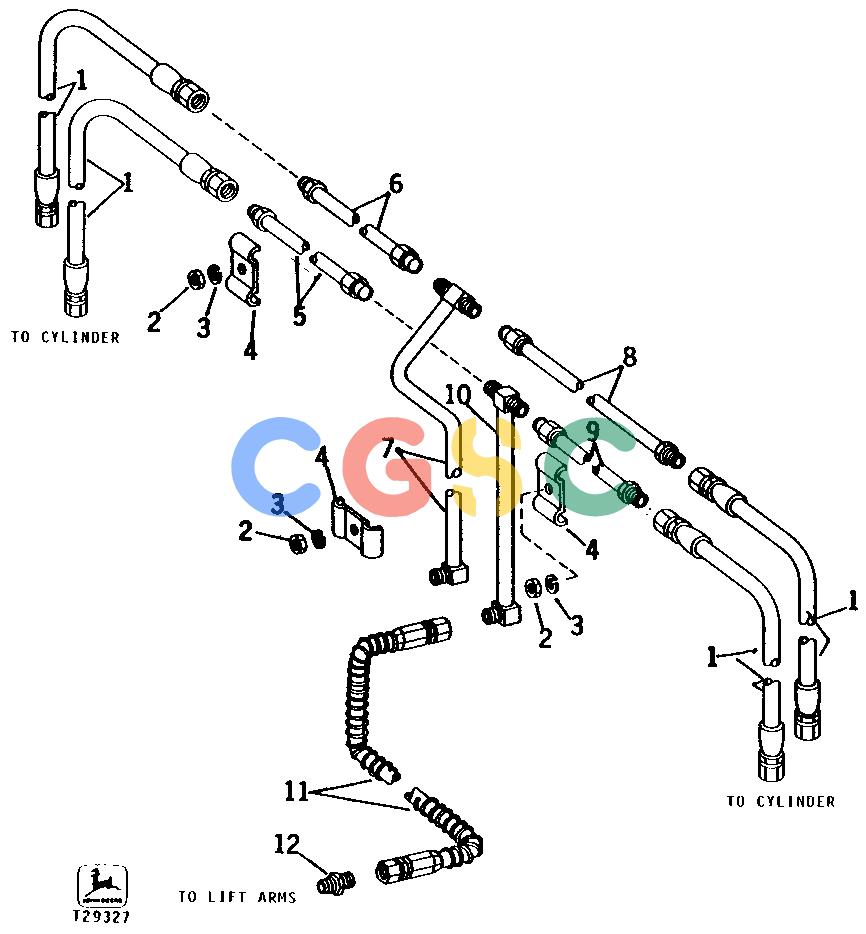

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | S11226 | [4] | Hose | (A) 508 MM LONG (3/8" X 20") |
| 2. | S4222 | [3] | Nut | (A) 3/8" |
| 3. | S4397 | [3] | Lock Washer | (A) 3/8" |
| 4. | S45067 | [3] | Clamp | (A) |
| 5. | S216299 | [1] | Oil Line | (A) LOWER, L.H. |
| 6. | S216296 | [1] | Oil Line | (A) UPPER, L.H. |
| 7. | S216294 | [1] | Oil Line | (A) L.H. |
| 8. | S216298 | [1] | Oil Line | (A) UPPER, R.H. |
| 9. | S216297 | [1] | Oil Line | (A) LOWER, R.H. |
| 10. | S216295 | [1] | Oil Line | (A) R.H. |
| 11. | S202752 | [2] | Oil Line | (A) 940 MM LONG (1/2" X 37") |
| 12. | S7710 | [2] | Fitting | (A) 7/8" X 1/2" |
