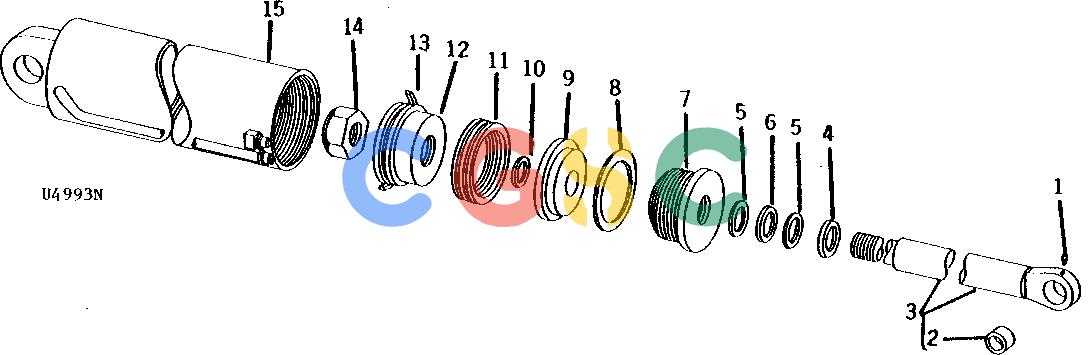

约翰迪尔零件查询410 - BACKHOE, LOADER CLAM CYLINDER (DROTT FOUR-IN-ONE BUCKET) [02F22]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
718 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
S46960
|
[1] |
Fitting
|
|
| 2. |
S46820
|
[1] |
Bushing
|
|
| 3. |
S206589
|
[1] |
Rod
|
|
| 4. |
S46869
|
[1] |
Seal
|
|
| 5. |
S6921
|
[2] |
Ring
|
|
| 6. |
S6165
|
[1] |
O-Ring
|
|
| 7. |
S46823
|
[1] |
Cylinder Head
|
|
| 8. |
S6321
|
[1] |
O-Ring
|
|
| 9. |
S60194
|
[1] |
Piston
|
|
| 10. |
S5807
|
[1] |
O-Ring
|
|
| 11. |
S27161
|
[1] |
Ring
|
|
| 12. |
S60192
|
[1] |
Piston
|
|
| 13. |
........
|
[1] |
Ring
|
|
| 14. |
S17160
|
[1] |
Nut
|
|
| 15. |
S206508
|
[1] |
Tube
|
|
| ... |
S55177
|
[2] |
Cylinder
|
|
