约翰迪尔零件查询410 - BACKHOE, LOADER STABILIZER [02G23]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 634 次

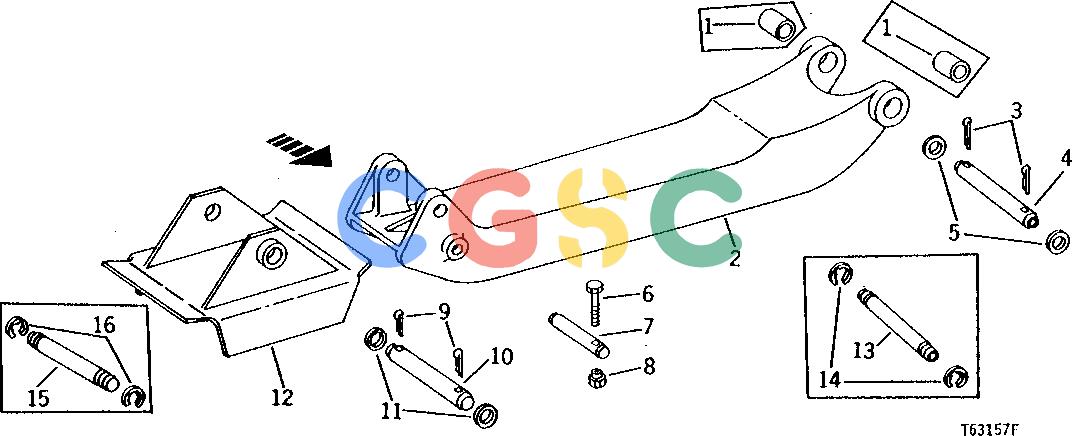

Pos.	Part No	Qty	Parts name	Comments
1.	T34301	[2]	Bushing	(USE WITH AT32805)
2.	T118932	[1]	Stabilizer	(SUB FOR AT32805 AND T40236) (USE IF AVAILABLE)
2.	T127794	[1]	Stabilizer	(SUB FOR T118932)
3.	11H227	[2]	Cotter Pin	3/8" X 3"
3.	11H227	[2]	Cotter Pin	3/8" X 3"
4.	T34485	[1]	Pin
4.	T34485	[1]	Pin
5.	24H1571	[2]	Washer	1-25/32" X 2-7/8" X 0.120"
5.	24H1571	[2]	Washer	1-25/32" X 2-7/8" X 0.120"
6.	19H3550	[2]	Cap Screw	1/2" X 4"
7.	T34560	[1]	Pin Fastener	(SUB T36880)
7.	T36880	[1]	Pin
8.	BP12214	[1]	Lock Nut	1/2", (SUB FOR U12622)
9.	11H223	[2]	Cotter Pin	3/8" X 2"
9.	11H223	[2]	Cotter Pin	3/8" X 2"
10.	T33681	[1]	Pin
10.	T33681	[1]	Pin
11.	24H1498	[2]	Washer	1-9/32" X 2-1/8" X 0.120"
11.	24H1498	[2]	Washer	1-9/32" X 2-1/8" X 0.120"
12.	T38032	[1]	Stabilizer Foot	(SUB FOR AT33646)
13.	T59444	[1]	Pin Fastener	(SUB T34485, (2) 11H227 AND (2) 24H1571)
14.	T59445	[2]	Snap Ring
15.	T59446	[1]	Pin Fastener	(SUB T33681, (2) 11H227 AND (2) 24H1571)
16.	T59447	[1]	Snap Ring
