约翰迪尔零件查询410 - BACKHOE, LOADER BACKHOE DIPPERSTICK [02H04]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 832 次

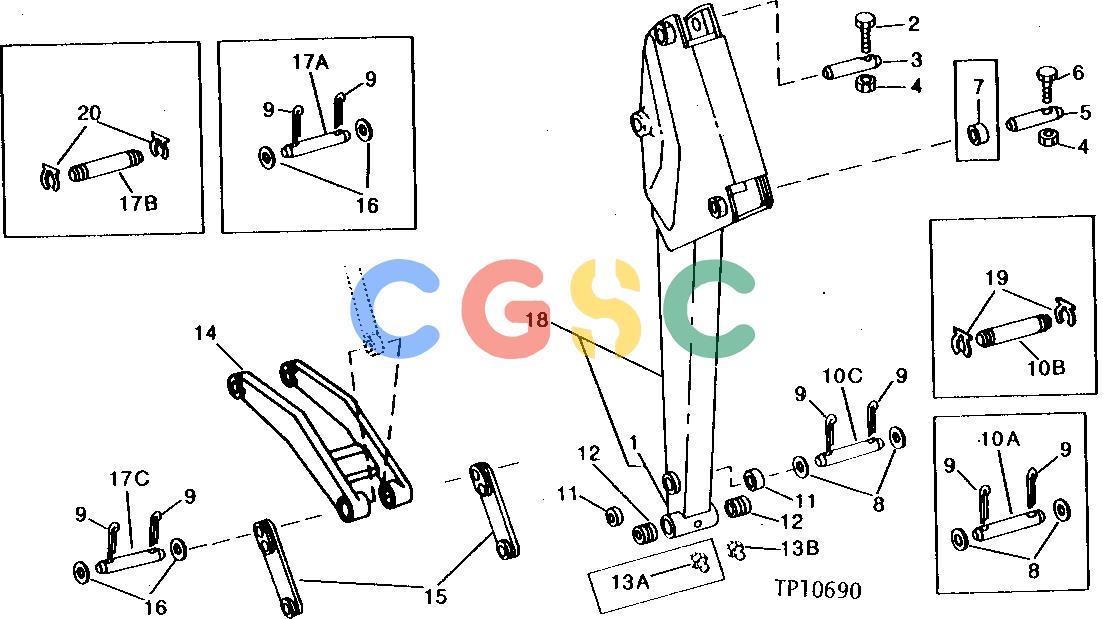

Pos.	Part No	Qty	Parts name	Comments
1.	T41314	[1]	Pivot	(A) (B)
2.	19H3550	[1]	Cap Screw	1/2" X 4"
3.	T34457	[1]	Pin
4.	BP12214	[2]	Lock Nut	(SUB FOR U12622)
5.	U15822	[1]	Pin
6.	19H1781	[1]	Cap Screw	HS, SAE 8, 1/2" X 3-1/2"
7.	T34423	[2]	Bushing	(A)
8.	U11649	[2]	Washer
8.	U11649	[2]	Washer
9.	11H221	[4]	Cotter Pin	3/8" X 2-1/2"
9.	11H221	[4]	Cotter Pin	3/8" X 2-1/2"
10A.	T34425	[1]	Pin
10B.	T61251	[1]	Pin Fastener	(SUB FOR T59448, THIS APPLICATION) (SUB T34425, (2) U11649 AND (2) 11H221)
10C.	T34425	[1]	Pin
11.	U11121	[2]	Bushing	(A) (B) (SUB FOR T34413)
12.	T34414	[2]	Bushing	(A)
12.	T34301	[2]	Bushing	(A)
13A.	JD7759	[2]	Lubrication Fitting	1/8", (SUB FOR JD7797, THIS APPLICATION)
13B.	JD7759	[1]	Lubrication Fitting	1/8"
14.	T39046	[1]	Link	(SUB FOR T34426)
15.	T34427	[2]	Link	(FOR 18", 24", 30", AND 36" BUCKET)
15.	T37187	[2]	Link	(FOR 12" AND 16" BUCKET)
16.	U11650	[2]	Washer
16.	U11650	[2]	Washer
17A.	T34428	[1]	Pin Fastener
17B.	T59449	[1]	Pin Fastener	(SUB T34428, (2) U11650 AND (2) 11H221)
17C.	T34428	[1]	Pin Fastener
18.	AT33454	[1]	Dipperstick	(A) (INCLUDES ALL PARTS IDENTIFIED BY (A) (SUB AT43199, T44275, 19H3169 AND U14555)
18.	AT43199	[1]	Dipperstick	(B) (INCLUDES ALL PARTS IDENTIFIED BY (B)
19.	T59452	[2]	Snap Ring
20.	T59445	[2]	Snap Ring
