约翰迪尔零件查询410 - BACKHOE, LOADER BACKHOE BOOM [02H03]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 288 次

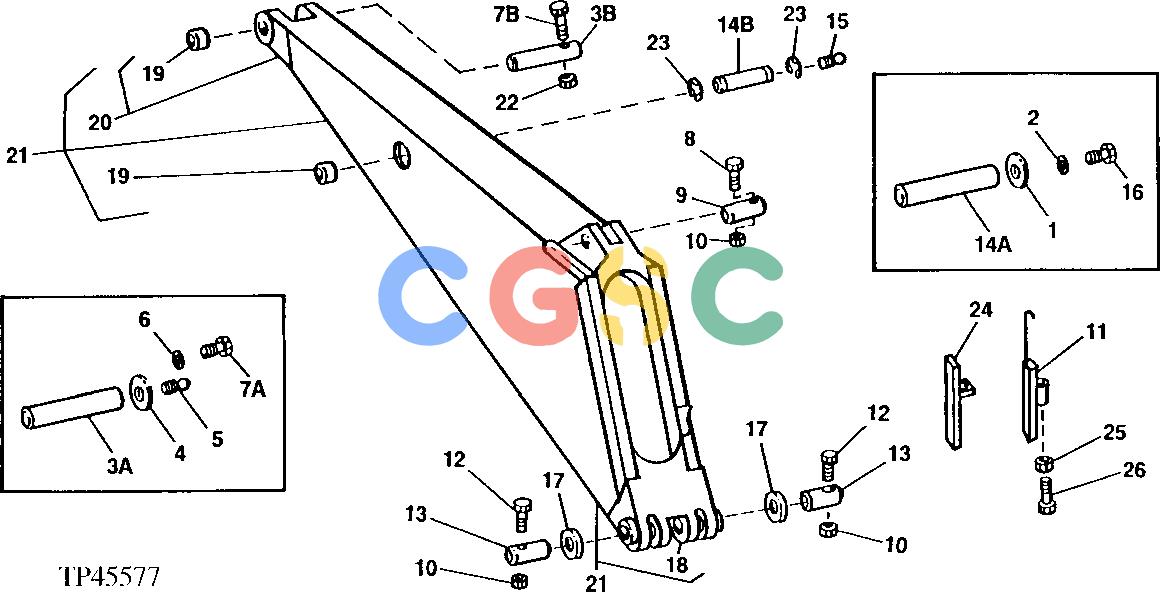

Pos.	Part No	Qty	Parts name	Comments
1.	T33945	[2]	Washer
2.	12H304	[4]	Lock Washer	3/8"
3A.	T33948	[1]	Pin	BOOM TO DIPPERSTICK
3B.	T44275	[1]	Pin Fastener
4.	T33945	[2]	Washer
5.	JD7797	[2]	Lubrication Fitting	1/4", STRAIGHT
6.	12H304	[4]	Lock Washer	3/8"
7A.	19H2676	[4]	Cap Screw	3/8" X 1"
7B.	19H3169	[4]	Cap Screw	5/8" X 4-1/4"
8.	19H2211	[1]	Cap Screw	1/2" X 5"
9.	T33947	[1]	Pin Fastener
10.	BP12214	[3]	Lock Nut	1/2", (SUB FOR U12622)
11.	AT150728	[1]	Pin Fastener	(SUB FOR T44022) (ALSO ORDER 19H3118 AND 14H1076) (SUB FOR U16970 AND T43740 THIS APPLICATION)
12.	19H3586	[2]	Cap Screw	1/2" X 4-1/4"
13.	T33946	[1]	Pin Fastener	(SUB T78848)
13.	T78848	[1]	Pin Fastener	(SUB FOR T38145)
14A.	T33944	[1]	Pin
14B.	T59456	[1]	Pin Fastener	(SUB T67060 AND (2) U15411)
14B.	T67060	[1]	Pin
15.	JD7797	[2]	Lubrication Fitting	1/4", STRAIGHT
16.	19H2676	[4]	Cap Screw	3/8" X 1"
17.	U11650	[2]	Washer
18.	T33930	[1]	Pivot	LOWER BOOM
19.	T33933	[4]	Bushing
20.	AT32991	[1]	Pivot	UPPER BOOM
21.	........	[1]	Backhoe Boom	(NOT SERVICED) (SUB FOR AT32989)
21.	........	[1]	Backhoe Boom	BOOM ( AT37500, NO LONGER AVAILABLE)
21.	........	[1]	Backhoe Boom	(NOT SERVICED) (SUB FOR AT58580)
22.	U14555	[1]	Lock Nut
23.	T59457	[2]	Snap Ring
23.	U15411	[2]	Snap Ring
24.	T37410	[1]	Lock
25.	14H1076	[1]	Nut	3/8"
26.	19H3118	[1]	Cap Screw	3/8" X 4-1/2"
