约翰迪尔零件查询410 - BACKHOE, LOADER OIL LINES AND FITTINGS (BACKHOE PRESSURE AND RETURN CIRCUITS) [02H16]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 707 次

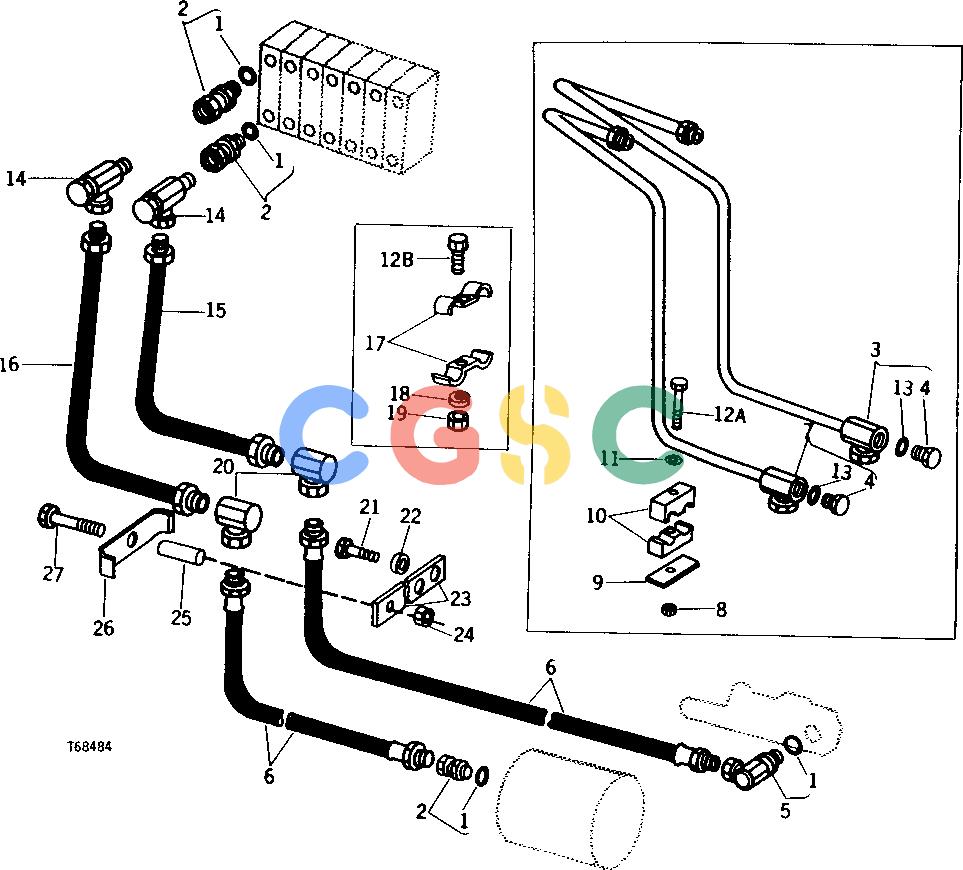

Pos.	Part No	Qty	Parts name	Comments
1.	U12547	[4]	O-Ring
2.	AU11654	[3]	Fitting	STRAIGHT
3.	AT32807	[1]	Tube	(SUB AT36774, AT36775, (2) AU41205, (2) L2296CU, (2) T35459, T11234 AND 24H1305)
4.	U13982	[2]	Fitting
5.	AU12366	[1]	Elbow Fitting
6.	AU13636	[2]	Hydraulic Hose - Fabricate	1016 MM LONG (3/4" X 40") (SUB FOR AU43892, THIS APPLICATION)
7.	AT32808	[1]	Tube	(SUB AT36774, AT36775, (2) AU41205, (2) L2296CU, (2) T35459, T11234 AND 24H1305)
8.	14H812	[1]	Nut	3/8"
9.	........	[1]	Strap	( T33713 NO LONGER AVAILABLE)
10.	U43450	[2]	Clamp
11.	12H304	[1]	Lock Washer	3/8"
12A.	03H2109	[1]	Bolt	3/8" X 3-1/4"
12B.	03H2109	[1]	Bolt	3/8" X 3-1/4"
13.	U12547	[2]	O-Ring
14.	AU41205	[2]	Elbow Fitting	(A)
15.	AT36774	[1]	Hydraulic Hose - Fabricate	(A) 781 MM LONG (3/4" X 30-3/4")
16.	AT36775	[1]	Hydraulic Hose - Fabricate	(A) 844 MM LONG (3/4" X 33-1/4")
17.	T35459	[2]	Clamp	(A)
18.	24H1305	[1]	Washer	(A) 13/32" X 13/16" X 0.065"
19.	T11234	[1]	Lock Nut	(A)
20.	L2296CU	[2]	Adapter Fitting	(A)
21.	19H1916	[2]	Cap Screw	5/8" X 1"
22.	24H1368	[2]	Washer	21/32" X 1-5/16" X 0.090"
23.	T66652	[1]	Strap
24.	BP12214	[1]	Lock Nut
25.	28H1600	[1]	Spacer	1/2" X 1.000"
26.	U44385	[1]	Clamp
27.	19H1820	[1]	Cap Screw	1/2" X 3"
