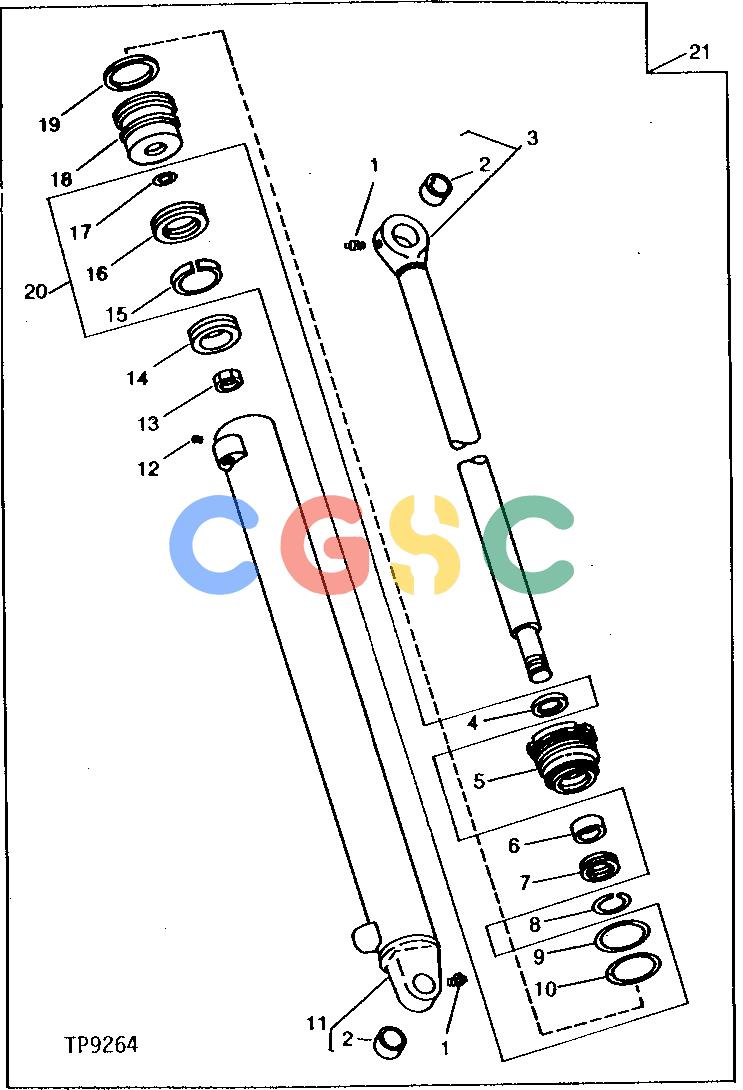

约翰迪尔零件查询410 - BACKHOE, LOADER REPLACEMENT BACKHOE CROWD CYLINDER [02I05]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
451 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
JD7759
|
[2] |
Lubrication Fitting
|
|
| 2. |
T33659
|
[2] |
Bushing
|
|
| 3. |
AT32784
|
[1] |
Bushing
|
|
| 4. |
U11022
|
[1] |
Seal
|
|
| 5. |
R80944
|
[1] |
Guide
|
|
| 6. |
U42716
|
[1] |
Wear Ring
|
|
| 7. |
R76790
|
[1] |
Packing
|
|
| 8. |
W11229
|
[1] |
Ring
|
|
| 9. |
R79001
|
[1] |
Back-Up Ring
|
|
| 10. |
P46765
|
[1] |
O-Ring
|
|
| 11. |
AR90638
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 12. |
22H1077
|
[1] |
Set Screw
|
|
| 13. |
U10750
|
[1] |
Lock Nut
|
|
| 14. |
U17348
|
[1] |
Piston
|
|
| 15. |
U17225
|
[1] |
Wear Ring
|
|
| 16. |
RE11905
|
[1] |
Seal
|
|
| 17. |
U10289
|
[1] |
O-Ring
|
|
| 18. |
R78225
|
[1] |
Piston
|
|
| 19. |
U45231
|
[1] |
Piston Ring
|
|
| 20. |
RE18764
|
[1] |
Hydraulic Cylinder Kit
|
|
| 21. |
........
|
[1] |
Hydraulic Cylinder
|
|
