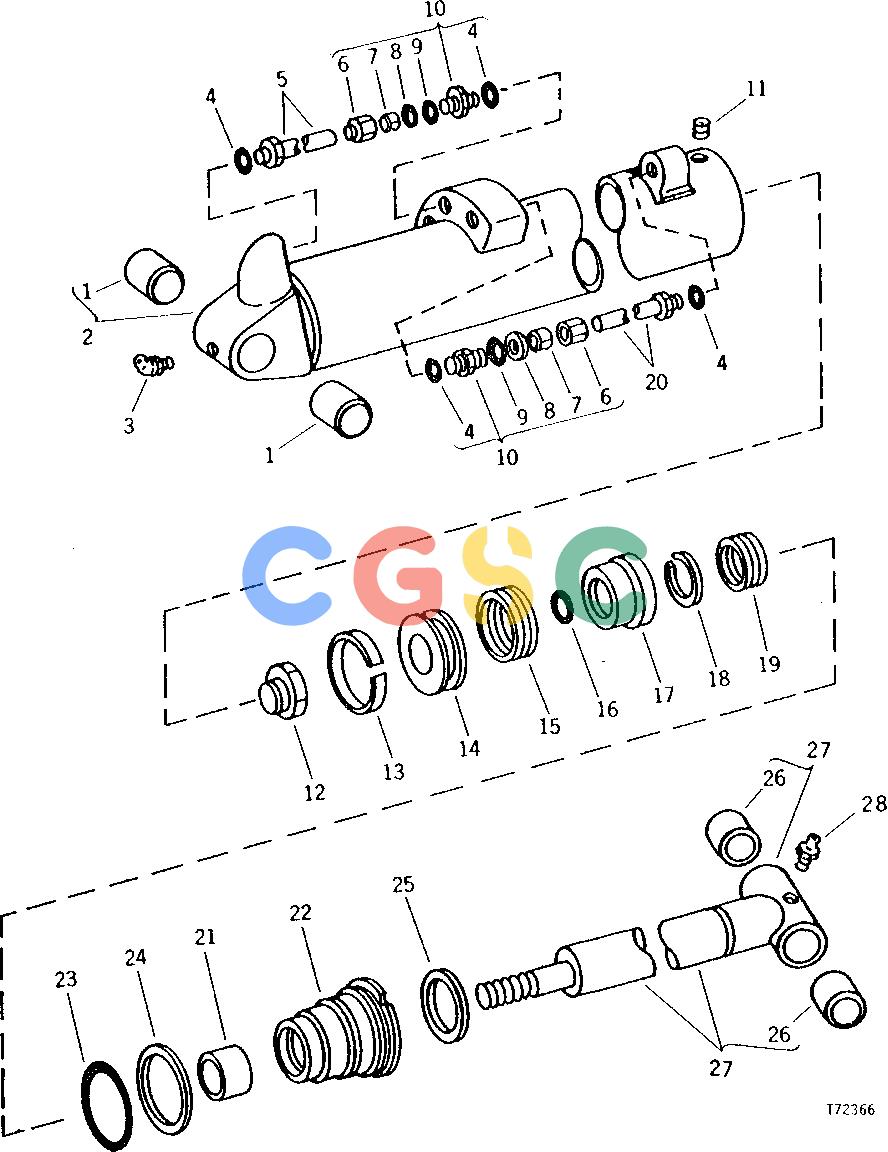

约翰迪尔零件查询410 - BACKHOE, LOADER BACKHOE BUCKET CYLINDER (SERIAL NO. -335230) [02I07]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 569 次

Pos.	Part No	Qty	Parts name	Comments
1.	U10666	[2]	Bushing
2.	AT52499	[1]	Hydraulic Cylinder Barrel	(SUB AR90637, AT63290, T66715, AC15595, AT35393 WITHOUT EXTENDIBLE DIPPERSTICK OR AT63293 WITH EXTENDIBLE DIPPERSTICK, AU11753 (2) R26906 AND R27270, THIS APPLICATION)
3.	JD7763	[1]	Lubrication Fitting	1/4"
4.	R26906	[4]	O-Ring	(A)
5.	AT32779	[1]	Line
6.	........	[1]	Adapter Fitting	(SUB AU42120)
7.	U42972	[2]	Sleeve
8.	U42974	[2]	Back-Up Ring
9.	R375R	[2]	O-Ring
10.	AU42120	[2]	Adapter Fitting	STRAIGHT
11.	22H842	[1]	Set Screw	1/4" X 5/16"
12.	L2235CU	[1]	Lock Nut
13.	U17217	[1]	Wear Ring	(A)
14.	T36039	[1]	Piston
15.	T38193	[1]	Packing	(A) (SUB FOR U12967, THIS APPLICATION) (SUB FOR R72827)
16.	R29463	[1]	O-Ring	(A)
17.	U17219	[1]	Piston
18.	W11229	[1]	Ring
19.	R76790	[1]	Packing	(A) (SUB FOR T35851)
20.	AT32780	[1]	Line
21.	U41822	[1]	Wear Ring	(A)
22.	T33653	[1]	Guide	(SUB F1430R, R79101 AND R80919)
22.	R80919	[1]	Guide	(SUB FOR T57006)
23.	U10776	[1]	O-Ring	(A)
23.	F1430R	[1]	O-Ring	(A)
24.	R78993	[1]	Back-Up Ring	(A) (SUB FOR U10777, THIS APPLICATION)
24.	R79101	[1]	Back-Up Ring	(A) (SUB FOR T42045, THIS APPLICATION)
25.	U11022	[1]	Seal	(A)
26.	T25898	[2]	Bushing
27.	AT32777	[1]	Hydraulic Cylinder Rod
28.	JD7759	[1]	Lubrication Fitting	1/8", STRAIGHT
...	AT32774	[1]	Cylinder	(SUB RE12720, AT63290, T66715, AC15595, AT35393 AND R27270 WITHOUT EXTENDIBLE DIPPERSTICK OR AT63293 WITH EXTENDIBLE DIPPERSTICK, THIS APPLICATION)
...	AT36833	[1]	Kit	(SUB FOR AT35937)
