约翰迪尔零件查询410 - BACKHOE, LOADER BACKHOE EXTENDIBLE DIPPERSTICK EXTENSION (SERIAL NO. -372783) [02J13]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 275 次

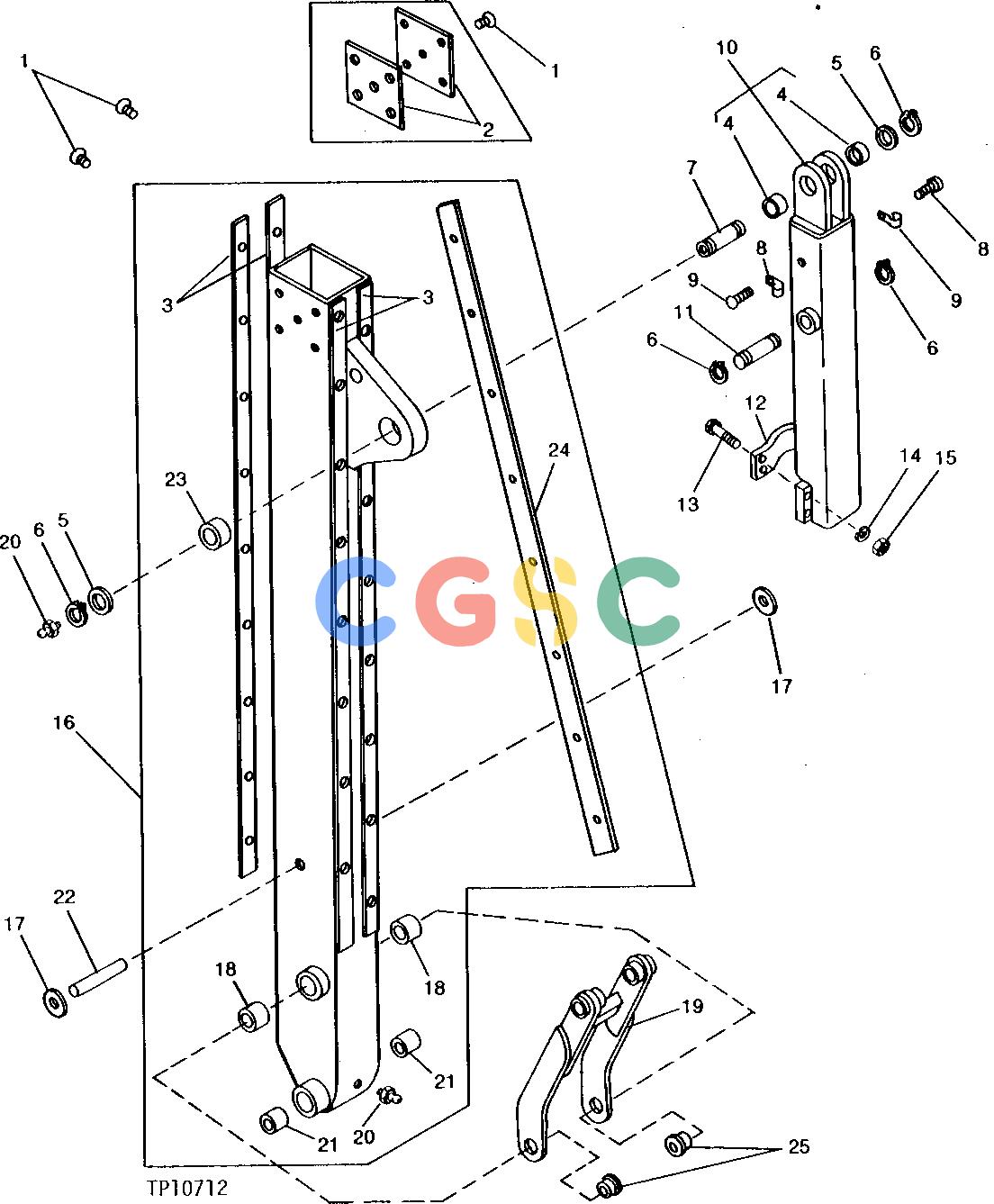

Pos.	Part No	Qty	Parts name	Comments
1.	T51847	[50]	Screw	(USED WITH T51892 AND T51893 ONLY)
2.	T51893	[2]	Plate	ALUMINUM (SUB T72859)
3.	T51892	[2]	Strip	ALUMINUM
3.	T72859	[4]	Strap	BRASS (WELDED)
4.	T51860	[2]	Bushing
5.	U11649	[2]	Washer
6.	U16068	[4]	Snap Ring	(SUB FOR T51843)
7.	T51887	[1]	Pin
8.	T26955	[2]	Clamp	(SUB FOR T51856)
9.	19H2263	[2]	Cap Screw	3/8" X 1"
10.	AT50194	[1]	Extension
11.	T51888	[1]	Pin Fastener
12.	T55466	[1]	Bracket	(SUB FOR AT50198)
13.	19H1820	[4]	Cap Screw	1/2" X 3"
14.	12H301	[4]	Lock Washer	1/2"
15.	14H1040	[4]	Nut	1/2"
16.	........	[1]	Extension	USE AT50196 IF AVAILABLE
16.	AT82871	[1]	Extension	(SUB FOR AT50196)
17.	H35226	[2]	Snap Ring	(SUB FOR U11027)
18.	T51857	[2]	Bushing
19.	AT83887	[1]	Link	(SUB FOR AT50193 AND AT77364)
20.	JD7759	[2]	Lubrication Fitting	1/8", STRAIGHT
21.	T51859	[2]	Bushing
22.	B28568	[1]	Dowel Pin	(SUB FOR T51896 AND T51858)
23.	T51895	[1]	Bushing
24.	T51892	[2]	Strip	ALUMINUM (SUB T72859)
24.	T72858	[4]	Strap	BRASS (WELDED) (SUB FOR T72859, THIS APPLICATION)
25.	T75136	[2]	Bushing
