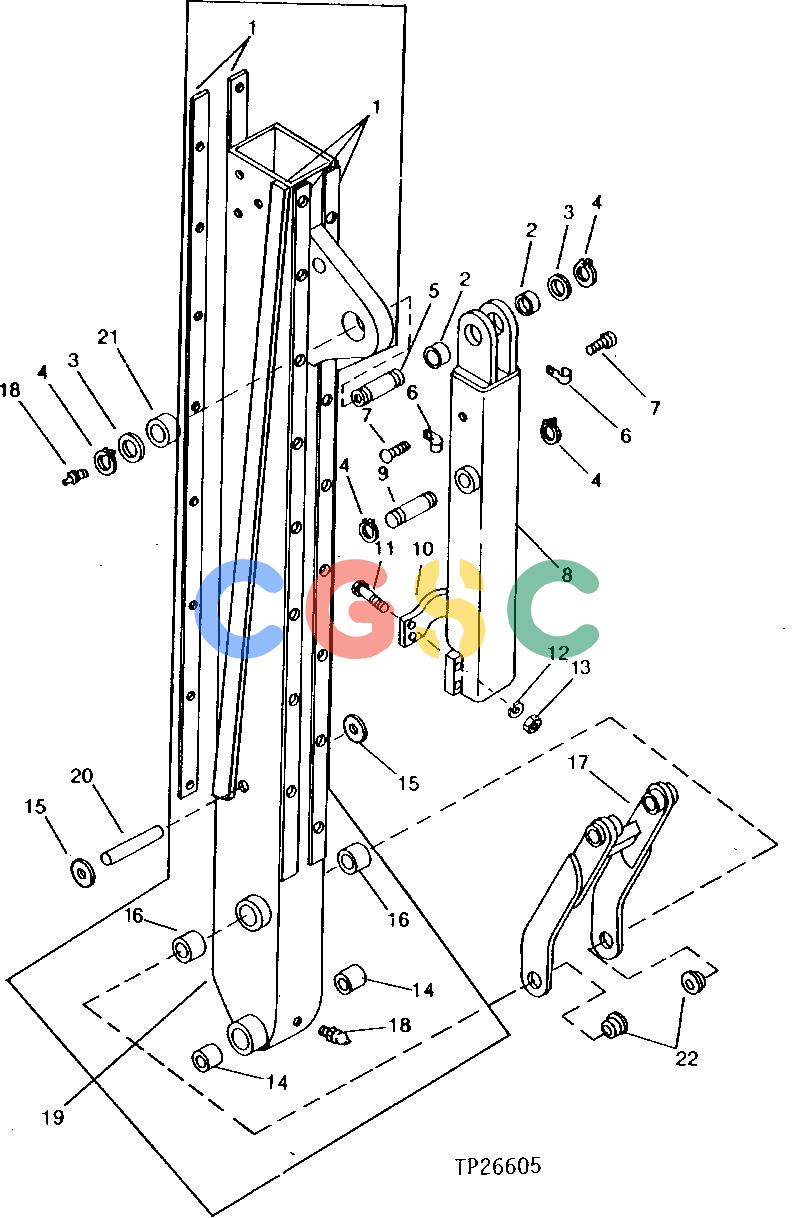

约翰迪尔零件查询410 - BACKHOE, LOADER BACKHOE EXTENDIBLE DIPPERSTICK EXTENSION (SERIAL NO. 372784- ) [02J15]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
370 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T72859
|
[6] |
Strap
|
|
| 2. |
T51860
|
[2] |
Bushing
|
|
| 3. |
U11649
|
[2] |
Washer
|
|
| 4. |
U16068
|
[4] |
Snap Ring
|
|
| 5. |
T51887
|
[1] |
Pin
|
|
| 6. |
T26955
|
[2] |
Clamp
|
|
| 7. |
19H2263
|
[2] |
Cap Screw
|
|
| 8. |
AT50194
|
[1] |
Extension
|
|
| 9. |
T51888
|
[1] |
Pin Fastener
|
|
| 10. |
T55466
|
[1] |
Bracket
|
|
| 11. |
19H1820
|
[4] |
Cap Screw
|
|
| 12. |
12H301
|
[4] |
Lock Washer
|
|
| 13. |
14H1040
|
[4] |
Nut
|
|
| 14. |
T51859
|
[2] |
Bushing
|
|
| 15. |
H35226
|
[2] |
Snap Ring
|
|
| 16. |
T51857
|
[2] |
Bushing
|
|
| 17. |
AT50193
|
[1] |
Guide
|
|
| 18. |
JD7759
|
[2] |
Lubrication Fitting
|
|
| 19. |
........
|
[1] |
Extension
|
|
| 19. |
AT82871
|
[1] |
Extension
|
|
| 20. |
B28568
|
[1] |
Dowel Pin
|
|
| 21. |
T51895
|
[1] |
Bushing
|
|
| 22. |
T75136
|
[2] |
Bushing
|
|
