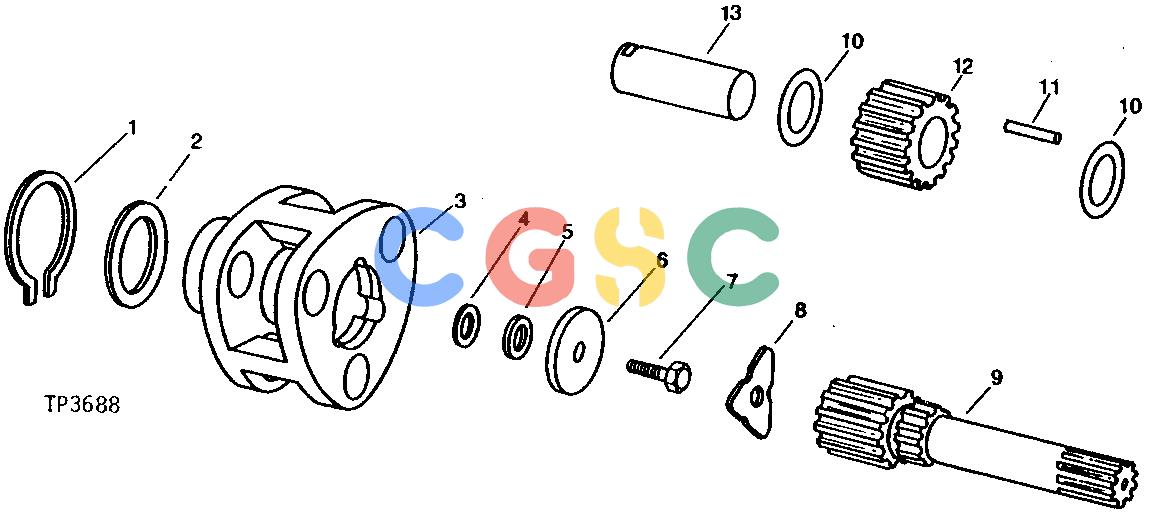

约翰迪尔零件查询410B - BACKHOE, LOADER PLANETARY PINION CARRIER (SERIAL NO. 704002- ) [01B18]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
352 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T152979
|
[1] |
Ring
|
|
| 2. |
T66908
|
[1] |
Shim
|
|
| 3. |
T66909
|
[1] |
Planet Pinion Carrier
|
|
| 4. |
........
|
[2] |
Shim
|
|
| 4. |
........
|
[6] |
Shim
|
|
| 5. |
T55420
|
[1] |
Washer
|
|
| 6. |
T66912
|
[1] |
Washer
|
|
| 7. |
19H3169
|
[1] |
Cap Screw
|
|
| 8. |
T66913
|
[1] |
Lock Plate
|
|
| 9. |
T66916
|
[1] |
Pinion Shaft
|
|
| 9. |
T66917
|
[1] |
Pinion Shaft
|
|
| 10. |
T141566
|
[6] |
Thrust Washer
|
|
| 11. |
T21418
|
[69] |
Pin
|
|
| 12. |
T66910
|
[3] |
Pinion
|
|
| 13. |
........
|
[3] |
Pinion Shaft
|
|
| 13. |
T149083
|
[3] |
Shaft
|
|
