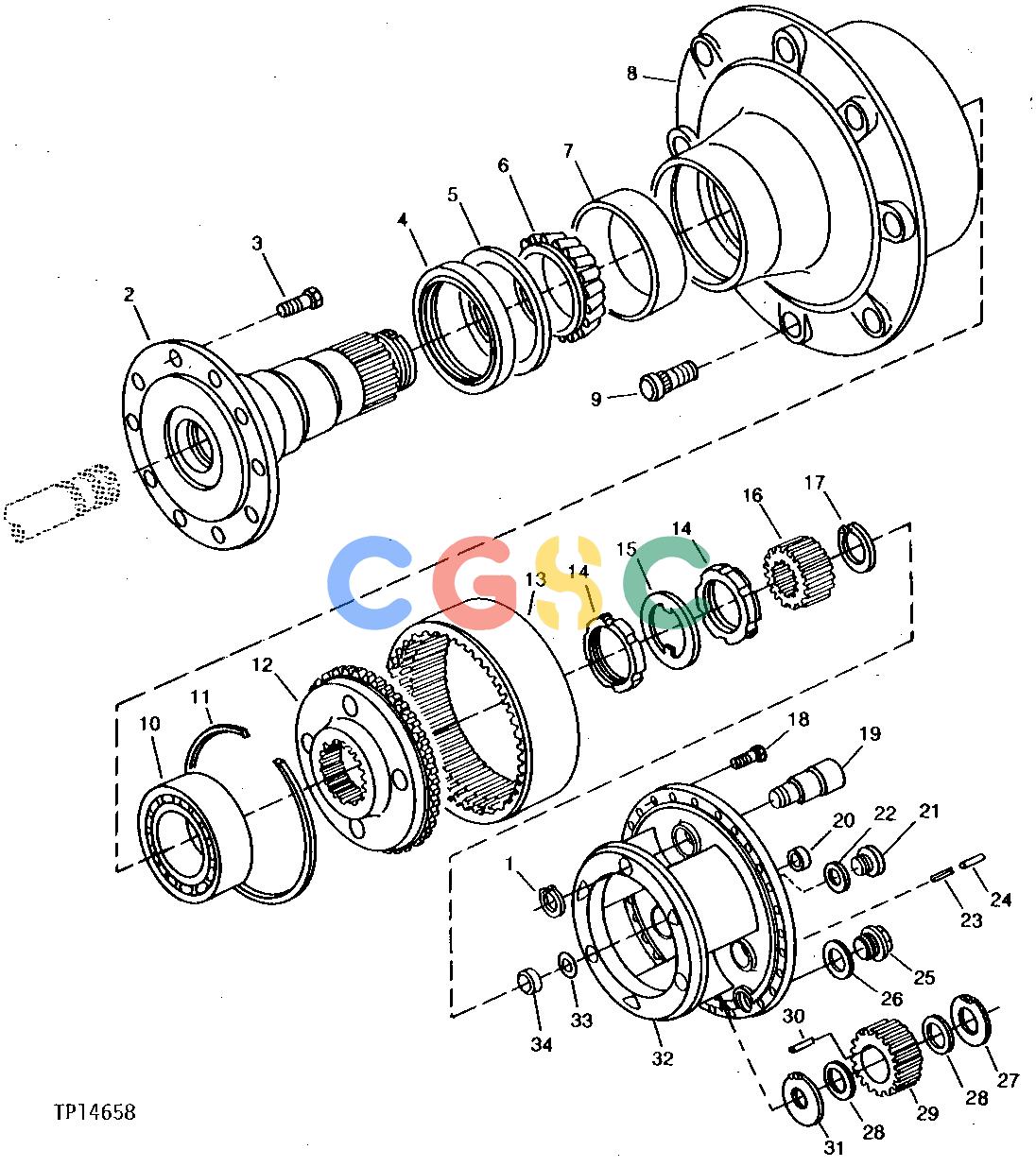

Pos.	Part No	Qty	Parts name	Comments
1.	40M7080	[6]	Snap Ring	20 X 1.2MM
2.	AT78497	[2]	Planet Pinion Carrier	(SUB FOR AL33351)
3.	19M7877	[24]	Cap Screw	M14 X 30
4.	AL32997	[2]	Seal
5.	L35763	[2]	Washer
6.	JD8946	[2]	Bearing Cone
7.	JD7272	[2]	Bearing Cup
8.	L35764	[2]	Hub	(A)
9.	L35619	[16]	Wheel Bolt
10.	JD10096	[2]	Tapered Roller Bearing	(RACE AND TAPERED BEARING SET)
11.	40M7079	[2]	Snap Ring	170 X 2.5MM
12.	T113172	[2]	Gear	(SUB FOR L35735) RING
13.	T113171	[2]	Ring Gear	(SUB FOR L35736) INTERNAL
14.	52M7013	[4]	Nut	M50, (SUB FOR T78879)
15.	L35760	[2]	Plate
16.	T113174	[2]	Gear	(SUB FOR L35734) SUN
17.	40M7081	[2]	Snap Ring	32 X 2MM
18.	19M7513	[54]	Cap Screw	M8 X 30
19.	L35731	[6]	Pin Fastener
20.	30M7004	[2]	Plug
21.	T113570	[2]	Drain Plug	(SUB FOR 15M7025, THIS APPLICATION)
22.	51M4240	[2]	Sealing Ring
23.	34M7224	[8]	Spring Pin	8 X 26 MM
24.	34M7102	[8]	Spring Pin	5 X 26 MM
25.	T113569	[2]	Drain Plug	(SUB FOR L35596, THIS APPLICATION)
26.	51M7018	[2]	Sealing Ring	24 X 29MM
27.	L35591	[6]	Thrust Washer
28.	L35590	[12]	Washer
29.	T113173	[6]	Planet Pinion	(SUB FOR L35732) PLANET
30.	L35739	[132]	Needle
31.	L35733	[6]	Washer
32.	L35730	[2]	Planet Pinion Carrier
33.	L35593	[2]	Washer	1.0MM (.039")
33.	L35594	[AR]	Shim	0.5MM (.019")
33.	L35595	[AR]	Shim	0.3MM (.012")
34.	L35592	[6]	Dowel Pin
