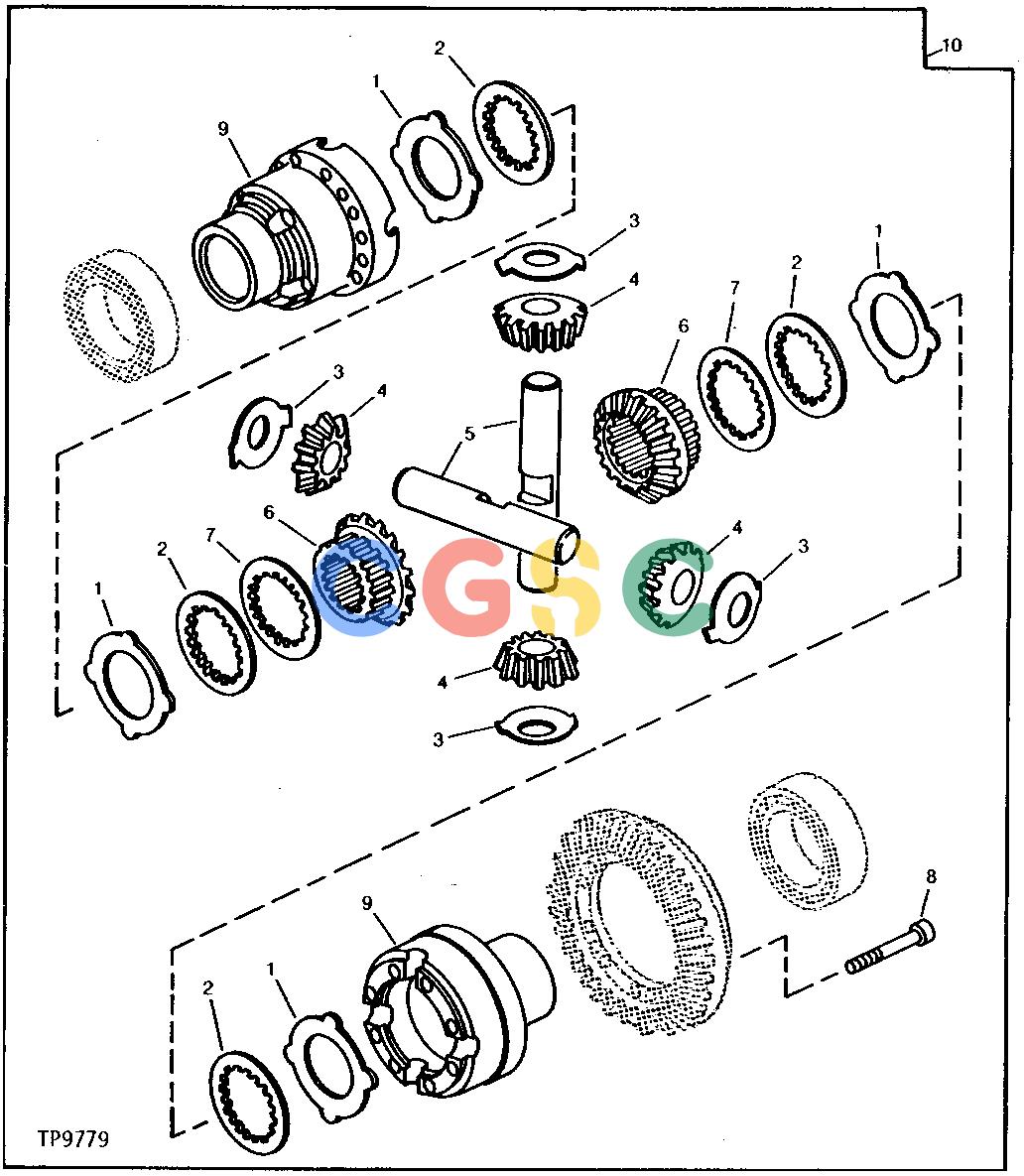

约翰迪尔零件查询410B - BACKHOE, LOADER DIFFERENTIAL LOCK (MECHANICAL FRONT WHEEL DRIVE) [01B23]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
249 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
L62419
|
[AR] |
Disk With Outer Spline
|
|
| 1. |
L35577
|
[AR] |
Disk With Outer Spline
|
|
| 1. |
L62420
|
[AR] |
Disk With Outer Spline
|
|
| 2. |
L35578
|
[8] |
Disk
|
|
| 3. |
L35584
|
[4] |
Thrust Washer
|
|
| 4. |
L35583
|
[4] |
Bevel Gear
|
|
| 5. |
L35725
|
[2] |
Shaft
|
|
| 6. |
T82538
|
[2] |
Gear
|
|
| 7. |
L63828
|
[AR] |
Disk With Inner Spline
|
|
| 8. |
19M7876
|
[12] |
Screw
|
|
| 9. |
T77449
|
[1] |
Case
|
|
| 10. |
AT78496
|
[1] |
Differential
|
|
